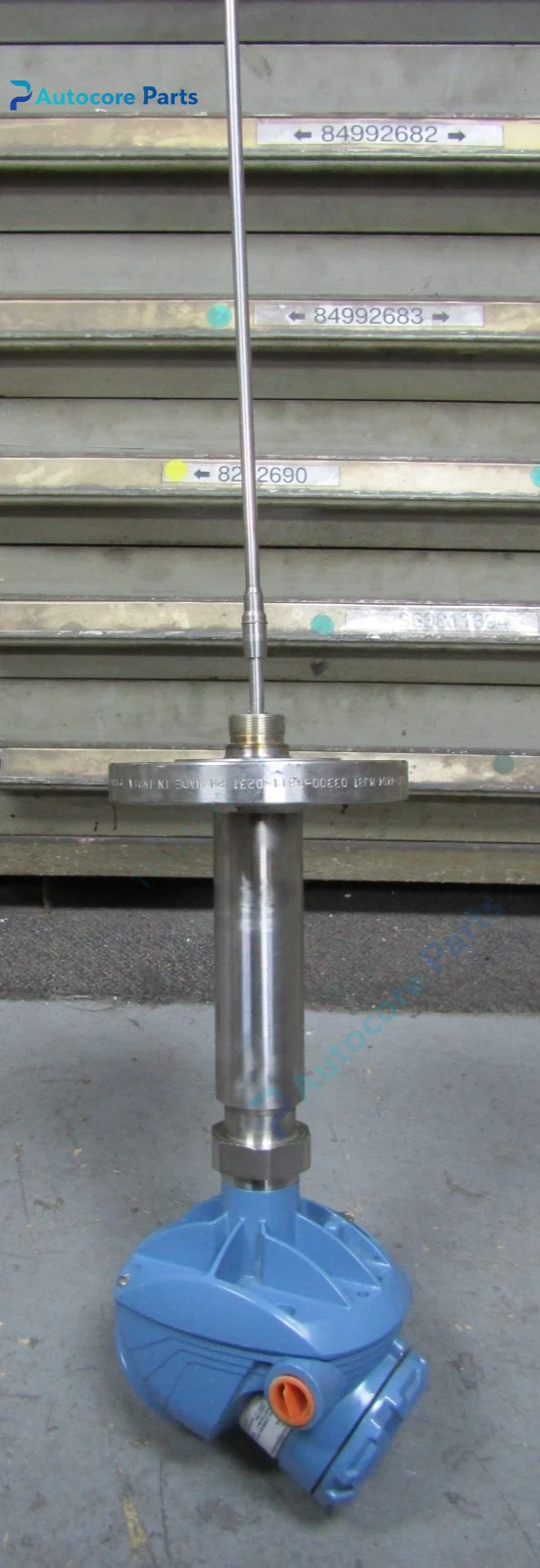

Rosemount 5302HA1H1N4AE00600EBE5M1 Radar Level Transmitter

Module Feature

5302HA1H1N4AE00600EBE5M1 is Rosemount 5302 guided wave radar transmitter. It measures liquid level and liquid‑liquid interface, suitable for low‑dielectric media, foam and viscous fluid. It supports 4‑20mA HART communication with built‑in diagnostic function and SIL2 certification. Widely used for tanks and separators in petrochemical industry.

Working principle

Microwave pulses travel along probe and reflect at medium surface or phase boundary. Transmitter calculates distance by time‑of‑flight. Measurement value is converted to 4‑20mA signal, and HART transmits diagnostic data over two‑wire loop. Measurement is independent of temperature, pressure and viscosity changes.

Onboard components

Radar electronic module, HART circuit, optional LCD display, flange base, coaxial probe, two‑wire terminal block, explosion‑proof housing and sealing gaskets.

LED indicators

No standalone LED. Process values and fault codes are displayed on local LCD. Fault data can also be read via HART communicator or DCS.

Hardware self‑diagnosis

Monitor echo and signal quality, detect probe build‑up, over‑range alarm, read fault codes through HART, check loop power supply and communication status.

Programming software

Configure via AMS software or HART handheld communicator. Local keypad supports on‑site parameter setup.

Electrical & Process Parameters

Model:5302HA1H1N4AE00600EBE5M1 Brand:Rosemount Device type:Guided Wave Radar Level‑Interface Transmitter Output:4‑20 mA + HART Power:Two‑wire loop supply Function:Tank liquid level and interface continuous measurement

Mechanical & Structure

Mounting:Top flange mounting Protection class:IP66 / NEMA 4X Housing:Aluminum alloy explosion‑proof housing

Environmental

Operating temperature:-40℃ ~ +150℃ Storage temperature:-55℃ ~ +85℃ Ambient humidity:0~100% non‑condensing Certification:SIL2, hazardous area approvals Status: Rosemount original 5302 series radar transmitter

Installation

Mount transmitter on tank top with matching flange. Keep probe away from tank internal obstacles. Connect shielded two‑wire cable. Complete parameter configuration, set measuring range and verify measurement output.

Interface

Flange process connection, coaxial guided‑wave probe, signal wiring terminals, optional local display, HART communication interface.

Diagnostic

Unstable reading: probe coating, foam or false echoes. No valid echo: probe damage or wrong threshold setting. Communication loss: cable fault or poor terminal contact.

Product Brief

Rosemount 5302HA1H1N4AE00600EBE5M1 guided wave radar transmitter, provides reliable level and interface measurement for industrial tanks and separators.
