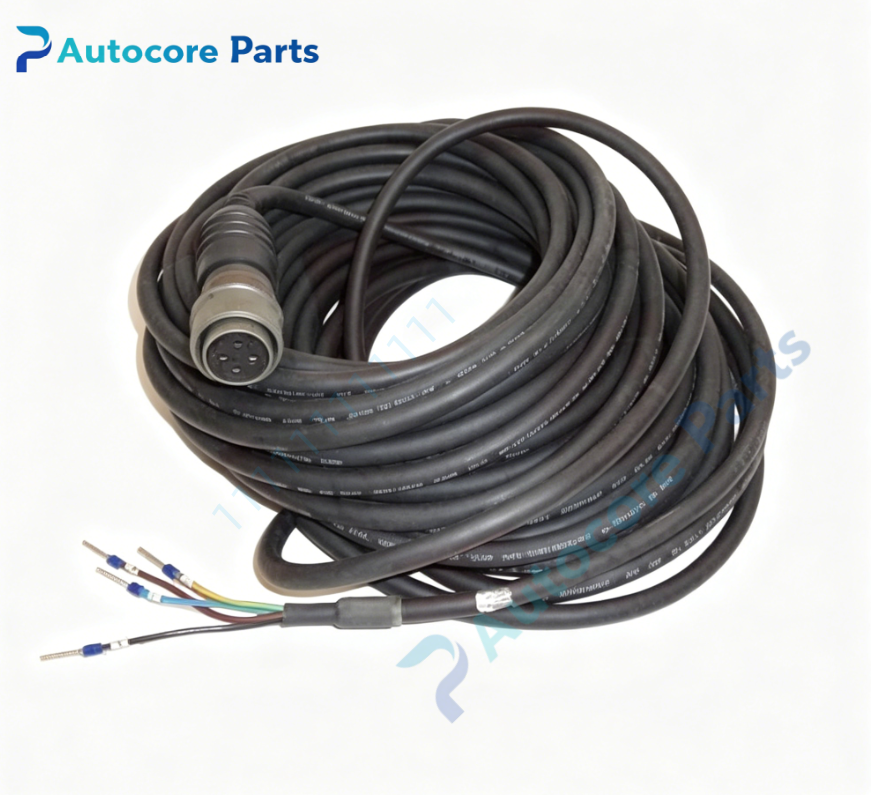

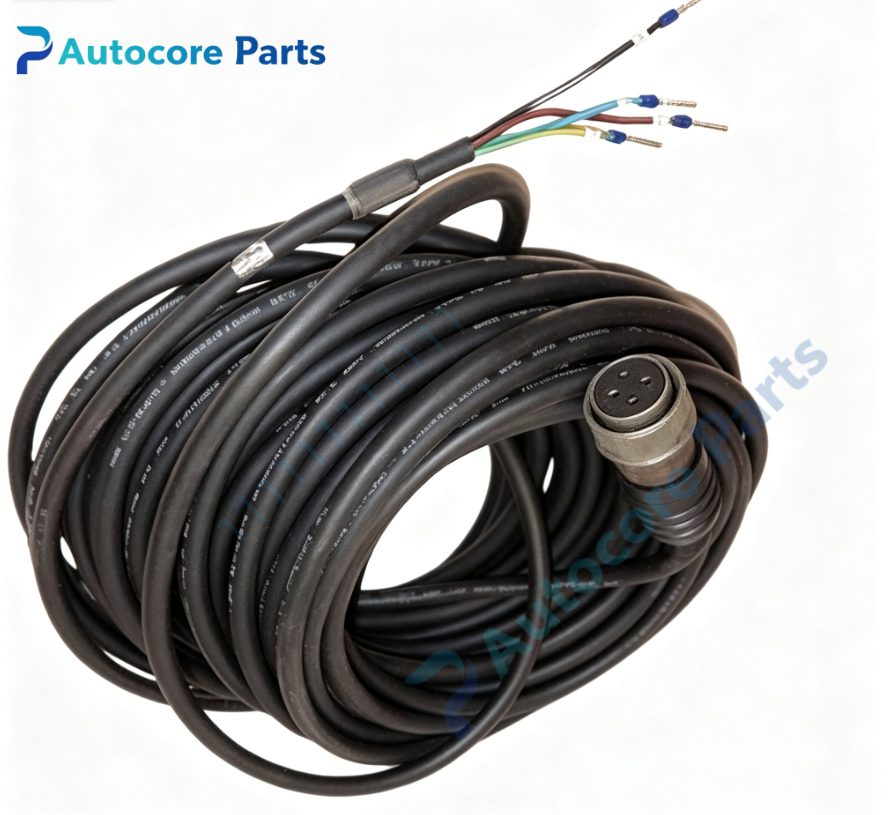

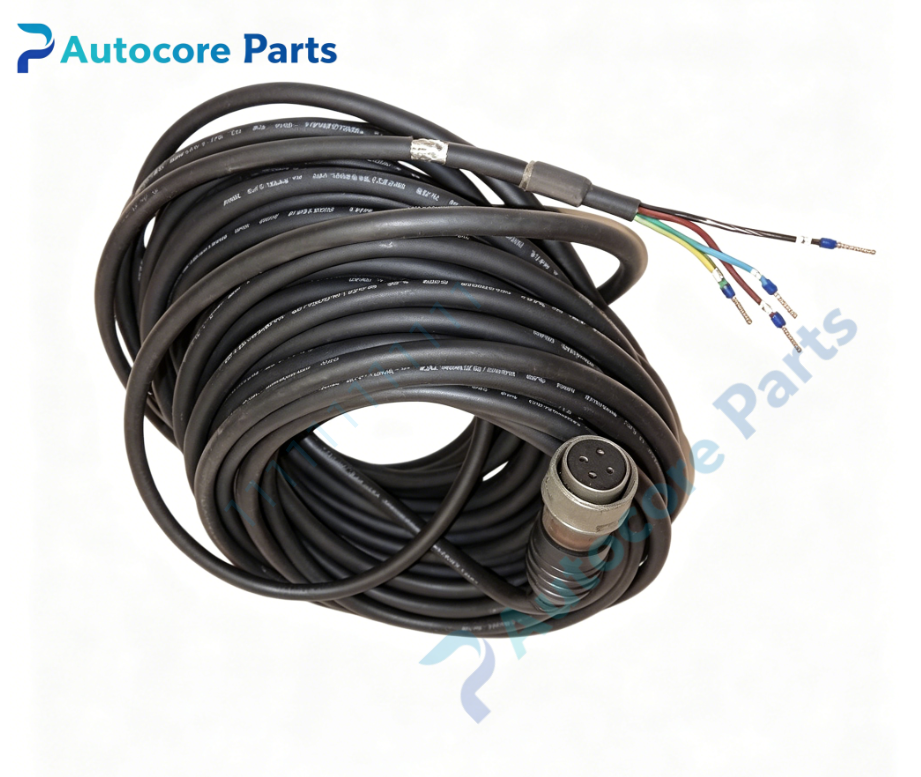

Rockwell Automation 9101-1382-075 Servo Power Cable Assembly

Technical Specifications

Model： 9101-1382-075

Brand： Rockwell Automation

Product Type: Shielded servo motor power cable assembly for 1398-DDM ULTRA200 servo drive system

Module Feature:

Function: Servo power cable assembly for Rockwell ULTRA200 platform. Transmits main power from 1398-DDM-075 servo amplifier to F / H series feed servo motor. Shielded construction suppresses electromagnetic interference, stable power delivery for machine feed axes on heavy horizontal boring mills and machining centers.

Cable type: Multi-core shielded servo power cable Matched Drive: 1398-DDM-075 / 1398-DDM-075X Matched Motor: Rockwell F-series, H-series servo motors

Onboard components: Tinned copper conductors, cross-linked insulation, overall copper braid shield, molded cable connectors at both ends, strain relief structure

LED indicators: Not applicable (Cable assembly)

Hardware self-diagnosis: Continuity test, insulation resistance test, shield integrity inspection

Programming software: No programming required

Electrical Parameters

Voltage rating: 600V Conductor specification: Multi-core power conductors

Mechanical & Structure:

Installation: Fixed routing inside machine cabinet / machine body Weight: Depends on custom length Outer jacket: Oil resistant, flame retardant PVC

Bending radius: ≥8 × cable outer diameter

Protection class: IP20 (connector side)

Environmental:

Operating temperature: -20℃ ~ +80℃

Ambient humidity: 5~85% non-condensing

Certification: CE, UL

Status: Manufacturer discontinued legacy ULTRA200 servo cable assembly

System compatibility

Compatibility description: 9101-1382-075 belongs to Rockwell ULTRA200 servo accessory family. Designed for 1398-DDM-075 / 075X servo drives, matched with F and H series servo motors. Widely used on Fives Giddings & Lewis heavy CNC boring mills.

Function

Function description: 9101-1382-075 is ready-made shielded servo power cable manufactured by Rockwell Automation. It connects ULTRA200 1398-DDM-075 servo amplifier to servo motor, delivering three-phase motor power. The full copper braid shield reduces electromagnetic noise generated by high-speed PWM switching, preventing interference to encoder feedback and CNC control signals. Oil resistant outer jacket adapts to workshop coolant and oil mist environment. It is legacy servo power wiring spare for heavy CNC boring mills.

Installation

Installation steps: Follow lockout/tagout safety procedure before installation. Cut off high voltage power of servo drive. Disconnect old cable connectors at servo amplifier and motor end. Route 9101-1382-075 cable, avoid parallel routing with encoder signal cable. Secure connectors and cable clamps. Check insulation resistance. Restore power, test motor jogging and monitor drive alarm status.

Interface

Interface list: Servo amplifier power connector, servo motor power connector for Rockwell 9101-1382-075.

Diagnostic

Troubleshooting: Motor no rotation: Check cable continuity, connector pin looseness or wire breakage. Drive overcurrent alarm: Cable insulation breakdown, short circuit inside cable. Intermittent axis fault: Shield damage, poor grounding or connector corrosion.

Product Brief

Brief description: 9101-1382-075 is Rockwell Automation discontinued ULTRA200 servo power cable,for 1398-DDM-075 drive to F/H servo motor power connection on heavy CNC boring mills,legacy servo wiring spare.
