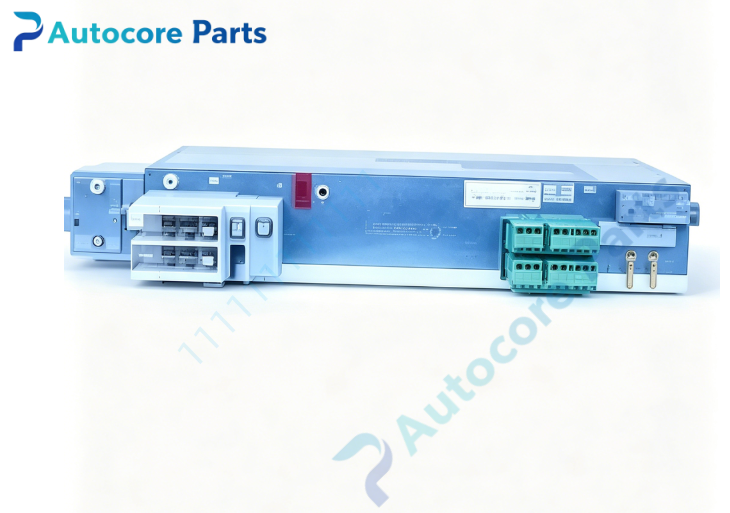

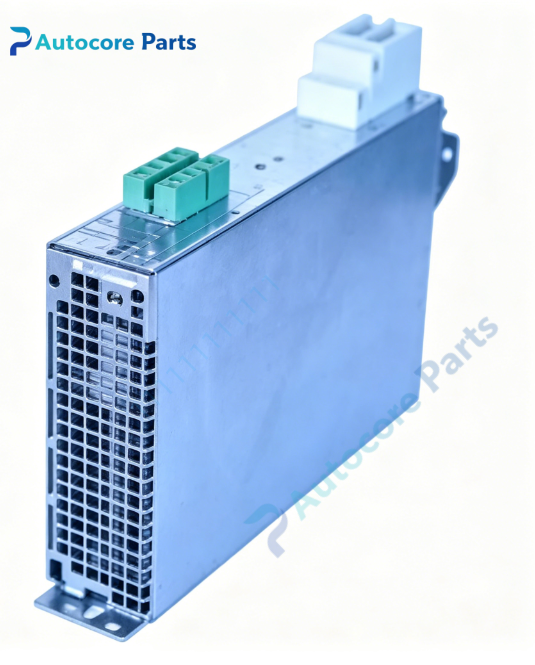

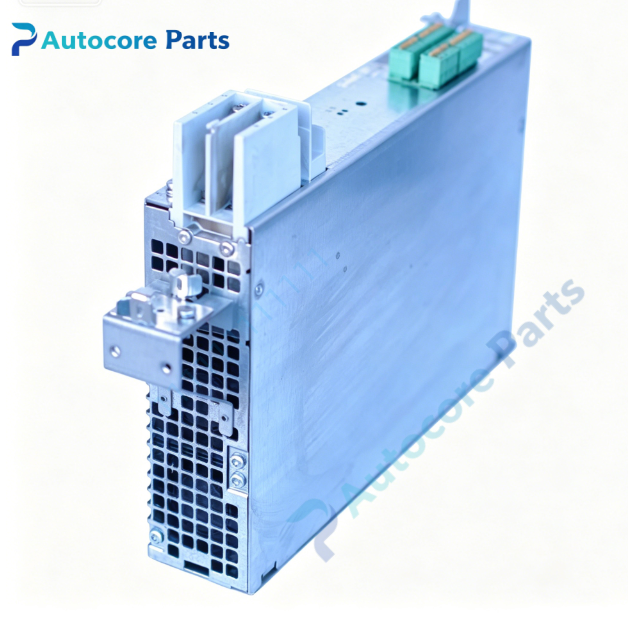

Rexroth BZM01.3-01-07 Brake Control Module Spare Part

Technical Specifications

Model:BZM01.3-01-07

Brand:Rexroth

Product type:Servo brake control module

Input voltage:24V DC

Mounting:DIN rail mounting

Protection class:IP20

Operating temperature:0~45℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE

System compatibility

BZM01.3-01-07 belongs to Rexroth Indramat BZM series brake module,matched with Indramat servo drive and servo motor systems,widely used for machine tool and automation production lines.This is a legacy spare part for industrial equipment maintenance replacement.

Function

BZM01.3-01-07 is a dedicated brake control module for Indramat servo system.It controls the release and locking of servo motor mechanical brake,realizes brake interlock logic,overcurrent detection and overload protection.It outputs brake status feedback signal to the servo controller to ensure safe stop of the axis during power failure or emergency stop.

Installation

Install BZM01.3-01-07 on standard DIN rail.Fix module and connect power cable and brake signal wiring according to wiring diagram.Check terminal tightening and wiring insulation before power-on commissioning.

Interface

‑24V DC power terminal

‑Brake output terminal

‑Drive signal input terminal

‑Status feedback signal terminal

‑Shield grounding terminal

Circuit feature

Compact hardware logic circuit,built-in surge suppression circuit for brake coil,short-circuit protection,stable signal transmission,strong anti-interference,suitable for machine tool workshop environment.

Feature

BZM01.3-01-07 is obsolete Rexroth spare part.Typical faults:brake coil drive failure,signal feedback loss,surge component burnout,terminal corrosion.Inspect signal and output function before replacement.This brake module must match the original Indramat servo system,direct substitution without inspection is not recommended.

Diagnostic

When module fails,servo motor brake cannot release or cannot lock,system reports brake fault alarm,no status feedback signal.

Built‑in function:Servo motor brake control,brake interlock protection,overcurrent and surge suppression,brake status signal feedback,used as Rexroth Indramat servo system spare replacement.

Product Brief

BZM01.3-01-07 is Rexroth Indramat BZM series compact servo brake control module for machine tool servo axis brake management.Verify servo system model and wiring definition before ordering.ESD protection required during handling and installation.
