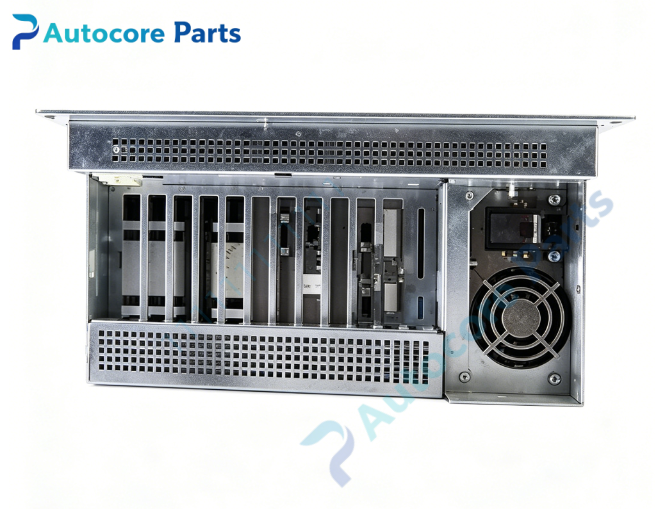

Rexroth BTV20.3SA-56B-45C-S-FW CNC Operator Panel Spare Part

Technical Specifications

Model:BTV20.3SA-56B-45C-S-FW

Brand:Rexroth

Product type:PC-based CNC visualization operator panel

Input voltage:115~230V AC,50/60Hz

Display:10.4 inch TFT color display,800×600 pixel

Processor:700MHz

Memory:256MB RAM,3GB HDD,built-in 3.5" 1.44MB floppy drive

Extra feature:Smart card interface

Keyboard:Standard full keyboard,16 machine function keys arranged on left and right sides

Mounting:Panel cutout mounting

Front panel protection:IP65

Rear housing protection:IP20

Communication:10Base-T Ethernet,RS232,RS485 SIS bus,Centronics printer port,VGA

Operating temperature:+5~+45℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Max operation altitude:1500m

Certification:CE

System compatibility

BTV20.3SA-56B-45C-S-FW belongs to Rexroth Indramat BTV20 visualization terminal family,matching Indramat System200 CNC and motion control systems,widely deployed on heavy-duty CNC machine tools and production automation lines.This is a legacy spare part for industrial equipment maintenance replacement.

Function

BTV20.3SA-56B-45C-S-FW is an expandable industrial PC-based operator terminal working under ISP mode.It integrates 10.4" TFT color screen,smart card reader and full machine keyboard,supports CNC program editing,manual axis jog,operation mode switching,parameter configuration,spindle & feed override adjustment,real-time machine status and fault alarm display.It communicates with main CNC controller via Ethernet and RS485 SIS bus for command transmission and data feedback.The 45C variant is equipped with factory preloaded dedicated firmware,the S suffix stands for smart card interface version.

Installation

Install BTV20.3SA-56B-45C-S-FW on cabinet panel cutout.Tighten mounting fixtures.Connect 115~230V AC power and communication cable according to wiring diagram.Check cable shielding and connector tightness before power-on commissioning.

Interface

‑AC power input terminal

‑10 Base-T Ethernet port

‑RS232 / RS485 SIS serial port

‑VGA interface,Centronics printer port

‑Smart card slot

‑Keyboard internal signal terminal

‑Shield grounding terminal

Circuit feature

Industrial embedded computer architecture,color display drive circuit,hardware keyboard scanning circuit,smart card reading circuit,stable multi-interface communication,strong anti-interference,suitable for harsh machine workshop environment.

Feature

BTV20.3SA-56B-45C-S-FW is obsolete Rexroth spare part.Typical faults:display backlight failure,membrane key aging,Ethernet/serial port damage,smart card reader failure,internal hard disk or power board failure.Inspect display and communication link before replacement.This visualization terminal must match original Indramat CNC system firmware,direct substitution without inspection is not recommended.

Diagnostic

When terminal fails,HMI screen blank,keyboard input no response,system triggers Ethernet or RS485 SIS communication timeout alarm,smart card authentication failure.

Built‑in function:CNC program editing,manual axis jogging,parameter configuration,machine status & alarm display,smart card data storage,production operation control,used as Rexroth Indramat CNC system spare replacement.

Product Brief

BTV20.3SA-56B-45C-S-FW is Rexroth Indramat BTV20 series 10.4-inch color visualization HMI terminal with smart card interface,700MHz CPU,256MB RAM and 3GB HDD.Verify CNC system firmware and communication configuration before ordering.ESD protection required during handling and installation.
