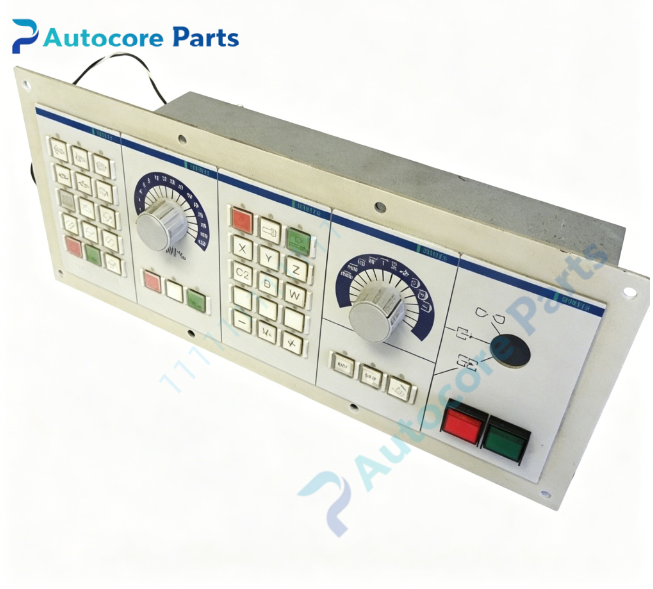

Rexroth 3TM15.2-TA-VA-TA-WE-MA Operator Panel Spare Part

Technical Specifications

Model:3TM15.2-TA-VA-TA-WE-MA

Brand:Rexroth

Product type:Indramat BTM15 series modular machine operator panel

I/O allocation:16 digital inputs,16 digital outputs

Communication interface:INTERBUS-S

Front protection grade:IP65

Color:RAL7035 light grey

Dimension:407mm169mm100mm

Weight:2kg

Operating temperature:0~45℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE

System compatibility

3TM15.2-TA-VA-TA-WE-MA belongs to Rexroth Indramat BTM15 operator panel family,matched with Indramat CNC and motion control systems.Widely applied in CNC machining centers,milling machines and automation production lines.This is a discontinued legacy spare part for equipment maintenance replacement.

Function

3TM15.2-TA-VA-TA-WE-MA is a modular machine operator panel.It realizes man-machine interaction,signal input and status display for machine tools.Through INTERBUS-S fieldbus,it performs cyclic data exchange of 16DI/16DO with the host control system.It can receive operation commands and feedback equipment running status,acting as local operation and signal interaction unit for industrial CNC equipment.

Installation

Mount 3TM15.2-TA-VA-TA-WE-MA on machine cabinet panel,tighten fixing fasteners.Connect INTERBUS-S communication cable and power supply cable according to wiring diagram.Check terminal connection integrity before power-on commissioning.

Interface

‑INTERBUS-S bus connector

‑Power supply terminal

‑Digital I/O terminal block

Circuit feature

Modular integrated circuit design,stable bus communication,strong anti-interference,suitable for harsh workshop industrial environment.

Feature

3TM15.2-TA-VA-TA-WE-MA is obsolete Rexroth spare part.Typical faults:bus communication failure,key malfunction,I/O channel damage,aging circuit.Inspect panel,communication port and I/O channel before replacement.This operator panel must match corresponding Indramat control system,direct substitution without inspection is not recommended.

Diagnostic

When communication failure,key unresponsive or I/O signal loss occurs,the control system will trigger alarm and stop related machine operation.

Built‑in function:Machine local operation,parameter setting,running status display,digital signal input & output,used as Rexroth Indramat CNC system spare replacement.

Product Brief

3TM15.2-TA-VA-TA-WE-MA is Rexroth Indramat discontinued modular operator panel with INTERBUS-S bus,used for CNC machine local operation and signal interaction.Confirm system compatibility,panel mounting size and bus protocol before ordering.ESD protection required during handling and installation.
