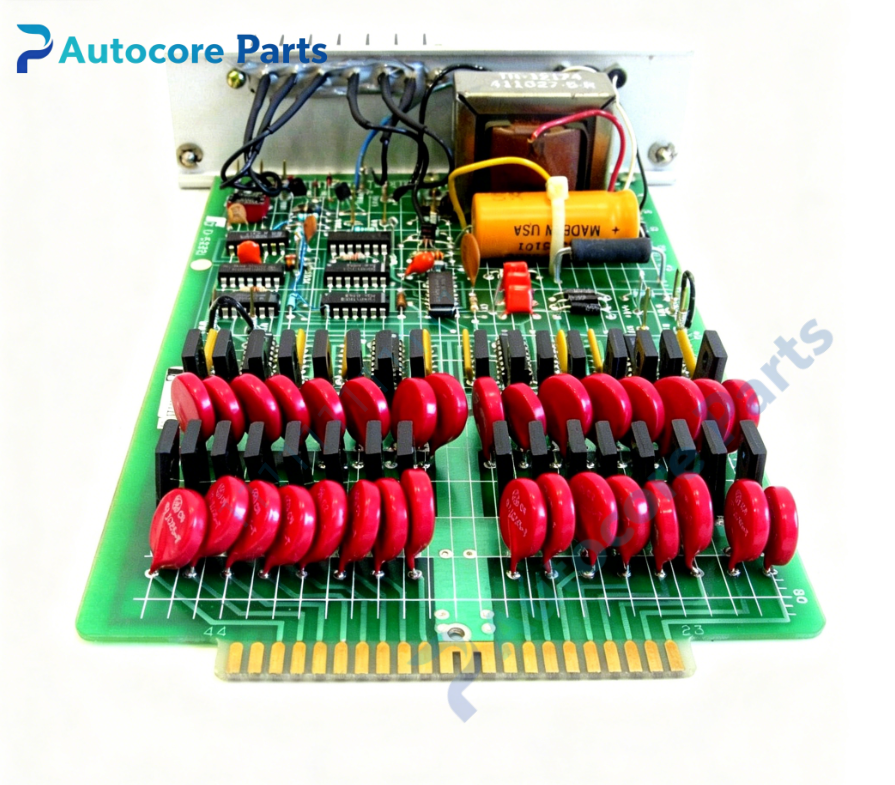

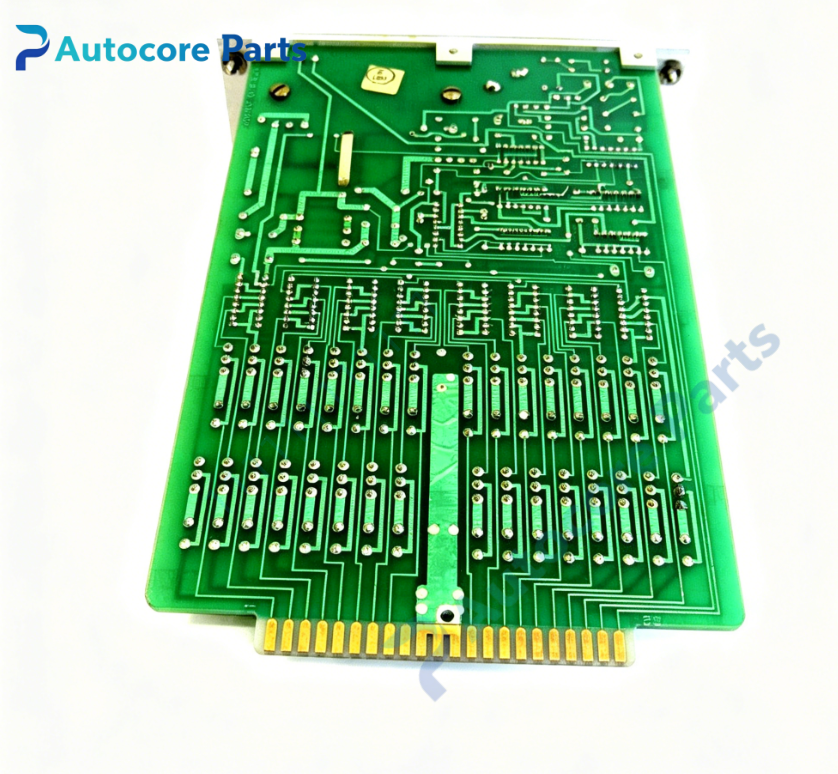

RELIANCE 0-52821 Field Interface Board

Technical SpecificationsModel:0-52821 Brand:RELIANCE Product type:Field Interface Board Weight:0.54kg Dimension:210mm135mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-52821 is RELIANCE rack plug-in field interface board. It is designed for Reliance MaxPak Plus series spindle DC drive rack,cooperates with ARM armature regulator board and logic control board. It acts as signal isolation gateway between drive internal control circuit and external field equipment. Commonly used for maintenance and spare replacement of old industrial spindle DC drive equipment.

Function0-52821 is dedicated field interface PCB for RELIANCE MaxPak Plus DC drive system. It realizes bidirectional conversion and isolation of analog and discrete signals between field side and drive rack. It receives external start/stop,interlock and analog command signals,then transmits isolated signals to drive backplane; meanwhile converts drive status and fault logic signals to field output level. Multiple onboard potentiometers for signal gain and offset trimming. Dual LED indicators display board power and signal transmission status. Built-in surge suppression and opto-isolation components to block ground loop noise and protect main control board from external circuit fault.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-52821 field interface board into drive rack slot and lock retaining screw. Connect gold finger backplane connector for internal signal exchange. Separate field side wiring and rack control wiring,avoid routing together with high power cables. Power on system,calibrate signal gain via potentiometers. Verify input and output signal transmission consistency between field and drive.

InterfaceBackplane edge connector,field digital/analog signal input,isolated status/fault signal output,auxiliary power terminal,shield grounding terminal,dual status LED indicators,onboard calibration potentiometer bank.

FeatureRELIANCE 0-52821 rack mount field interface board. Opto-isolated bidirectional signal conversion circuit for field and drive. Onboard potentiometers for signal trimming. Surge protection circuit for external field wiring. Gold plated edge connector for reliable rack signal transmission. Dual LED visual indication for power and signal state. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance MaxPak Plus DC drive system spare replacement. Suitable for metallurgy,paper-making production line spindle DC drive renovation and maintenance.

DiagnosticNo communication between drive and field:field wiring fault or optocoupler damage; Signal amplitude deviation:potentiometer drift; LED no light:board auxiliary power loss; Signal distortion:poor shielding and ground potential difference; Intermittent signal dropout:backplane pin oxidation and poor contact.

Product BriefRELIANCE 0-52821 is field interface board. It provides opto-isolation and signal conversion between external field devices and Reliance MaxPak Plus legacy spindle DC drive,isolating interference and protecting main control circuit,widely used as spare part for legacy DC drive equipment maintenance.

Disclaimer:All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
