RELIANCE 0-52819 PRMA Dual Circuit Board

Technical SpecificationsModel:0-52819 Brand:RELIANCE Product type:PRMA Dual Circuit Board Weight:0.56kg Dimension:210mm135mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

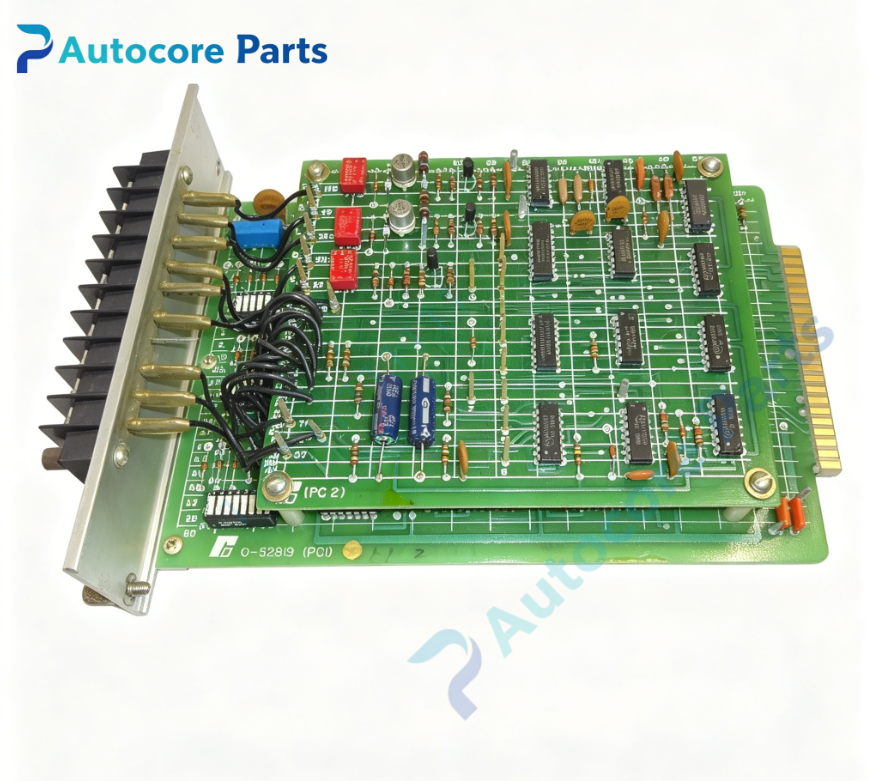

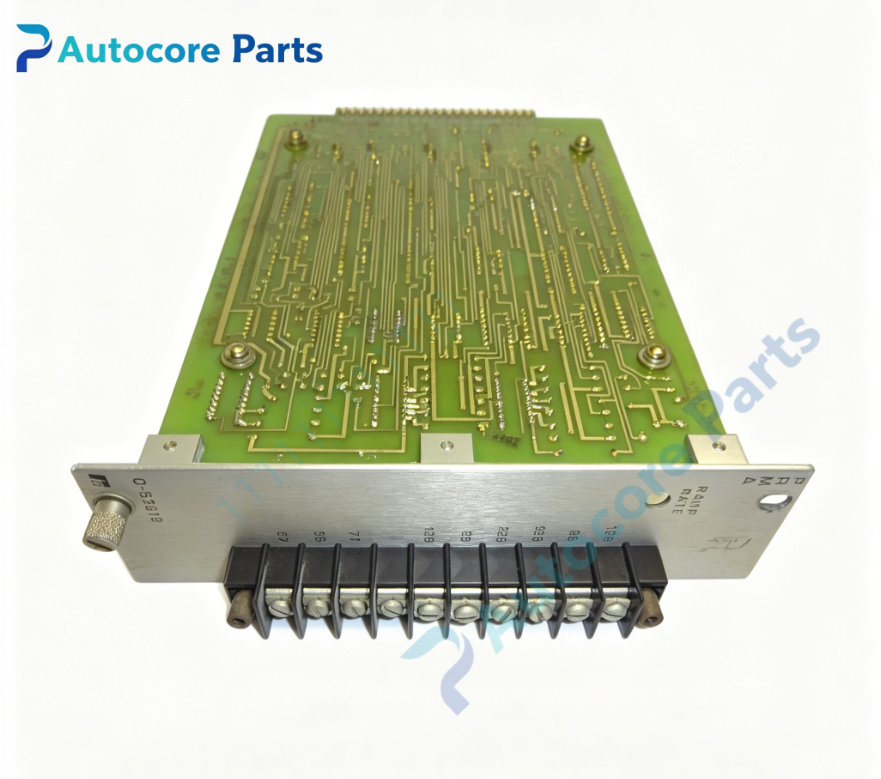

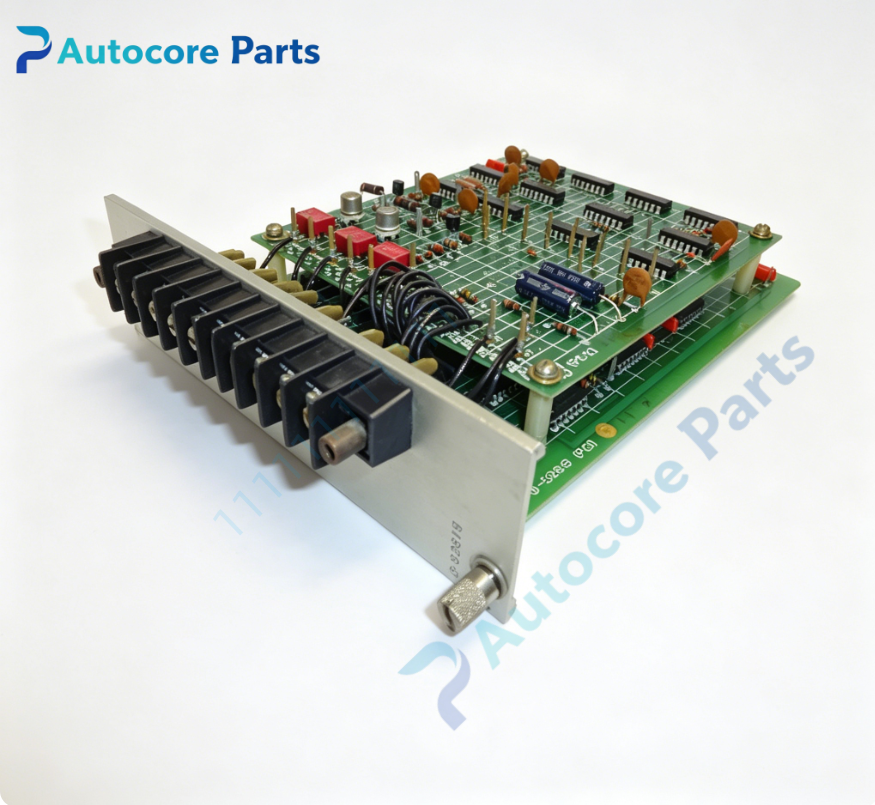

System compatibility0-52819 is RELIANCE rack plug-in PRMA dual circuit board. It adopts stacked dual-board structure including PC1 base board and PC2 daughter board,designed for Reliance MaxPak Plus series spindle DC drive rack,cooperates with ARM armature regulator board. It undertakes drive logic processing and parameter configuration function for spindle drive control system. Commonly used for maintenance and spare replacement of old industrial spindle DC drive equipment.

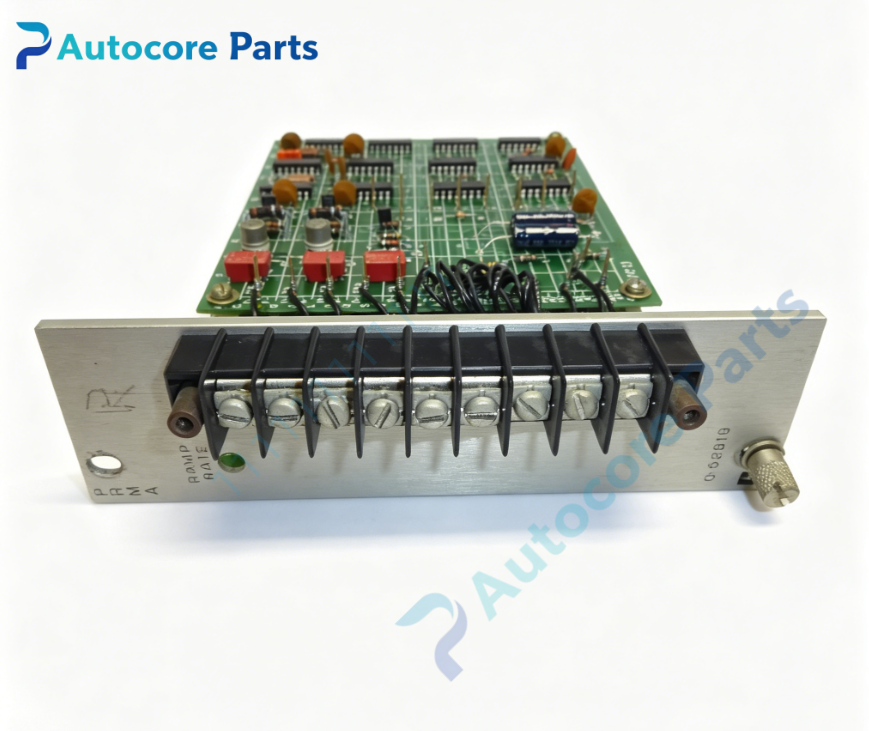

Function0-52819 is dedicated PRMA dual printed circuit board for RELIANCE MaxPak Plus DC drive system. Equipped with bank of DIP switches for mode selection and parameter preset. The daughter board integrates multiple IC chips and varistors for signal conditioning and logic operation. It receives internal control signals from rack backplane,executes logic judgment and signal distribution,transmits processed control signals to armature regulator. It has onboard potentiometer for fine-tuning circuit gain. Dual LED indicators display board power and logic operating status. Varistor components provide transient surge suppression to protect internal circuits from voltage spikes.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-52819 PRMA board into drive rack slot and lock retaining screw. Connect gold finger backplane connector for logic signal transmission. Separate control wiring from high power pulse cables. Power on system,set DIP switches for working mode and adjust potentiometer for circuit fine calibration. Verify drive responds correctly under configured parameters.

InterfaceBackplane edge connector,logic signal input,processed control signal output,auxiliary power terminal,shield grounding terminal,dual status LED indicators,DIP switch bank and onboard calibration potentiometer.

FeatureRELIANCE 0-52819 rack mount PRMA dual circuit board. Stacked dual PCB structure with base board and daughter board. DIP switch array for drive parameter and working mode configuration. Varistor surge protection circuit against voltage spike. Gold plated edge connector for reliable rack signal transmission. Dual LED visual indication for power and logic operation state. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance MaxPak Plus DC drive system spare replacement. Suitable for metallurgy,paper-making production line spindle DC drive renovation and maintenance.

DiagnosticDrive abnormal operation:DIP switch misconfiguration or potentiometer drift; No logic response:backplane contact poor or IC chip damage; LED no light:board auxiliary power loss; Random drive fault:surge component aging; Intermittent malfunction:backplane pin oxidation and poor contact.

Product BriefRELIANCE 0-52819 is PRMA dual circuit board. It completes logic signal processing and parameter configuration for Reliance MaxPak Plus legacy spindle DC drive,stably transmits control signals to armature regulator,widely used as spare part for legacy DC drive equipment maintenance.

Disclaimer:All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
