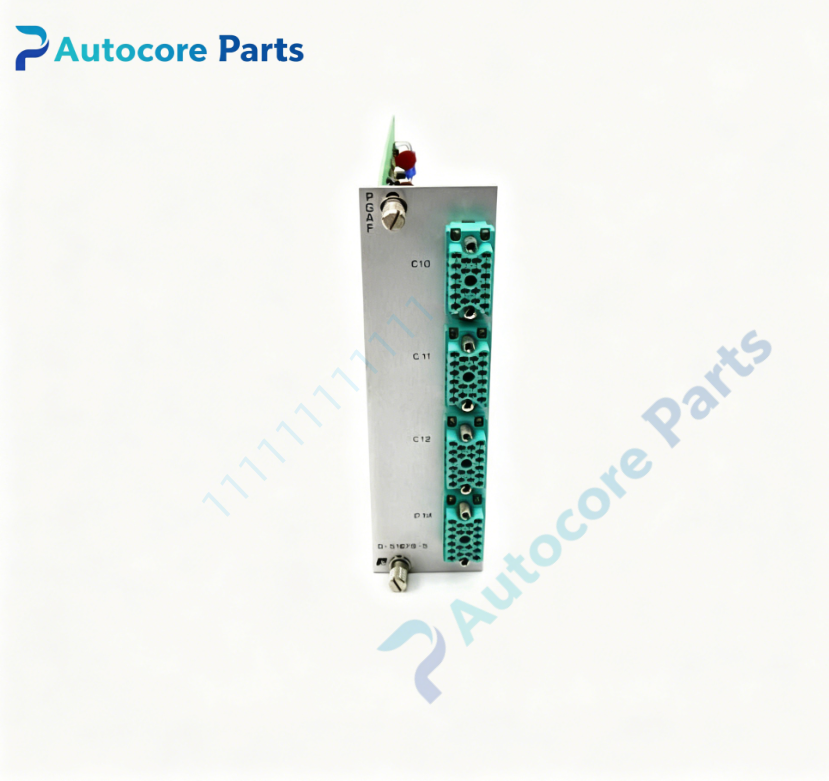

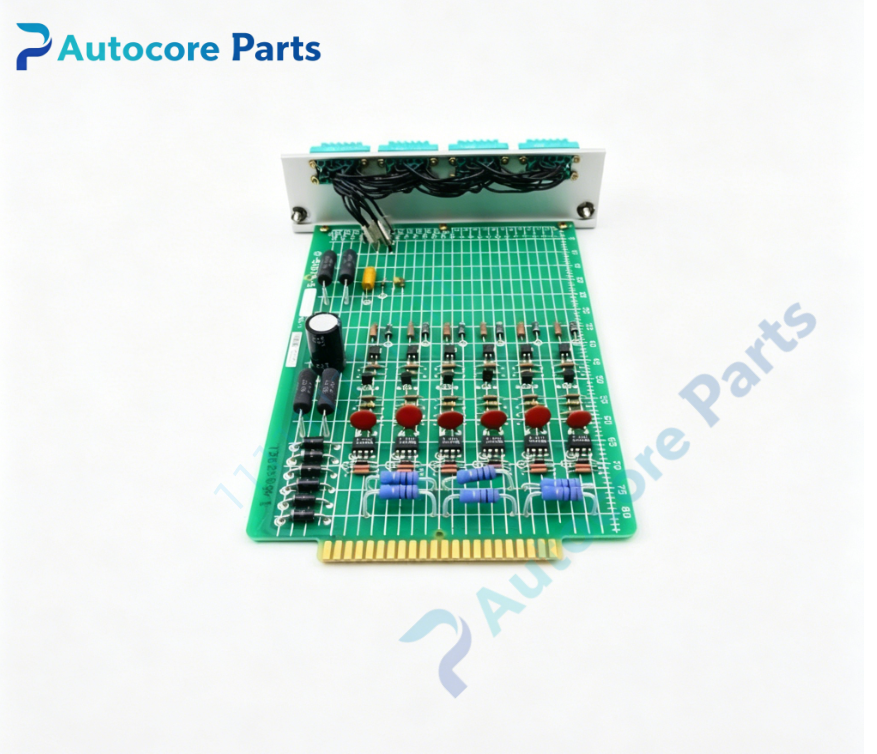

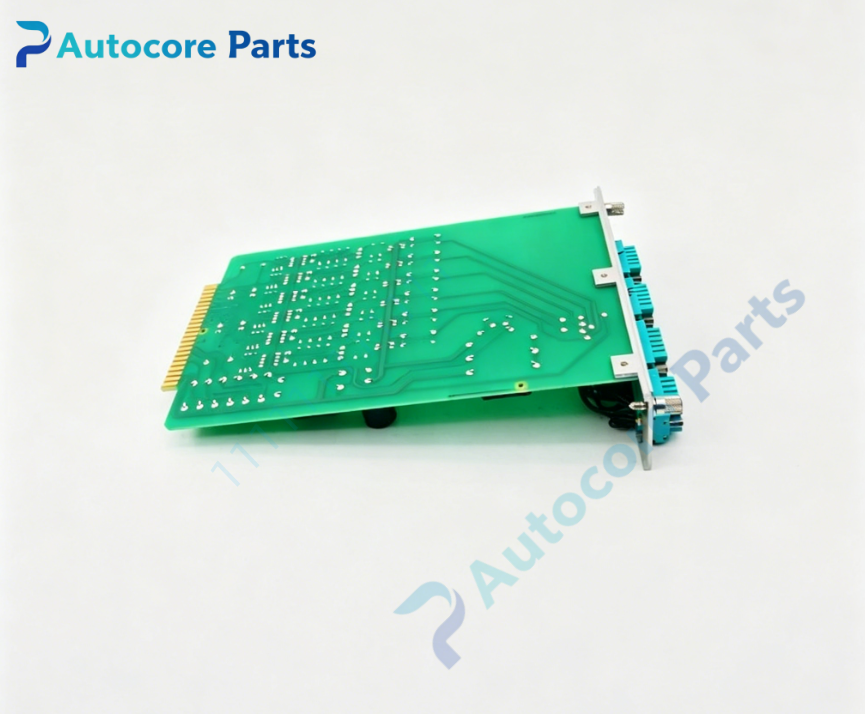

RELIANCE 0-51879-5 GDA Gate Driver Amplifier Board

Technical SpecificationsModel:0-51879-5 Brand:RELIANCE Product type:GDA Gate Driver Amplifier Board Weight:0.59kg Dimension:210mm135mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-51879-5 is RELIANCE upgraded GDA rack plug-in gate driver amplifier board. It is revised variant of 0-51879-1,designed for Reliance MaxPak Plus series spindle DC drive rack,cooperates with CGSA gate summing board and VFB voltage feedback board. It receives low-level multi-phase trigger signal,amplifies and outputs high-power driving pulses to SCR power thyristors. Commonly used for maintenance and spare replacement of old industrial spindle DC drive equipment.

Function0-51879-5 is dedicated GDA gate driver amplifier PCB for RELIANCE MaxPak Plus DC drive system. Receive multi-phase low-level pulse signal from CGSA control board. Amplify pulse voltage and current to provide stable gate drive for each SCR thyristor. Front panel multi-turn potentiometer for fine adjustment of gate pulse amplitude. Built-in phase balance circuit to keep pulse amplitude consistent across all phases. Onboard surge suppression and phase overcurrent protection to prevent SCR gate burnout. Multi-channel LED indicators separately display each phase pulse status and gate fault alarm. Enhanced isolation barrier separates low voltage control section and high-power gate drive circuit,reducing common mode interference.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-51879-5 GDA board into drive rack slot and lock retaining screw. Connect gold finger backplane connector for internal multi-phase pulse signal exchange. Separate high energy gate pulse output wiring from low-level analog signal cables. Power on system,calibrate gate pulse amplitude and phase balance via front potentiometer. Verify SCR firing balance under light load and full load operating condition.

InterfaceBackplane edge connector,multi-phase low-level trigger pulse input,amplified SCR gate pulse output,auxiliary power terminal,shield grounding terminal,multi-channel phase status LED indicators,front multi-turn calibration potentiometer.

FeatureRELIANCE 0-51879-5 rack mount GDA gate driver amplifier board. Discrete transistor amplification circuit with phase balance function for multi-phase SCR gate driving. Front panel multi-turn adjustable potentiometer for pulse amplitude and phase balance setup. Built-in surge suppression and per-phase overcurrent protection. Better phase consistency and noise immunity compared with 0-51879-1 version. Gold plated edge connector for reliable rack signal transmission. Multi LED visual indication for each phase pulse working and fault state. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance MaxPak Plus DC drive system spare replacement. Suitable for metallurgy,paper-making production line spindle DC drive renovation and maintenance.

DiagnosticPhase unbalanced firing:phase balance potentiometer drift or component aging; Drive torque ripple:different pulse amplitude between SCR phases; Fault LED lit:gate overcurrent or phase short circuit; No pulse output:amplifier circuit damage; Intermittent phase misfire:backplane pin oxidation and poor contact.

Product BriefRELIANCE 0-51879-5 is GDA gate driver amplifier board. It amplifies multi-phase low-level trigger pulses,realizes phase balance adjustment and provides stable gate driving power for SCR thyristors of Reliance MaxPak Plus legacy spindle DC drive power unit,widely used as spare part for legacy DC drive equipment maintenance.

Disclaimer:All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
