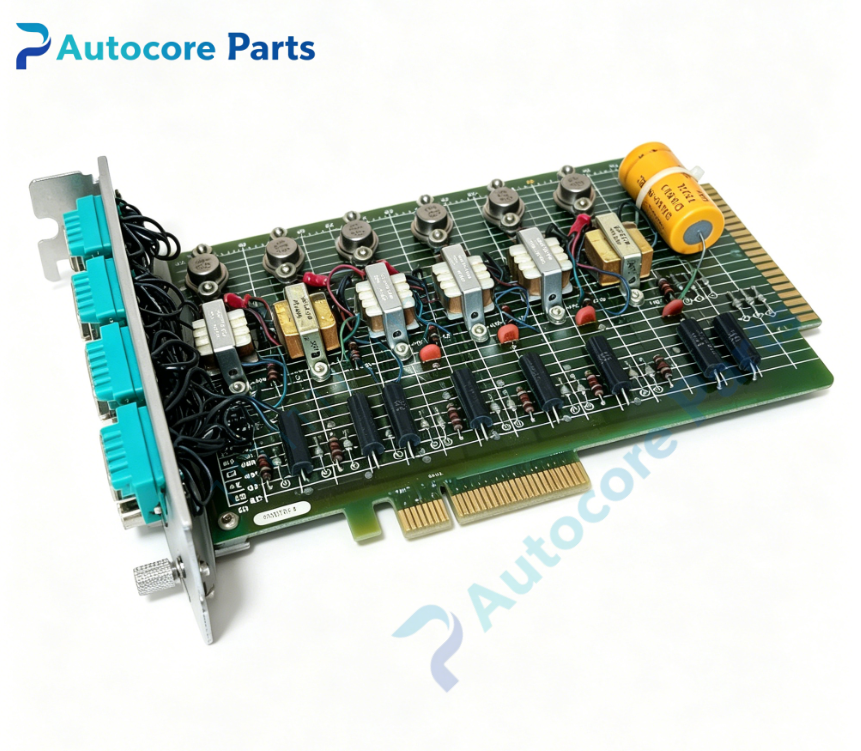

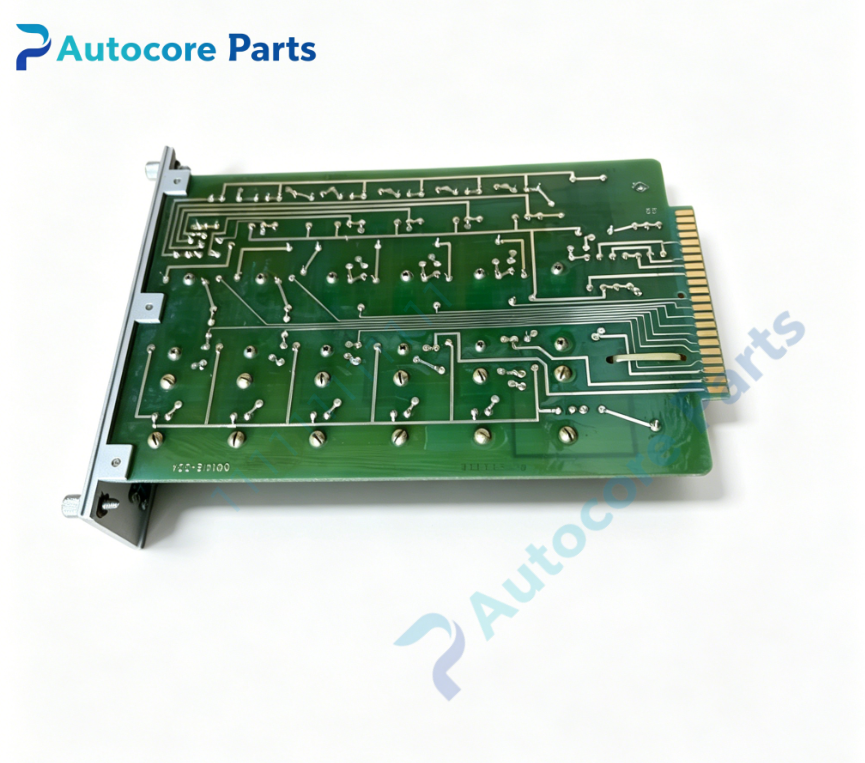

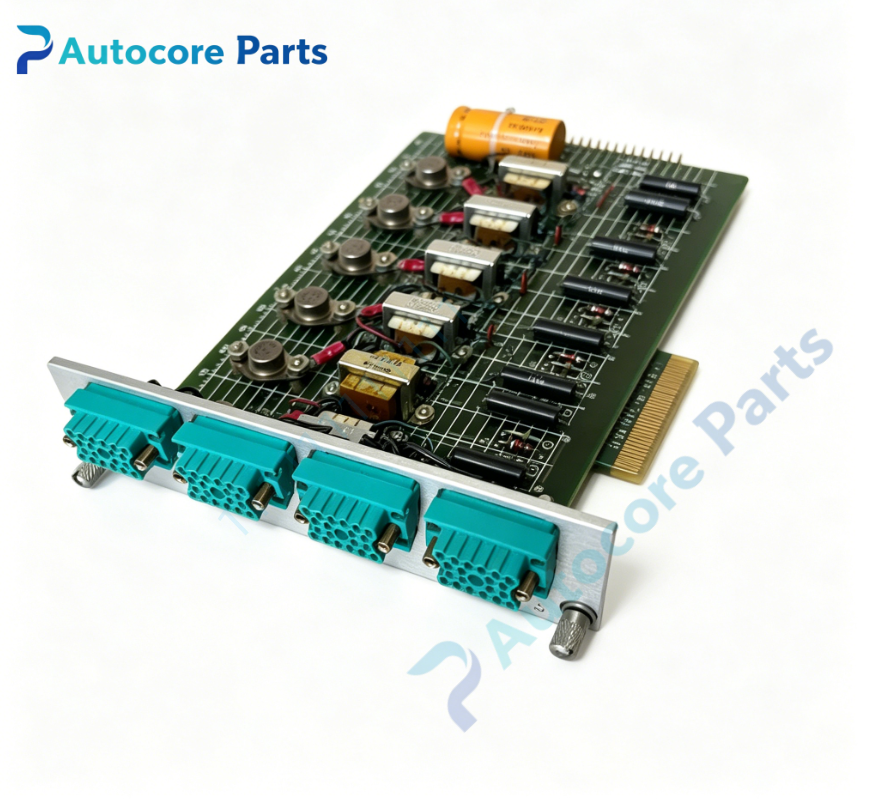

RELIANCE 0-51879-1 GDA Gate Driver Amplifier Board

Technical SpecificationsModel:0-51879-1 Brand:RELIANCE Product type:GDA Gate Driver Amplifier Board Weight:0.57kg Dimension:210mm135mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-51879-1 is RELIANCE GDA rack plug-in gate driver amplifier board. It is designed for Reliance MaxPak Plus series spindle DC drive rack,cooperates with CGSA gate summing board and VFB voltage feedback board. It receives weak gate trigger signal,amplifies and outputs high-power driving pulses to SCR power thyristors. Commonly used for maintenance and spare replacement of old industrial spindle DC drive equipment.

Function0-51879-1 is dedicated GDA gate driver amplifier PCB for RELIANCE MaxPak Plus DC drive system. Receive low-level phase trigger pulse signal from CGSA board. Amplify signal current and voltage to drive SCR gate reliably. Front panel potentiometer for gate pulse amplitude adjustment. Built-in pulse shaping and overcurrent protection circuit to suppress gate surge. Multi LED indicators for pulse status and gate fault alarm. Isolation circuit separates low voltage control logic and high power gate drive circuit.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-51879-1 GDA board into drive rack slot and lock retaining screw. Connect gold finger backplane connector for internal pulse signal exchange. Separate gate pulse output wiring from low-level analog signal cables. Power on system,calibrate gate pulse amplitude via front potentiometer. Verify SCR firing consistency under different load conditions.

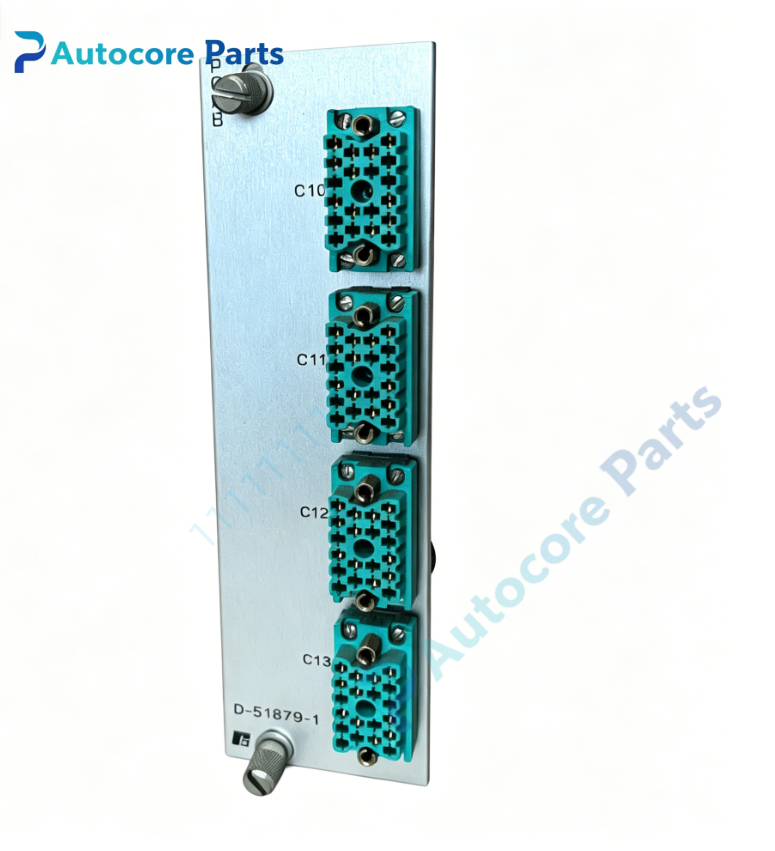

InterfaceBackplane edge connector,low-level trigger pulse input,amplified SCR gate pulse output,auxiliary power terminal,shield grounding terminal,multi-channel status LED indicators,front calibration potentiometer.

FeatureRELIANCE 0-51879-1 rack mount GDA gate driver amplifier board. Discrete transistor amplifier circuit for SCR gate pulse driving. Front panel adjustable potentiometer for pulse amplitude setup. Built-in surge suppression and overcurrent protection. Gold plated edge connector for reliable rack signal transmission. Multi LED visual indication for pulse working and fault state. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance MaxPak Plus DC drive system spare replacement. Suitable for metallurgy,paper-making production line spindle DC drive renovation and maintenance.

DiagnosticSCR phase missing firing:gate pulse amplitude insufficient or potentiometer drift; Drive torque fluctuation:unbalanced pulse amplitude between phases; Fault LED lit:gate overcurrent or short circuit; No pulse output:amplifier circuit damage; Intermittent misfire:backplane pin oxidation and poor contact.

Product BriefRELIANCE 0-51879-1 is GDA gate driver amplifier board. It amplifies low-level trigger pulses and supplies driving power for SCR thyristors of Reliance MaxPak Plus legacy spindle DC drive power unit,widely used as spare part for legacy DC drive equipment maintenance.

Disclaimer:All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
