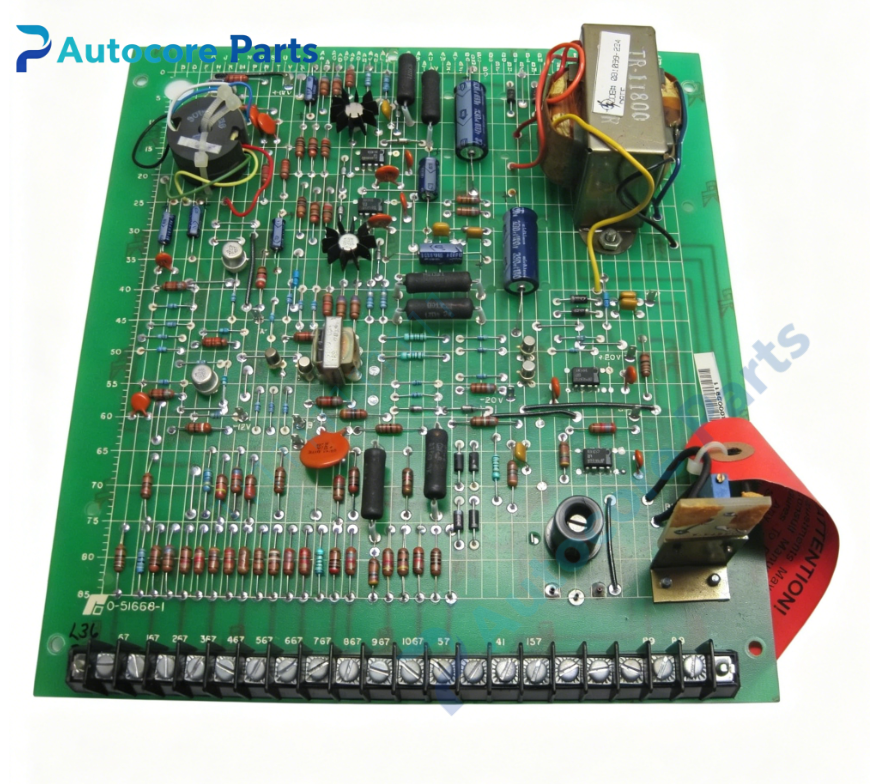

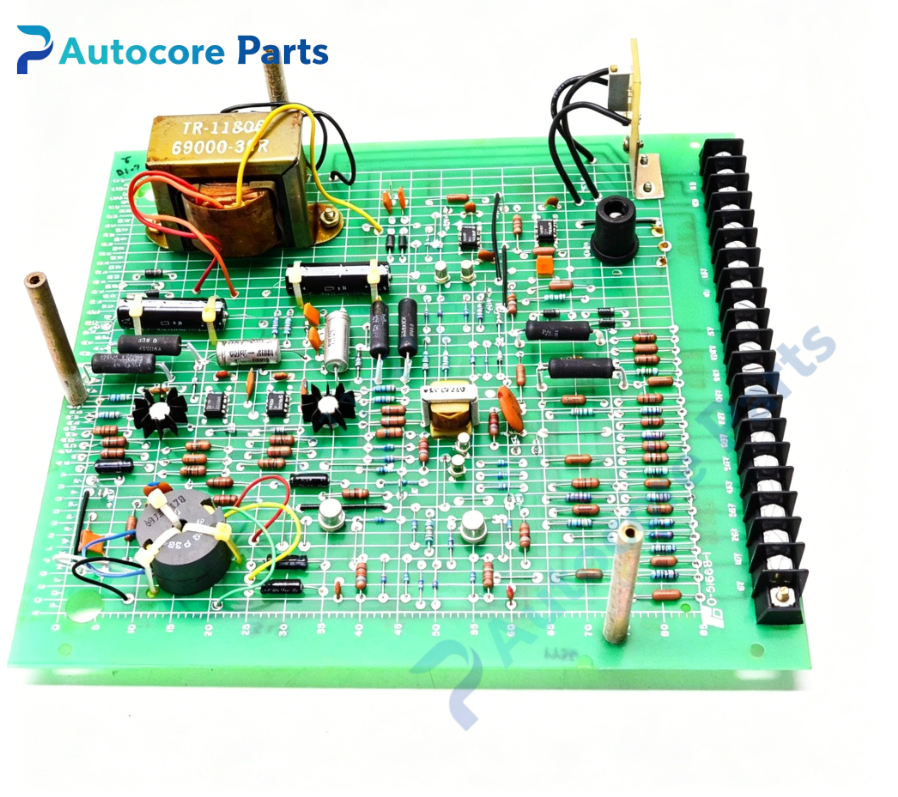

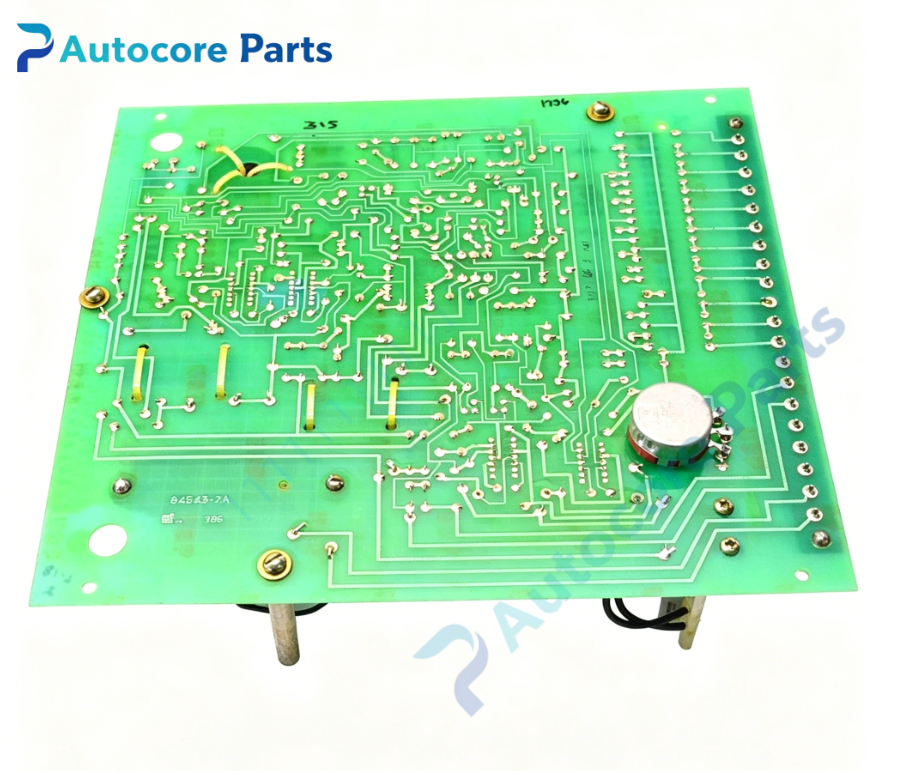

RELIANCE 0-51668 Drive Interface Board

Technical SpecificationsModel:0-51668 Brand:RELIANCE Product type:Drive Interface Board Weight:1.12kg Dimension:240mm160mm32mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-51668 belongs to RELIANCE drive interface board. Installed inside Reliance DC variable speed drive cabinet,cooperates with main control board and external process controller. It realizes signal matching and isolation between DC drive and upper process control system. Commonly used for maintenance and spare replacement of old industrial DC drive equipment.

Function0-51668 is dedicated process control drive interface PCB for RELIANCE DC drive system. Receive analog setpoint and remote command signals from external process control unit. Perform signal isolation,level conversion and impedance matching. Transmit converted speed reference signal to drive main regulator board. Feed back drive operating status and fault signals to upper control system. Filter external signal interference to prevent disturbance to drive closed-loop control. Provide signal surge protection for both sides of interface.

InstallationPower off the whole drive cabinet and cut main power supply. Mount 0-51668 board to designated bracket and lock fasteners. Connect screw terminal wiring for external control signal and internal drive signal. Separate analog control wiring from high-current power bus. Power on system,calibrate reference signal scaling range. Verify signal transmission stability between process controller and DC drive.

InterfaceScrew terminal block,external process control signal input,drive reference signal output,drive status/fault feedback output,shield grounding terminal,status LED indicators.

FeatureRELIANCE 0-51668 process control interface board with screw terminal design. Signal galvanic isolation between external PLC/process controller and drive control loop. Onboard potentiometers for analog signal scaling calibration. Built-in surge and noise suppression circuit. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance DC drive system spare replacement. Suitable for metallurgy,paper-making production line DC drive renovation and maintenance.

DiagnosticDrive cannot follow remote setpoint:signal scaling misadjustment or interface circuit damage; No feedback status to upper controller:feedback channel failure; Speed jitter:external signal interference without isolation; No reference signal output:missing auxiliary power; Intermittent signal loss:loose screw terminal connection.

Product BriefRELIANCE 0-51668 is drive interface board. It provides signal isolation,level conversion and scaling matching between external process control system and Reliance legacy DC drive,widely used as spare part for legacy DC drive equipment maintenance.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
