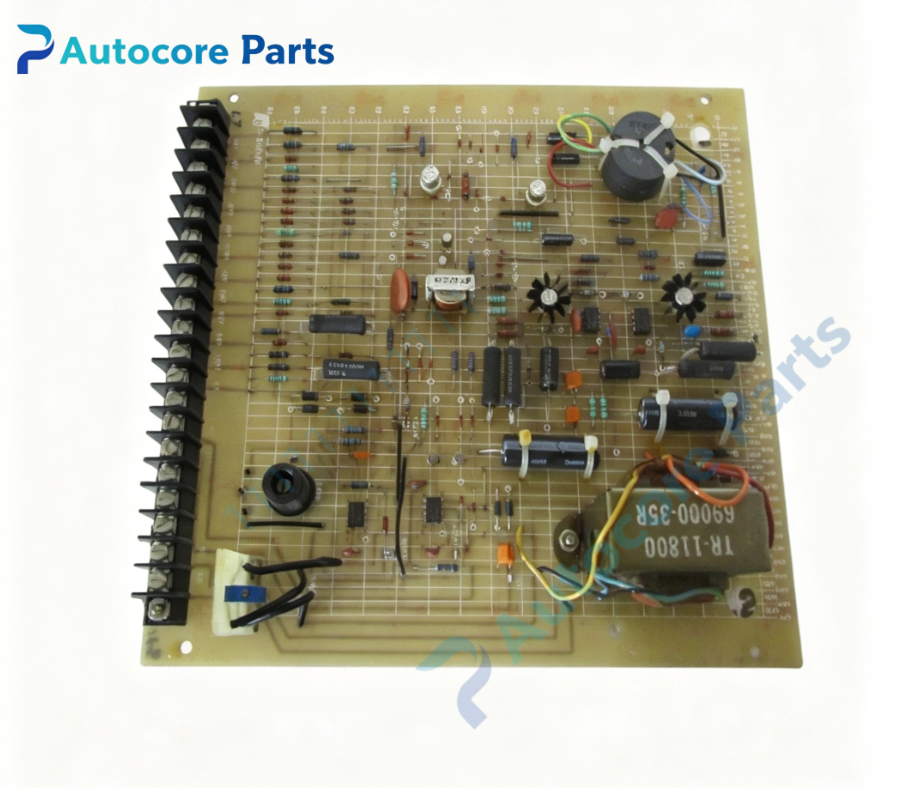

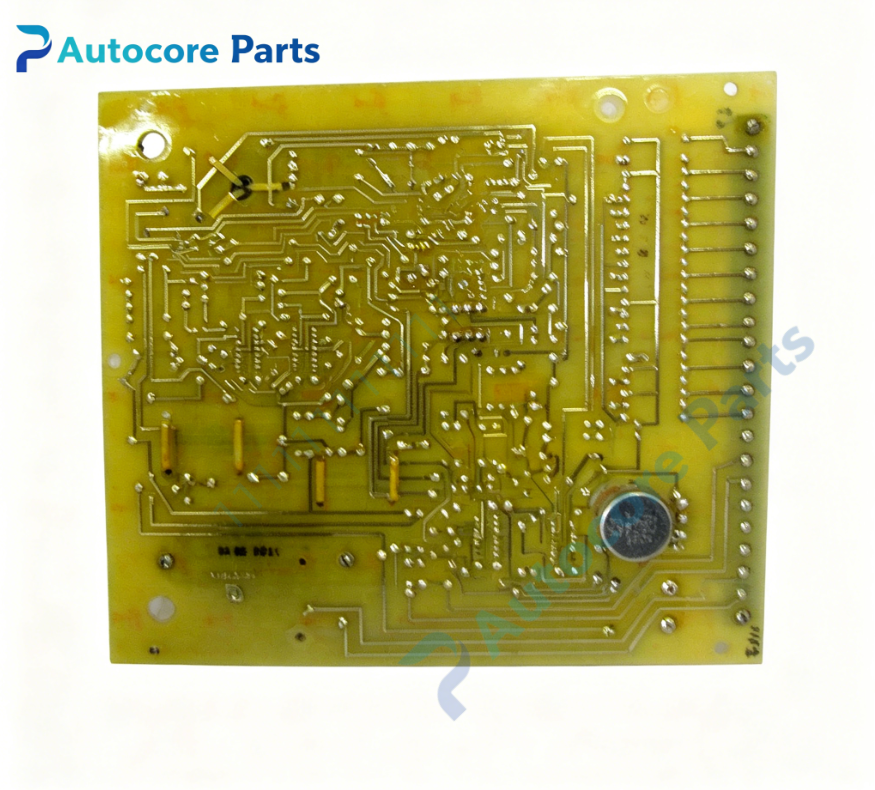

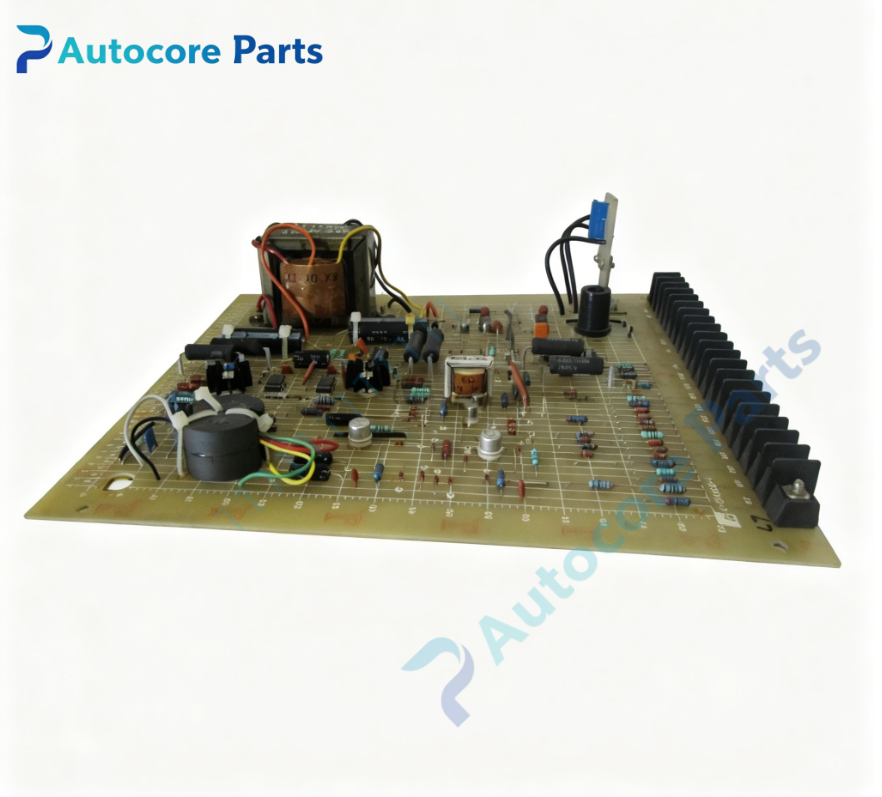

RELIANCE 0-51668-1 Drive Interface Board

System compatibility0-51668-1 is updated revision of 0-51668 drive interface board. Installed inside Reliance DC variable speed drive cabinet,cooperates with main control board and external process controller. It realizes signal matching and galvanic isolation between DC drive and upper process control system. Commonly used for maintenance and spare replacement of old industrial DC drive equipment.

Function0-51668-1 is dedicated revised process control drive interface PCB for RELIANCE DC drive system. Receive analog setpoint and remote command signals from external PLC or process control unit. Perform signal isolation,level conversion and impedance matching. Transmit scaled speed reference signal to drive main regulator board. Feed back drive running status,alarm and fault signals to upper control system. Filter external signal interference to prevent disturbance to drive closed-loop control. Provide bidirectional signal surge protection for interface circuit.

InstallationPower off the whole drive cabinet and cut main power supply. Mount 0-51668-1 board to designated bracket and lock fasteners. Connect screw terminal wiring for external control signal and internal drive signal. Separate analog control wiring from high-current power bus. Power on system,calibrate reference signal scaling range. Verify signal transmission stability between process controller and DC drive.

InterfaceScrew terminal block,external process control signal input,drive reference signal output,drive status/fault feedback output,shield grounding terminal,status LED indicators.

FeatureRELIANCE 0-51668-1 revised process control interface board with upgraded screw terminal design. Galvanic isolation between external process controller and drive control loop. Onboard multi potentiometers for analog signal scaling calibration. Enhanced surge and noise suppression circuit compared with earlier 0-51668 version. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance DC drive system spare replacement. Suitable for metallurgy,paper-making production line DC drive renovation and maintenance.

DiagnosticDrive cannot follow remote speed setpoint:signal scaling misadjustment or interface circuit damage; No status feedback to upper controller:feedback channel failure; Speed fluctuation:external signal interference without effective isolation; No reference signal output:auxiliary power missing; Intermittent signal dropout:loose screw terminal connection.

Product BriefRELIANCE 0-51668-1 is revised drive interface board. It provides bidirectional signal isolation,level conversion and scaling matching between external process control system and Reliance legacy DC drive,widely used as spare part for legacy DC drive equipment maintenance.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
