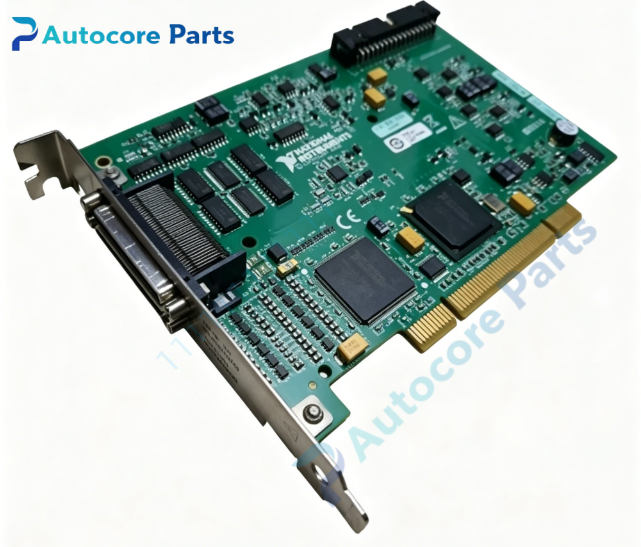

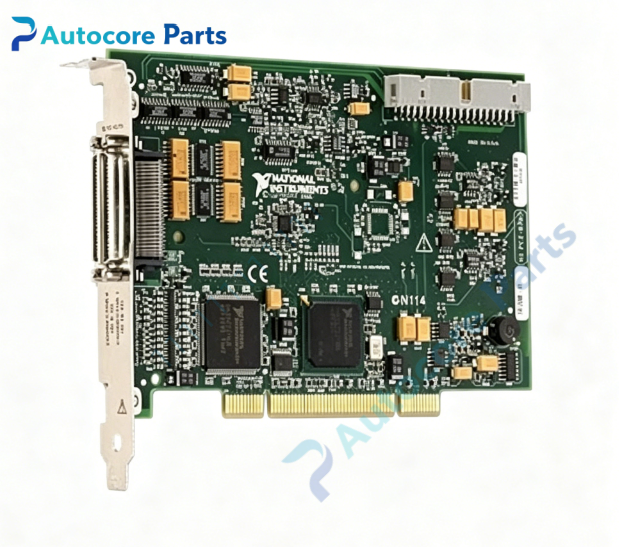

NI PCI-6229 M Series Multifunction DAQ Data Acquisition Board

Technical Specifications

Model:PCI-6229

Brand:NI

Part No:779068-01

Product type:PCI Bus M Series Multifunction DAQ(Data Acquisition) Board

ADC:16-bit resolution

Analog Input:32 single-ended /16 differential channels

Max sampling rate:250kS/s aggregate

Analog Output:4 channels,16-bit

Digital I/O:48 bidirectional DIO lines,TTL level

Counter/Timer:2×32-bit counter timers

Connector:Dual VHDCI

Function:multi-channel high density voltage measurement,analog waveform output,PFI timing trigger,digital read/write,digital triggering,multi-board synchronization

Bus:32-bit PCI

Dimension:175mm107mm20mm

Weight:0.101kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +70℃

Relative humidity:10~90% non-condensing

Certification:CE

System compatibility

PCI-6229 belongs to NI M Series multifunction DAQ platform.It works with standard PCI industrial PC,supported by NI-DAQmx and LabVIEW,widely used for high-density multi-channel data acquisition,laboratory measurement,production line testing and continuous data logging.It is spare part for legacy test equipment overhaul.

Function

PCI-6229 is M-series multifunction PCI DAQ board.It integrates 32/16-ch analog input,4-channel analog output,48-channel digital I/O and 32-bit counter functions.16-bit ADC supports aggregate 250kS/s sampling.PFI lines support external timing and triggering for general automated test systems.

Installation

Insert PCI-6229 into PCI slot and fasten bracket.Connect signal wiring to dual VHDCI terminal block.Install NI-DAQmx driver.Take ESD protection before installation.

Interface

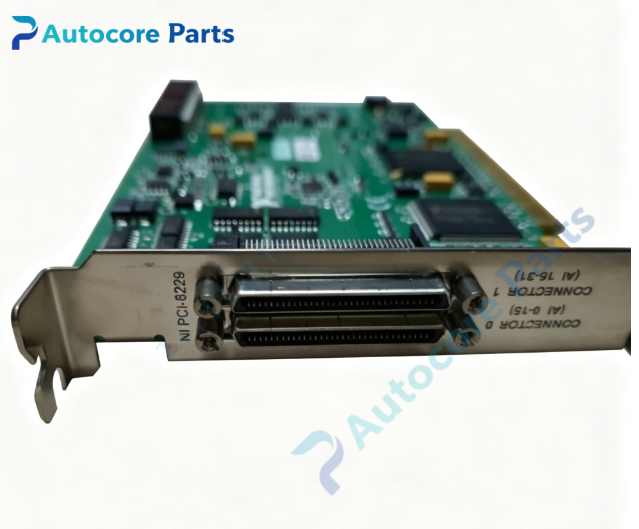

‑Dual VHDCI multi-function I/O connector

‑PCI gold finger edge connector

‑Board status indicator

Feature

PCI-6229 classic NI M-series multifunction DAQ board.Typical faults:VHDCI connector pin oxidation,ADC reading drift,counter timing error.Inspect analog input and digital channel before replacement.

Diagnostic

Fault phenomenon:abnormal AI reading,no AO output,digital channel failure,counting error.Check sensor wiring,PCI slot contact,DAQ driver and channel configuration.

Product Brief

PCI-6229 is NI PCI bus M Series multifunction DAQ board with 16-bit,250kS/s sampling,32AI,4AO and 48 DIO,for high-density multi-channel voltage acquisition,automated measurement and legacy test equipment renovation.Mainly used for maintenance and replacement of old test equipment.ESD protection must be followed during handling.
