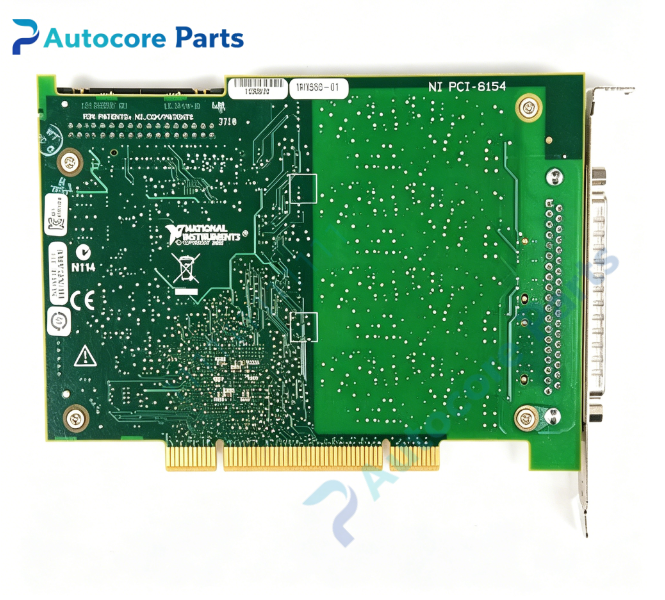

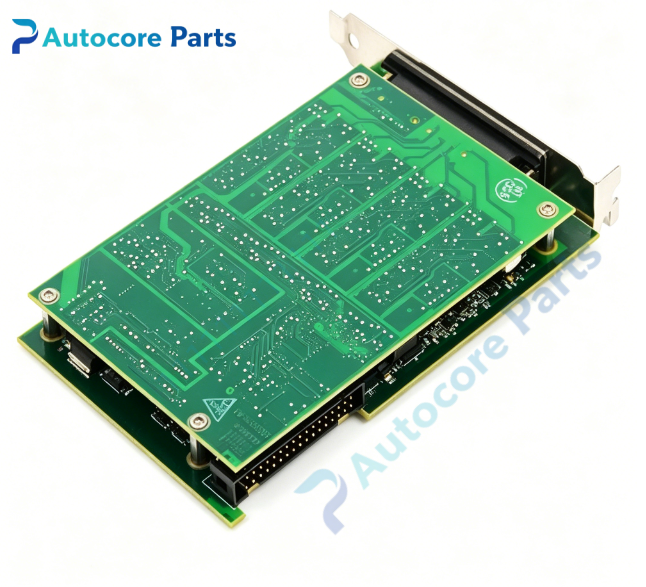

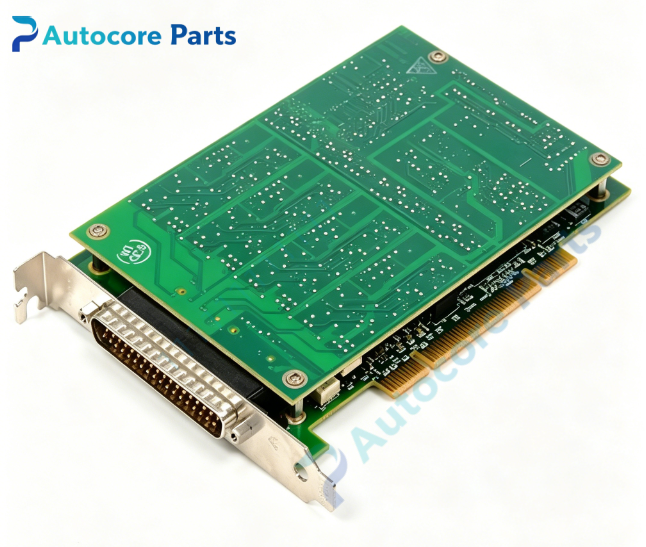

NI PCI-6154 Isolated Simultaneous Sampling DAQ Multifunction I/O Board

Technical Specifications

Model:PCI-6154

Brand:NI

Part No:191858-01L

Product type:PCI Bus S Series Multifunction DAQ(Data Acquisition) Board

ADC:16-bit resolution

Analog Input:4 differential isolated channels

Max sampling rate:250kS/s per channel

Analog Output:4 channels,16-bit isolated

Digital I/O:6DI,4DO,bank-isolated,TTL level

Counter/Timer:2×32-bit counter timers

Connector:68-pin SCSI

Function:isolated synchronous voltage measurement,analog waveform output,PFI timing trigger,digital read/write,digital triggering,multi-board synchronization

Bus:32-bit PCI

Dimension:175mm107mm20mm

Weight:0.22kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +70℃

Relative humidity:10~90% non-condensing

Certification:CE

System compatibility

PCI-6154 belongs to NI S Series multifunction DAQ platform.It works with standard PCI industrial PC,supported by NI-DAQmx and Traditional NI-DAQ legacy driver and LabVIEW,widely used for isolated synchronous measurement,automotive test,industrial monitoring and continuous data logging.It is spare part for legacy test equipment overhaul.

Function

PCI-6154 is S-series channel-to-channel isolated simultaneous sampling PCI DAQ board.It integrates 4-ch isolated differential analog input,4-ch isolated analog output,digital I/O and 32-bit counter functions.16-bit ADC supports per-channel 250kS/s synchronous sampling with channel isolation.PFI lines support external timing and triggering for isolated synchronous automated test systems.

Installation

Insert PCI-6154 into full-length PCI slot and fasten bracket.Connect signal wiring to 68pin SCSI terminal block.Install NI-DAQmx or Traditional NI-DAQ legacy driver.Take ESD protection before installation.

Interface

‑68-pin SCSI multi-function I/O connector

‑PCI gold finger edge connector

‑Board status indicator

Feature

PCI-6154 classic NI S-series isolated simultaneous sampling DAQ board.Typical faults:SCSI connector pin oxidation,ADC reading drift,counter timing error.Inspect analog input and digital channel before replacement.

Diagnostic

Fault phenomenon:abnormal AI reading,no AO output,digital channel failure,counting error.Check sensor wiring,PCI slot contact,DAQ driver and channel configuration.

Product Brief

PCI-6154 is NI PCI bus S Series multifunction DAQ board with 16-bit,250kS/s per channel isolated synchronous sampling,4AI,4AO and 10 DIO,for isolated synchronous voltage acquisition,automated measurement and legacy test equipment renovation.Mainly used for maintenance and replacement of old test equipment.ESD protection must be followed during handling.
