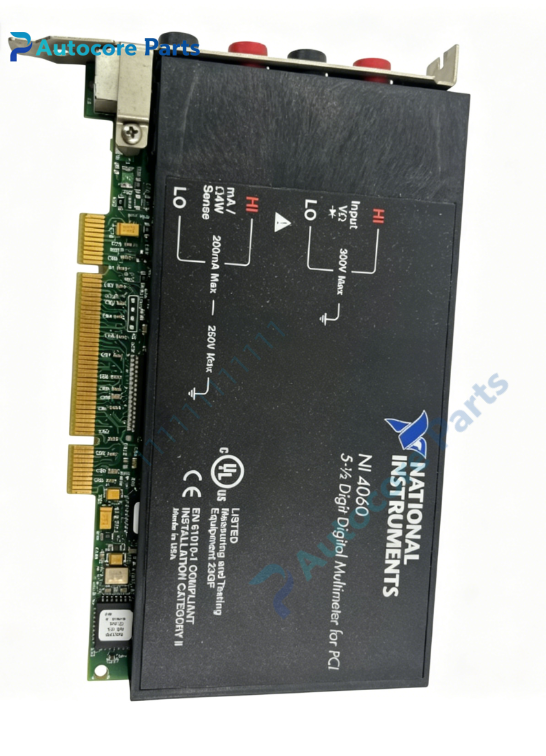

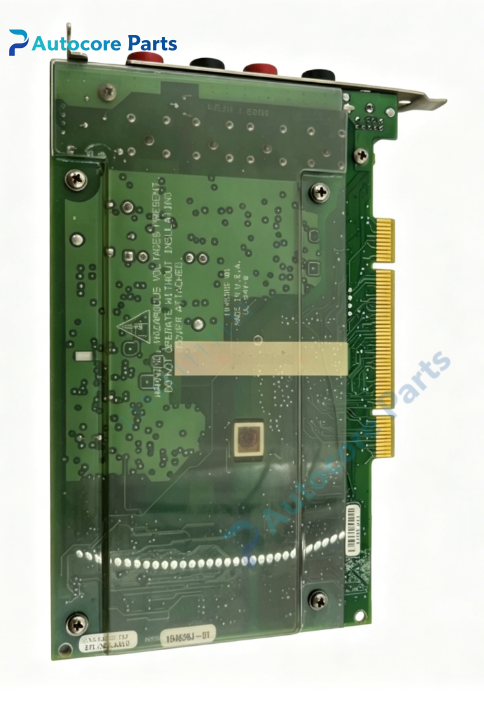

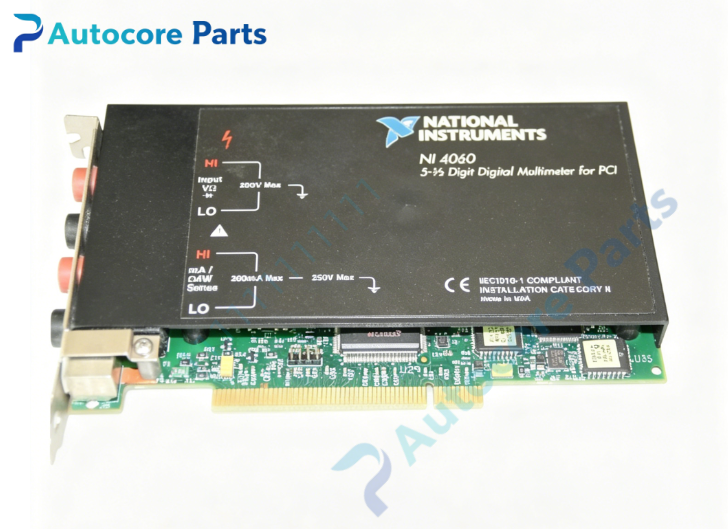

NI PCI-4060 PCI Bus 5.5-Digit Digital Multimeter Board

Technical Specifications

Model:PCI-4060

Brand:NI

Part No:777559-01

Product type:PCI Bus Digital Multimeter(DMM) Board

Resolution:5.5 digit

Measurement:DC/AC voltage,DC/AC current,2-wire & 4-wire resistance,frequency,diode test

True RMS bandwidth:20Hz~25kHz

Voltage range:20mV~250V

Resistance:200Ω~200MΩ,4-wire mode for low resistance

Function:auto/manual ranging,hardware trigger

Bus:32-bit PCI

Dimension:175mm107mm20mm

Weight:0.21kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +70℃

Relative humidity:10~90% non-condensing

Certification:CE

System compatibility

PCI-4060 belongs to NI PCI instrument platform.It works with standard PCI industrial PC,driven by NI-DMM driver,supported by LabVIEW and Measurement Studio,widely used for automated calibration,component test and precise signal measurement in industrial test systems.It is spare part for legacy test equipment overhaul.

Function

PCI-4060 is PCI-based high precision digital multimeter board.It integrates multi measurement functions including true RMS AC measurement and 4-wire resistance to eliminate lead error.Auto range simplifies setup,hardware trigger supports synchronized sampling together with DAQ or vision hardware for automatic test benches.

Installation

Insert PCI-4060 into computer PCI slot and fasten bracket.Connect test probes to banana terminal connector.Install NI-DMM instrument driver.Take ESD protection before installation.

Interface

‑Banana terminal multi-function measurement connector

‑PCI gold finger edge connector

‑Board status indicator

Feature

PCI-4060 classic NI PCI digital multimeter board.Typical faults:terminal contact oxidation,internal fuse blown,measurement circuit drift.Inspect input terminals and calibration status before replacement.

Diagnostic

Fault phenomenon:no reading,unstable measurement,overrange alarm.Check test cable,probe,PCI slot contact,NI-DMM driver and input signal overload.

Product Brief

PCI-4060 is NI PCI bus 5.5-digit DMM board supporting true RMS AC and 4-wire resistance measurement,for PC-based automatic component testing,calibration and legacy automated test equipment renovation.Mainly used for maintenance and replacement of old test equipment.ESD protection must be followed during handling.
