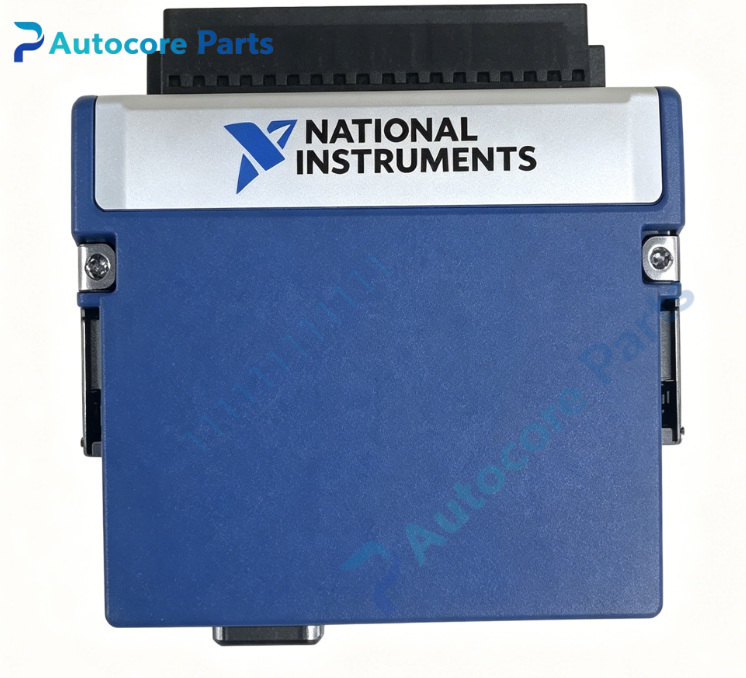

NI NI-9205 C Series 16-bit 32-Channel Voltage Input DAQ Module

Technical Specifications

Model:NI-9205

Brand:NI

Part No:779357-01(D-SUB),785184-01(spring terminal)

Product type:C Series Analog Voltage Input Module

Resolution:16-bit multiplexed ADC

Analog Input:32 single-ended /16 differential

Input ranges:±0.2V,±1V,±5V,±10V

Max sampling rate:250kS/s

Protection:±30V overvoltage,channel-to-earth isolation

Connector:37pin D-SUB or 36pin spring terminal

Dimension:90mm50mm19mm

Weight:158g

Operating temperature:-40℃ ~ +70℃

Storage temperature:-55℃ ~ +85℃

Relative humidity:10~90% non-condensing

Certification:CE,UL

System compatibility

NI-9205 belongs to NI C series DAQ platform.It is compatible with CompactRIO and CompactDAQ chassis,supported by NI-DAQmx and LabVIEW,widely used for multi-channel DC voltage signal sampling,transducer measurement and industrial test systems.It is spare part for legacy test equipment overhaul.

Function

NI-9205 is rugged C-series high-density analog input module.It collects multi-channel voltage signals with programmable gain ranges.The isolation and overvoltage protection suppress field noise and prevent damage from miswiring,multiplexed ADC realizes high-speed sequential sampling for multi-point monitoring.

Installation

Insert NI-9205 into CompactRIO or cDAQ chassis slot,tighten front panel screw.Connect analog signal wiring to D-SUB or spring terminal.Install NI-DAQmx driver.Take ESD protection before installation.

Interface

‑37pin D-SUB / 36pin spring terminal analog connector

‑C series backplane edge connector

‑Module status LED indicators

Feature

NI-9205 classic NI C series voltage input module.Typical faults:input circuit damage,ADC reading drift,terminal pin oxidation.Inspect wiring and channel reading before replacement.

Diagnostic

Fault phenomenon:incorrect voltage reading,channel no response,measurement drift.Check signal wiring,chassis backplane connection,NI-DAQmx driver and module isolation status.

Product Brief

NI-9205 is NI C series 16-bit high-density analog input module with 32 single-ended/16 differential channels,250kS/s sampling rate,isolated design,suitable for multi-channel voltage measurement in CompactRIO and CompactDAQ test systems.Mainly used for maintenance and replacement of old test equipment.ESD protection must be followed during handling.
