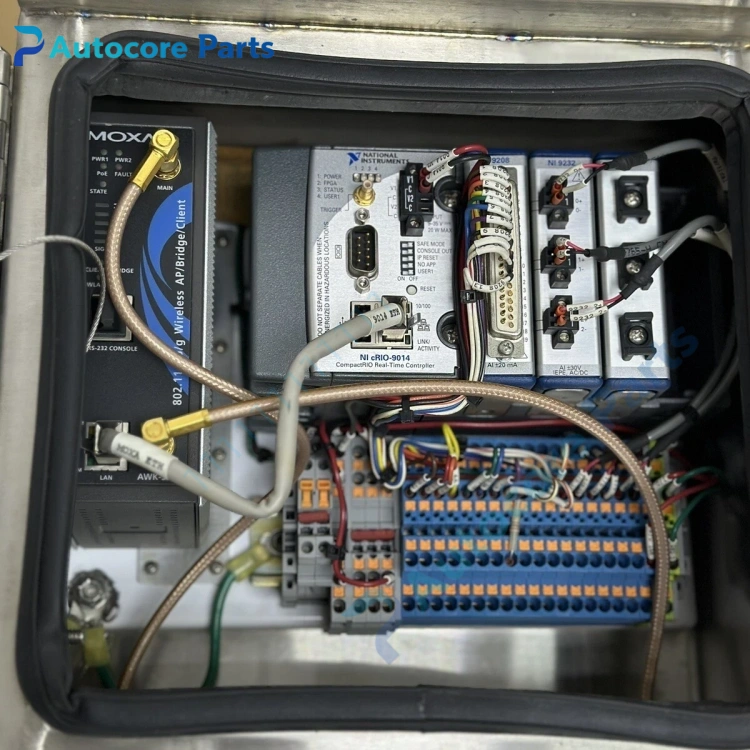

NI cRIO-9014 CompactRIO Real-Time Controller Unit

Feature & Principle

It executes deterministic real-time logic under VxWorks OS and communicates with CompactRIO FPGA chassis. It handles closed-loop control, signal logging and Ethernet communication, works with C-series I/O modules for high-speed industrial measurement and automation.

Specifications

Model: cRIO-9014 Brand: NI CPU: 400 MHz PowerPC DRAM: 128 MB Storage: 2 GB OS: VxWorks Interfaces: 1×Ethernet, 1×USB, 1×RS232, SMB trigger Power supply: 9–35 VDC Cooling: Fanless Status: Legacy / obsolete Certification: CE

Components & Diagnostics

Main processor board, flash storage, Ethernet transceiver, status LED, reset switch, power terminal. Common faults: boot failure, Ethernet communication dropout, storage wear, trigger signal abnormal.

Product Brief

cRIO-9014 real-time controller, NI test and control spare widely used for machinery monitoring, aerospace test and custom high-speed measurement systems.
