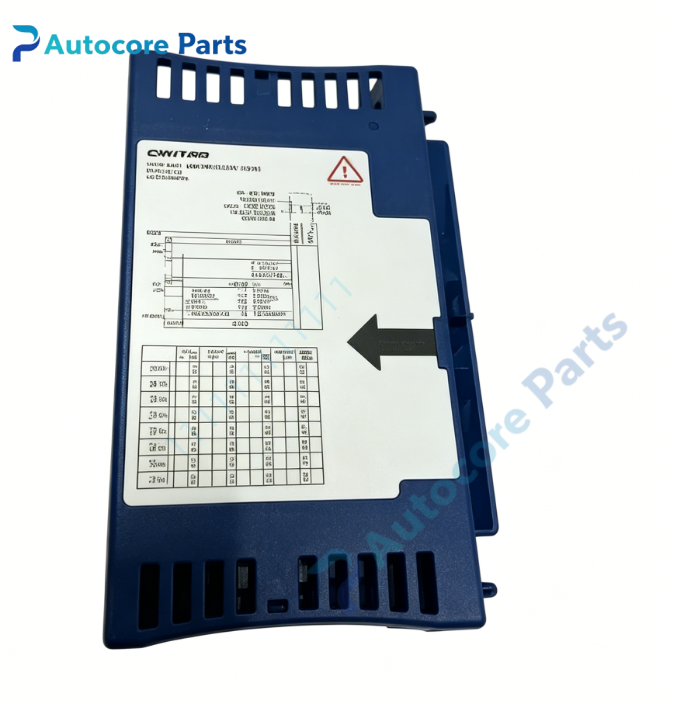

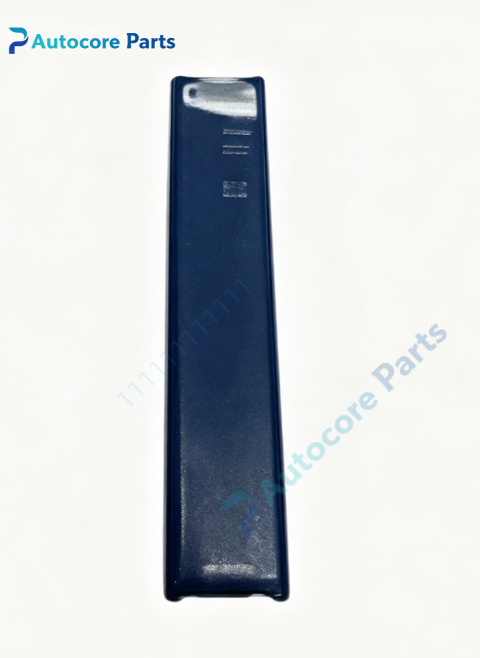

NI cFP-AI-100 Compact FieldPoint 8-Channel 12-Bit Analog Input Module

Technical Specifications

Model:cFP-AI-100

Brand:NI

Part No:cFP-AI-100

Product type:Compact FieldPoint 8-Channel 12-Bit Analog Input Module

Resolution:12-bit

Channels:8 channels,software selectable voltage or current input

Input Ranges:0–1V,0–5V,0–15V,0–30V,±1V,±5V,±15V,±30V,0–20mA,4–20mA,±20mA

Isolation:250Vrms CAT II channel-to-ground isolation

Max sampling rate:360Hz aggregate

Power consumption:1.8W

Dimension:109.5mm91.4mm25.4mm

Weight:0.13kg

Interface:Screw terminal I/O,Compact FieldPoint backplane connector

Operating temperature:-40℃ ~ +70℃

Storage temperature:-55℃ ~ +125℃

Relative humidity:10~90% non-condensing

Certification:CE

System compatibility

cFP-AI-100 belongs to NI Compact FieldPoint platform.It works with cFP series backplanes and real-time controllers,supported by LabVIEW and NI FieldPoint drivers,widely used for industrial sensor,pressure,flow and temperature signal acquisition.It is spare part for legacy automation equipment overhaul.

Function

cFP-AI-100 is hot-swappable 8-channel analog input module for Compact FieldPoint system.It measures industrial voltage and 4-20mA current signals with channel-to-ground isolation to suppress interference.Onboard signal conditioning and diagnostics,can be replaced without shutting down the whole backplane system.

Installation

Insert cFP-AI-100 into Compact FieldPoint backplane,tighten captive mounting screws.Wire sensor signal to front screw terminals.Take ESD protection before installation,supports hot swap operation.

Interface

‑Front screw terminal block for analog signals

‑Compact FieldPoint backplane connector

‑Module status LED indicators

Feature

cFP-AI-100 classic NI isolated analog input I/O module.Typical faults:terminal block corrosion,ADC circuit damage,backplane pin oxidation.Inspect terminals and test channel reading before replacement.

Diagnostic

Fault phenomenon:no channel reading,unstable signal,measurement deviation.Check wiring and terminal tightness,verify backplane communication and module status LED.

Product Brief

cFP-AI-100 is NI Compact FieldPoint 8-channel 12-bit analog input module,supporting voltage and 4-20mA current measurement,250Vrms isolation,hot swappable,wide temperature range for industrial process signal collection.Mainly used for maintenance and replacement of old industrial automation equipment.ESD protection must be followed during handling.
