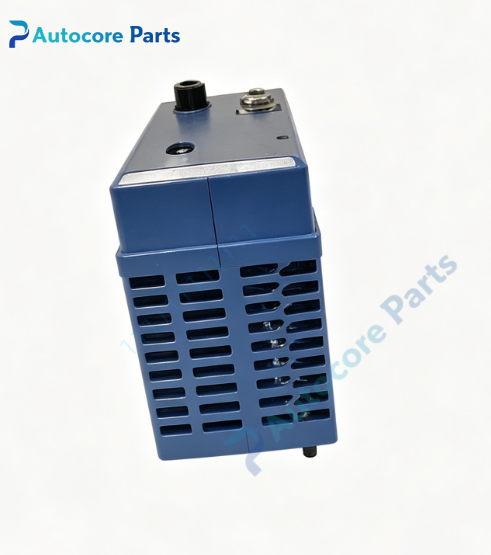

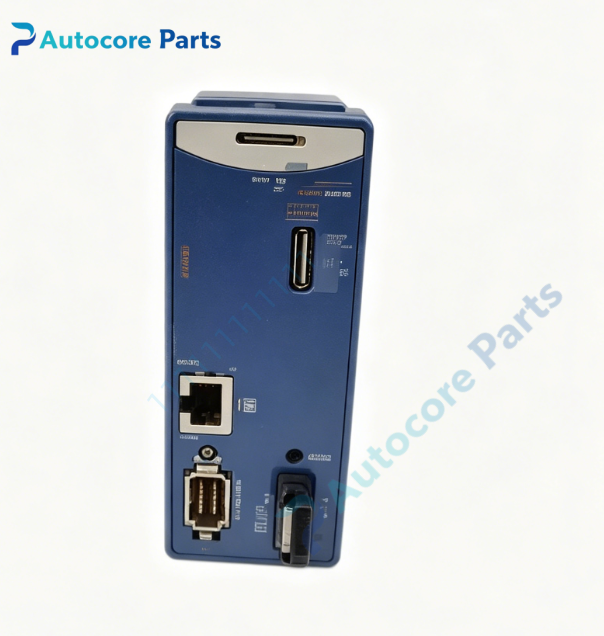

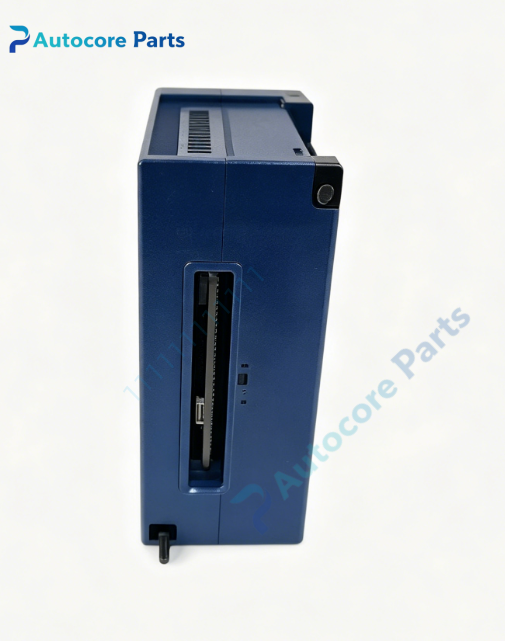

NI cFP-2200 Compact FieldPoint Real-Time Ethernet Controller

Technical Specifications

Model:cFP-2200

Brand:NI

Part No:cFP-2200

Product type:Compact FieldPoint Real-Time Programmable Automation Controller

Bus:10/100Base-TX Ethernet,1×RS232 serial port

Memory:128MB DRAM,128MB non-volatile flash

Power supply:11~30V DC

Dimension:112mm90mm58mm

Weight:0.278kg

Interface:RJ45 Ethernet port,RS232 D-Sub connector,dual redundant power screw terminals,backplane connector for I/O modules,status LED indicators

Operating temperature:-40℃ ~ +70℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:10~90% non-condensing

Certification:CE,Class I Division 2

System compatibility

cFP-2200 belongs to NI Compact FieldPoint platform.It mates with Compact FieldPoint I/O backplane and modules,runs LabVIEW Real-Time,supports embedded control,data logging and network communication,widely used in distributed industrial control and remote monitoring systems.It is spare part for legacy automation equipment overhaul.

Function

cFP-2200 is rugged real-time programmable automation controller for Compact FieldPoint backplane.It executes LabVIEW RT embedded programs independently,realizes local closed-loop control and data recording.Equipped with single RS232 port and auto-negotiation 10/100M Ethernet,supports redundant power input for stable operation in harsh factory field environments.

Installation

Mount cFP-2200 on DIN rail.Connect to Compact FieldPoint backplane,wire 11~30V DC power,plug RJ45 network cable.Take ESD protection before installation.

Interface

‑RJ45 10/100M Ethernet port

‑RS232 D-Sub serial connector

‑Dual DC power screw terminals

‑Compact FieldPoint backplane connector

‑Status & user configurable LED indicators

Feature

cFP-2200 classic NI real-time industrial controller.Typical faults:Ethernet chip failure,flash memory damage,backplane pin oxidation.Clean backplane contacts and test firmware communication before replacement.

Diagnostic

Fault phenomenon:controller boot failure,network offline,I/O module communication error.Check DC power supply,verify backplane contact,test Ethernet and RT firmware status.

Product Brief

cFP-2200 is NI Compact FieldPoint real-time PAC controller with 10/100M Ethernet and one RS232 port,128MB memory,running LabVIEW RT for standalone industrial control,DIN rail mounting,support redundant power input.Mainly used for maintenance and replacement of old industrial automation equipment.ESD protection must be followed during handling.
