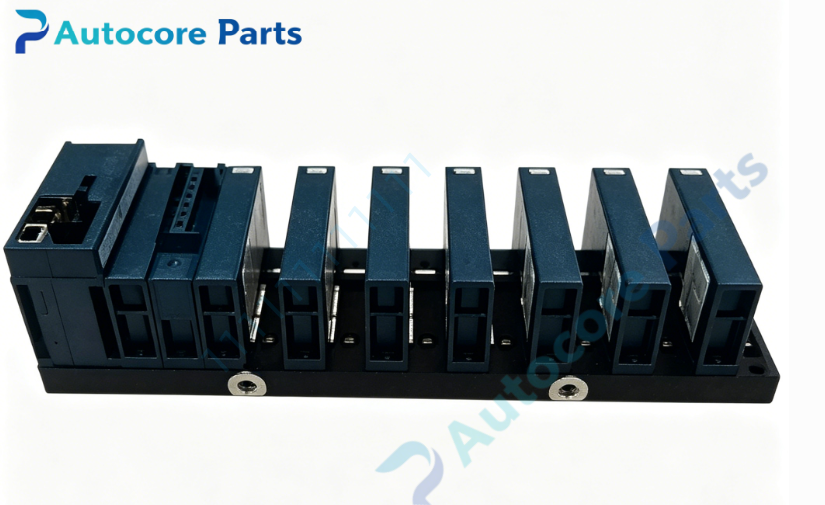

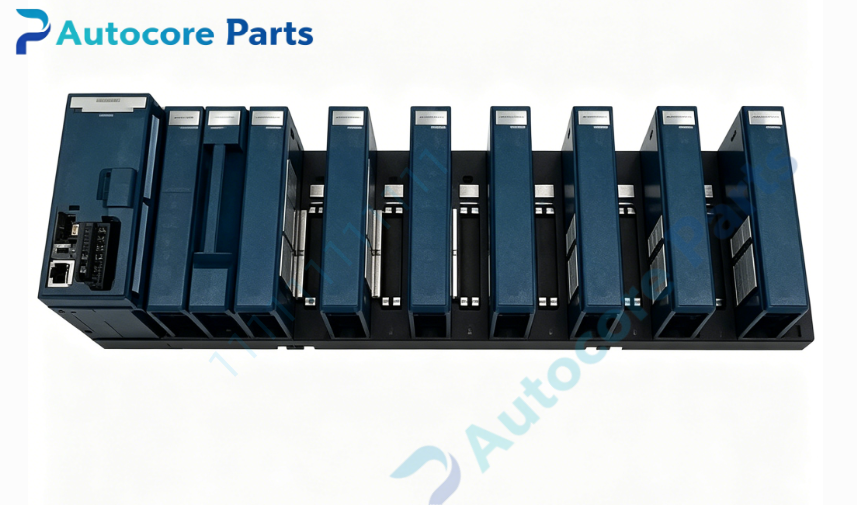

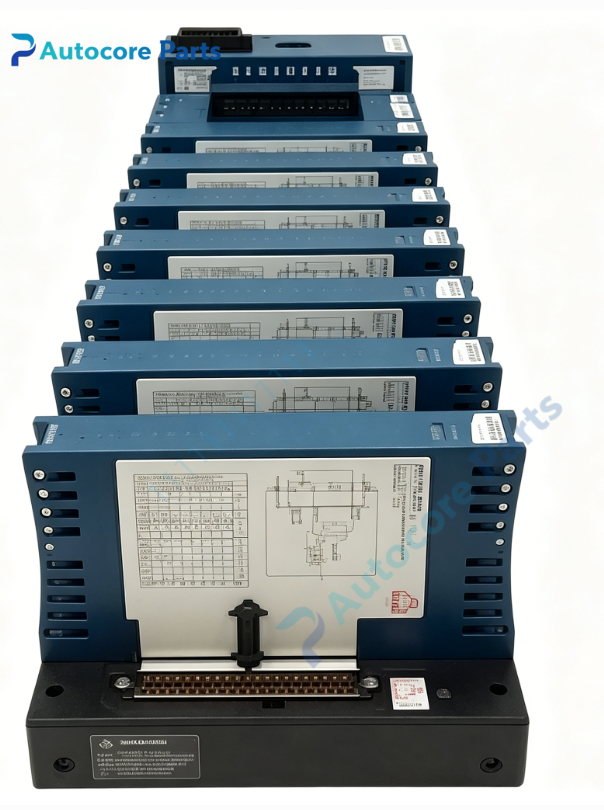

NI cFP-2100 Compact FieldPoint Real-Time Ethernet Controller

Technical Specifications

Model:cFP-2100

Brand:NI

Part No:cFP-2100

Product type:Compact FieldPoint Real-Time Programmable Automation Controller

Bus:10/100Base-TX Ethernet,1×RS232 serial port

CPU:188MHz x86 processor

Memory:64MB DRAM,64MB non-volatile flash

Power supply:11~30V DC

Dimension:112mm90mm58mm

Weight:0.278kg

Interface:RJ45 Ethernet port,RS232 D-Sub connector,DC power screw terminals,backplane connector for I/O modules

Operating temperature:-40℃ ~ +70℃

Storage temperature:-55℃ ~ +125℃

Relative humidity:10~90% non-condensing

Certification:CE,Class I Division 2

System compatibility

cFP-2100 belongs to NI Compact FieldPoint platform.It mates with Compact FieldPoint I/O backplane and modules,runs LabVIEW Real-Time,supports embedded control,data logging and network communication,widely used in distributed industrial control and remote monitoring systems.It is spare part for legacy automation equipment overhaul.

Function

cFP-2100 is rugged real-time programmable automation controller for Compact FieldPoint backplane.It executes LabVIEW RT embedded programs independently,realizes local closed-loop control and data recording.Equipped with single RS232 port and 10/100M Ethernet,supports web server and FTP file transmission for industrial field applications.

Installation

Mount cFP-2100 on DIN rail.Connect to Compact FieldPoint backplane,wire 11~30V DC power,plug RJ45 network cable.Take ESD protection before installation.

Interface

‑RJ45 10/100M Ethernet port

‑RS232 D-Sub serial connector

‑DC power screw terminals

‑Compact FieldPoint backplane connector

Feature

cFP-2100 classic NI real-time industrial controller.Typical faults:Ethernet chip failure,flash memory damage,backplane pin oxidation.Clean backplane contacts and test firmware communication before replacement.

Diagnostic

Fault phenomenon:controller boot failure,network offline,I/O module communication error.Check DC power supply,verify backplane contact,test Ethernet and RT firmware status.

Product Brief

cFP-2100 is NI Compact FieldPoint real-time PAC controller with 10/100M Ethernet and one RS232 port,running LabVIEW RT for standalone industrial control,DIN rail mounting.Mainly used for maintenance and replacement of old industrial automation equipment.ESD protection must be followed during handling.
