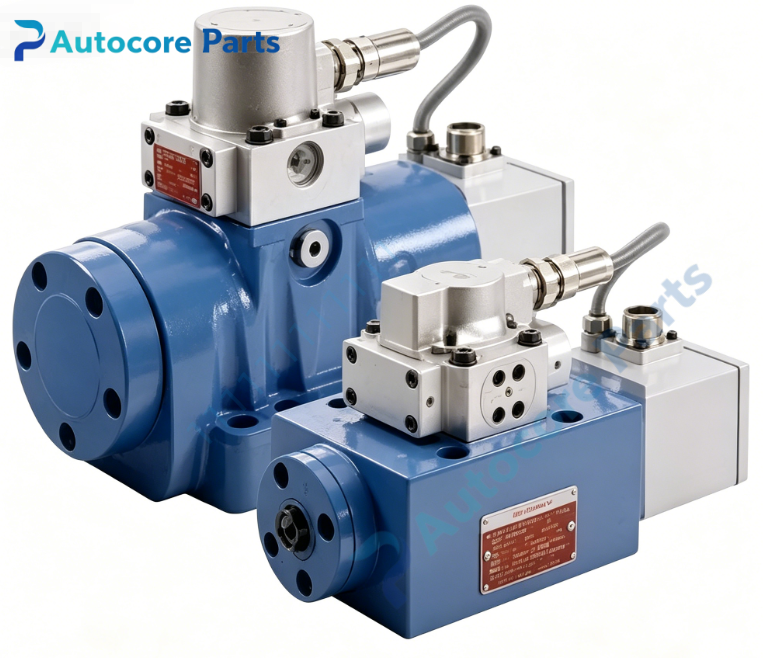

MOOG 79F180C3 79F Series Three-stage Electro-hydraulic Feedback Hydraulic Servo Valve

Technical Specifications

Model:79F180C3

Brand:MOOG

Product type:79F Series Three-stage Electro-hydraulic Feedback Hydraulic Servo Valve

Structure:Three-stage amplification,pilot two-stage + main spool,main spool electric position feedback

Max working pressure:350bar

Rated control signal:±10V analog signal

Working medium:Mineral hydraulic oil

Connector:Multi-pin aviation electrical connector

Function:Convert analog electric signal into large proportional hydraulic flow,closed-loop position,force and pressure control for heavy equipment

Dimension:310mm165mm120mm

Weight:8.6kg

Operating temperature:-20℃ ~ +120℃

Storage temperature:-40℃ ~ +130℃

Relative humidity:10~90% non-condensing

Certification:CE

System compatibility

79F180C3 belongs to MOOG 79F series high flow three-stage servo valve.It applies to large material test bench,heavy hydraulic press,ship hydraulic power system and simulation loading rig,widely used in high-flow closed-loop hydraulic control system.It is spare part for legacy heavy hydraulic equipment overhaul.

Function

79F180C3 is three-stage high flow servo valve with main spool electric feedback.It adopts pilot two-stage pre-amplification,main spool with electric position feedback,features excellent linearity and low hysteresis,output large hydraulic flow proportional to input analog signal for heavy load hydraulic regulation.

Installation

Mount valve on standard hydraulic manifold,tighten mounting bolts to specified torque.Connect hydraulic oil pipeline and electrical control wiring.Complete oil flushing,parameter calibration and performance test before commissioning.Keep clean during handling,prevent oil contamination.

Interface

‑Multi-pin aviation electrical connector

‑Hydraulic P,T,A,B pilot oil ports

‑Valve identification label

Feature

MOOG 79F series heavy-duty high flow three-stage servo valve.Typical faults:pilot stage blockage,feedback sensor failure,spool sticking,internal leakage.Inspect oil cleanliness and feedback signal before replacement.

Diagnostic

Fault phenomenon:output flow abnormal,zero drift,slow response,no action.Check oil contamination,electrical wiring,feedback sensor and spool condition.

Product Brief

79F180C3 is MOOG 79F series three-stage electro-hydraulic feedback hydraulic servo valve with large flow and robust structure,suitable for heavy-duty hydraulic test and large forming equipment,used for industrial hydraulic system maintenance and replacement.Strict oil cleanliness control is required in service.
