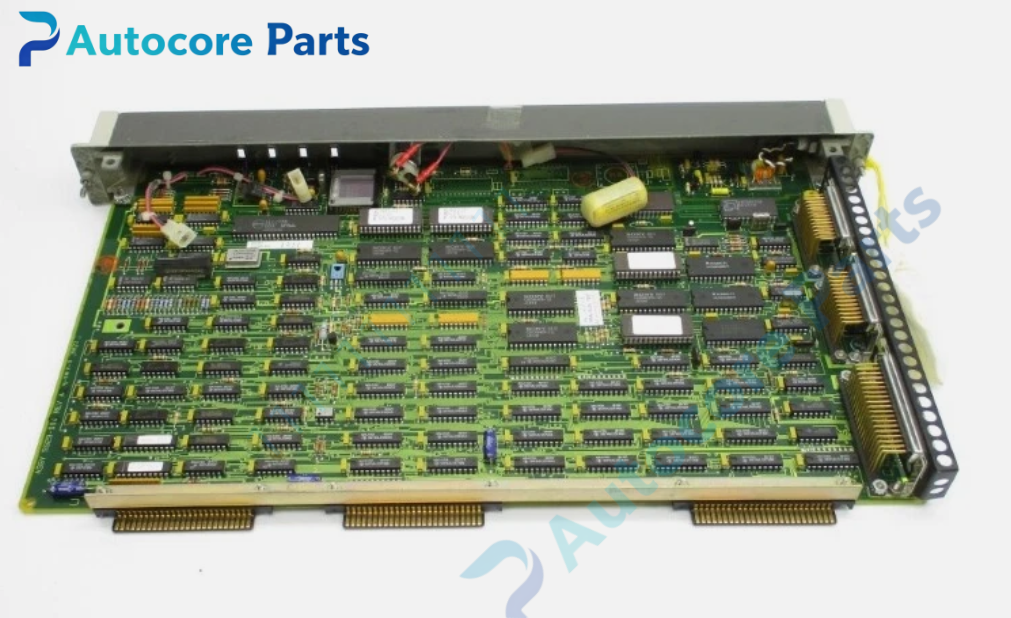

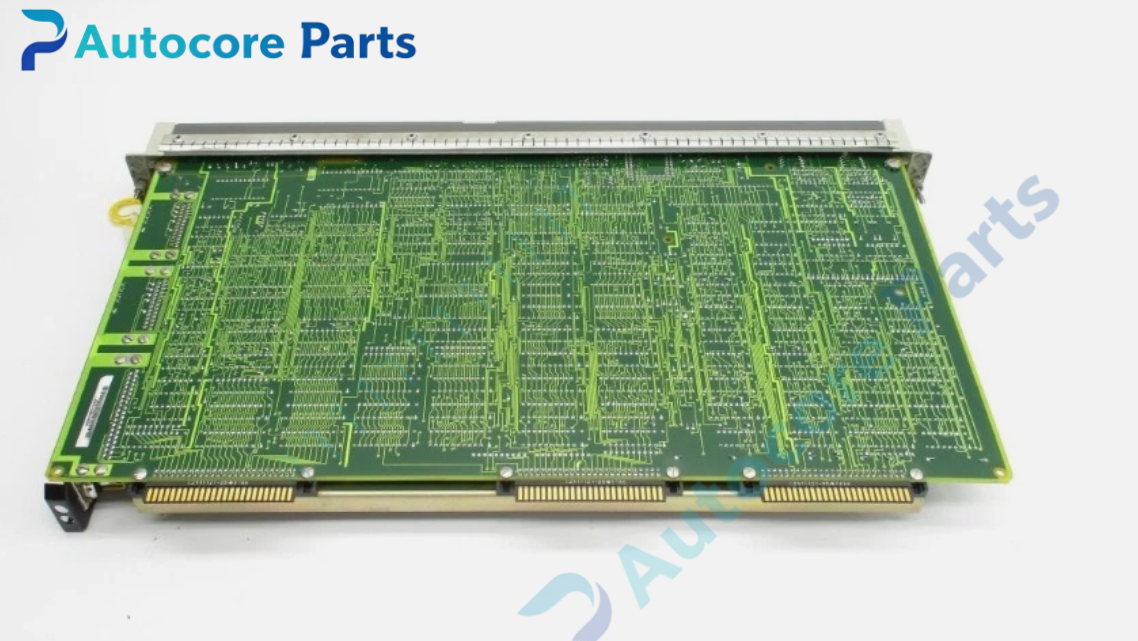

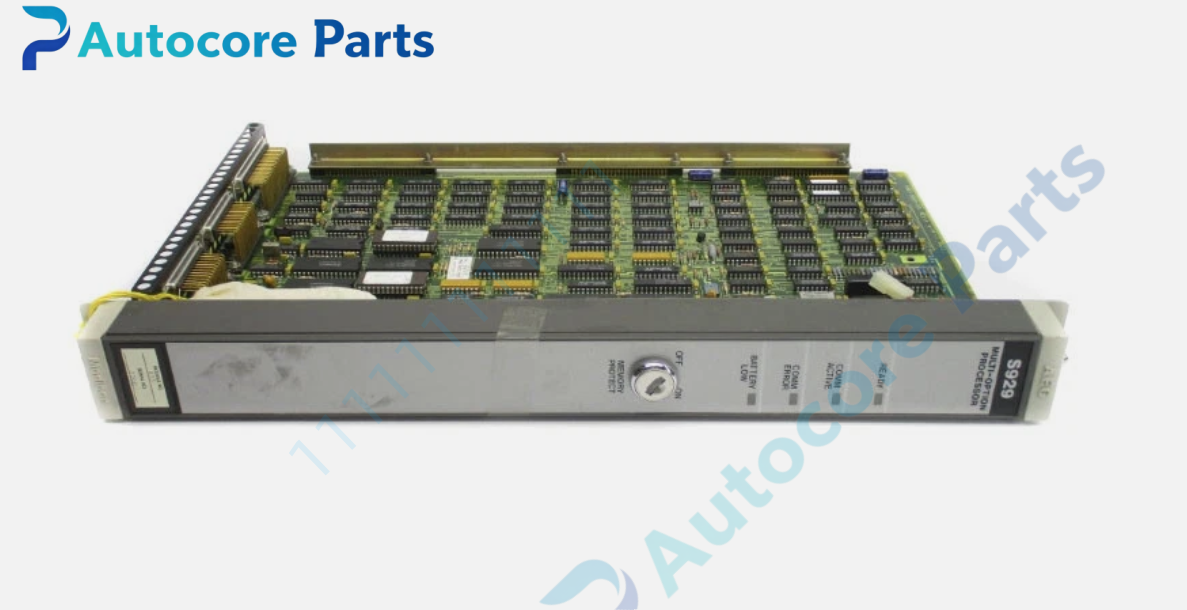

MODICON S929-000 PLC Processor

Technical SpecificationsModel:S929-000 Brand:MODICON Product Type:S929 Series Multi-Option PLC Processor Module Backplane Power:5V DC supplied by rack backplane Mounting:Backplane rack slot mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:1.9kg Dimension:260mm140mm30mm Protection:IP20

System compatibilityS929-000 belongs to MODICON S929 series multi-option processor. Compatible with MODICON 484 series backplane and corresponding I/O modules. It can connect HMI and upper monitoring equipment via serial communication interface. Suitable for manufacturing,energy management,conveyor line and medium-sized process control renovation and replacement as industrial spare part.

FunctionS929-000 PLC multi-option processor module. It executes user ladder logic program,collects discrete and analog signals from I/O modules,calculates control algorithm and outputs control instructions to field actuators. It supports serial communication for data exchange with upper computer and operator terminals. Built-in hardware self-diagnosis,program storage and backup battery data retention function. Widely used for medium-scale industrial automation logic control, serving as reliable PLC CPU spare part.

InstallationCut off rack power before installation. Insert S929-000 processor module into MODICON backplane slot and lock the card. Check gold finger contact condition. Connect serial communication cable. Download user program,configure I/O allocation and communication parameters,complete online running test before formal operation.

InterfaceBackplane bus connector,serial communication port,run/fault/battery status LED indicators for S929-000 MODICON multi-option processor module.

FeatureMODICON S929-000 multi-option processor,industrial grade robust design,real-time hardware fault diagnosis,backup battery for memory retention,standard single slot rack design,anti-interference design for industrial workshop environment. This discontinued legacy industrial spare part used for old MODICON 484 PLC system main control maintenance and replacement.

DiagnosticModule not recognized: check rack power supply,backplane contact and module insertion for S929-000. PLC fault alarm: check program error,memory failure and I/O short circuit. Serial communication abnormal: check communication cable,station address and grounding. Program lost: inspect backup battery aging and battery replacement. Intermittent fault: check backplane power stability and internal circuit aging.

Product BriefS929-000 is MODICON S929 series multi-option PLC processor for MODICON 484 PLC system. It executes user control logic and manages I/O signal processing,classic spare part for legacy MODICON industrial automation equipment overhaul.

Disclaimer: All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
