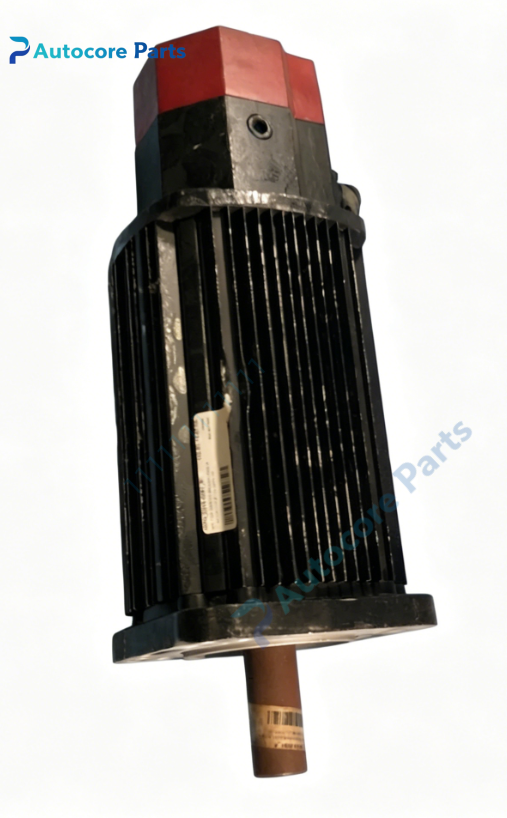

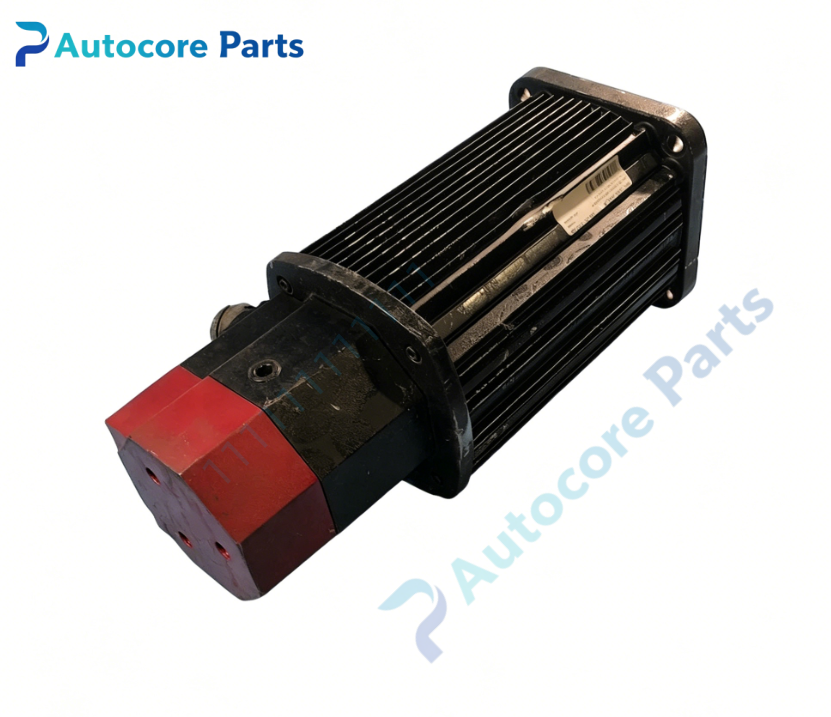

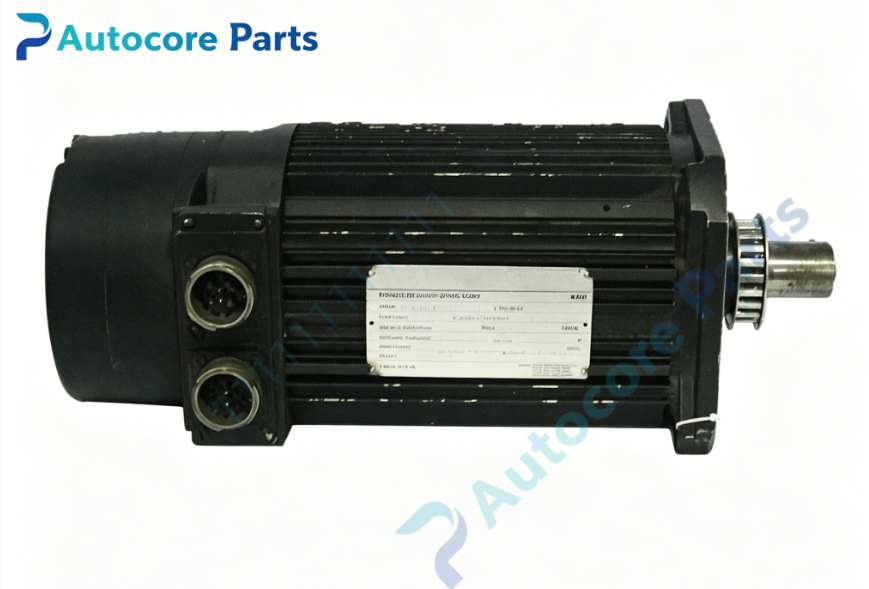

MODICON CGP31-R Servo Motor

Technical SpecificationsModel:CGP31-R Brand:MODICON(Schneider) Product Type:CGP31 Series Brushless AC Servo Motor Feedback:Built-in incremental encoder Mounting:Flange mounting Power Supply:Three-phase AC Cooling:Natural cooling Operating temperature:0℃ ~ +40℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:3.8kg Dimension:220mm130mm112mm Protection Grade:IP65

System compatibilityCGP31-R belongs to MODICON CGP31 series brushless AC servo motor. Compatible with MODICON DR series servo amplifier and MM series motion control modules,can cooperate with MODICON 984 PLC automation system. Suitable for machine tools,packaging machinery,textile equipment,automated assembly lines high precision positioning and multi-axis synchronous motion renovation and replacement as industrial spare part.

FunctionCGP31-R brushless AC servo motor. It receives speed and position command signals from servo drive and converts electric energy into mechanical rotary motion. The built-in incremental encoder feeds back real-time speed and position signal to servo drive to form closed-loop control. It features fast dynamic response and stable torque output for precise positioning,electronic cam and synchronous transmission. Widely used as power drive for high precision automation equipment, serving as reliable servo motor spare part.

InstallationCut off servo main power before installation. Fix CGP31-R servo motor on mechanical flange. Connect motor power cable and encoder feedback cable between motor and servo drive. Verify wiring sequence,set motor parameters and complete servo auto-tuning and motion test before formal operation.

InterfaceMotor power terminal,encoder feedback terminal,protective earth terminal for CGP31-R MODICON AC servo motor.

FeatureMODICON CGP31-R brushless servo motor,compact flange structure,high dynamic response,incremental encoder closed-loop feedback,IP65 motor housing protection,industrial anti-interference design. This discontinued legacy industrial spare part used for old MODICON multi-axis motion automation system maintenance and replacement.

DiagnosticMotor no rotation: check servo drive power supply,enable signal and wiring sequence for CGP31-R. Motor abnormal vibration: inspect encoder wiring,parameter gain setting and mechanical load jamming. Overheat alarm: check ambient temperature,heat dissipation and overload condition. Position deviation: check encoder damage,cable shielding and grounding. Intermittent fault: check connector loose and cable aging.

Product BriefCGP31-R is MODICON CGP31 series AC brushless servo motor. It matches MODICON servo drive and motion control card to realize high-precision closed-loop motion control,classic spare part for legacy MODICON industrial motion equipment overhaul.

Disclaimer: All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
