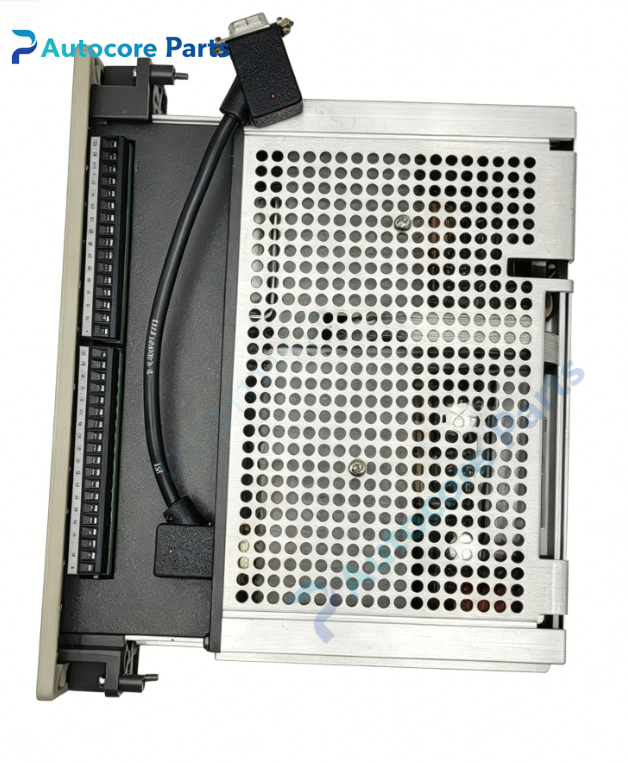

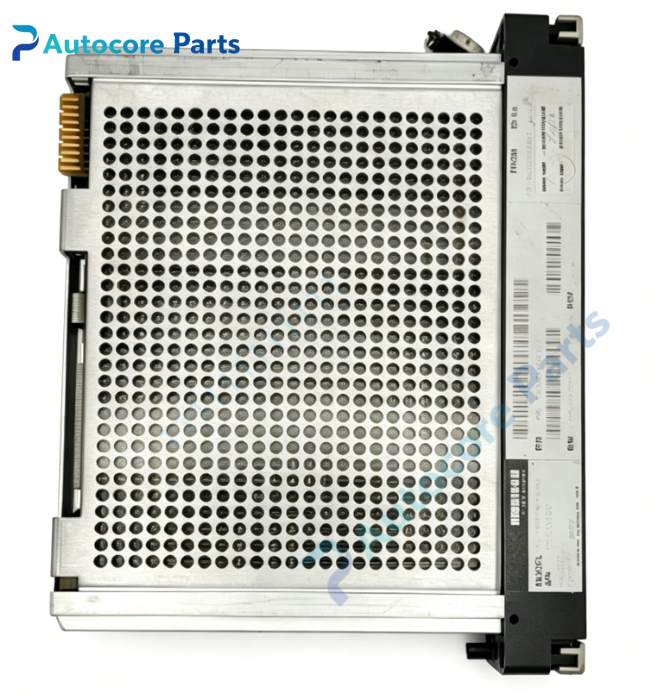

MODICON ASB984100 I/O Module

Technical SpecificationsModel:ASB984100 (AS-B984-100) Brand:MODICON Product Type:984 Series High Speed Discrete Input Output Module Signal:24V DC, combined input and output channels Input Response Time:max 100µs without filter Output Response Time:max 1ms Backplane Power:+5V DC supplied by rack backplane Mounting:Backplane rack slot mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:1.42kg Dimension:260mm140mm30mm Protection:IP20

System compatibilityASB984100 belongs to MODICON 984 series high speed I/O module. Compatible with MODICON 984 series CPU, matching backplane and RIO remote rack system. It can cooperate with other 800 and 984 series digital and analog I/O modules. Suitable for packaging machinery, textile equipment, high speed positioning control system replacement as industrial spare part.

FunctionASB984100 is high-speed combined discrete I/O module. It collects fast 24VDC field switch signals, and receives commands from PLC CPU to output high-speed on/off signals for rapid actuator control. It supports true high mode for fast response, with signal surge suppression and hardware overcurrent protection. Widely used for high-speed sequence control and quick signal acquisition, serving as reliable high speed I/O spare part.

InstallationCut off rack power before installation. Insert the ASB984100 module into MODICON backplane slot and lock the card. Wire field 24V DC input and output signals to terminal connector. Complete channel signal test via Modsoft programming software before formal operation.

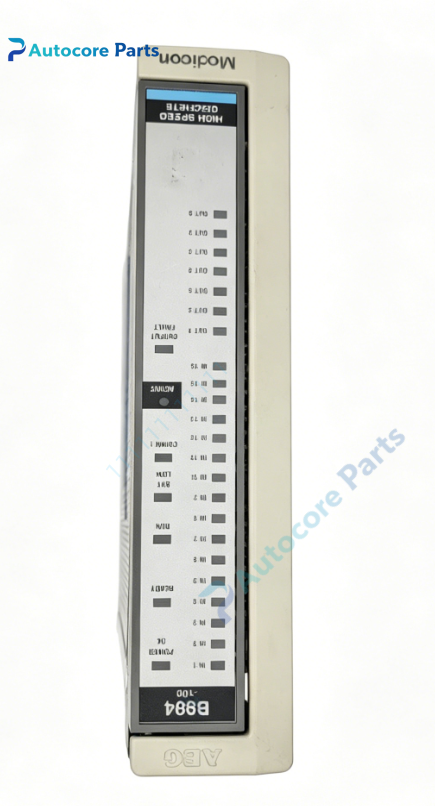

InterfaceBackplane bus connector,field signal terminal block,channel status LED indicators for ASB984100 MODICON high speed I/O module.

FeatureMODICON ASB984100 high speed discrete I/O module,ultra fast input response,true high mode support,surge and overcurrent protection,LED per channel status display,standard single slot rack design,IP20 cabinet protection. This discontinued legacy industrial spare part used for old MODICON 984 PLC system high speed control maintenance and replacement.

DiagnosticModule not recognized: check rack power supply,backplane contact and module insertion for ASB984100. Signal capture failure: inspect field 24VDC power,switch contact and terminal wiring. Output no action: check load wiring,overload protection trigger and hardware circuit. Signal unstable: check cable shielding and grounding to reduce electromagnetic interference. I/O data fault: read module diagnostic information through Modsoft programming software.

Product BriefASB984100 is MODICON 984 series high speed discrete I/O module. It provides fast signal acquisition and rapid output response for 984 PLC, classic spare part for legacy high-speed automation equipment overhaul.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
