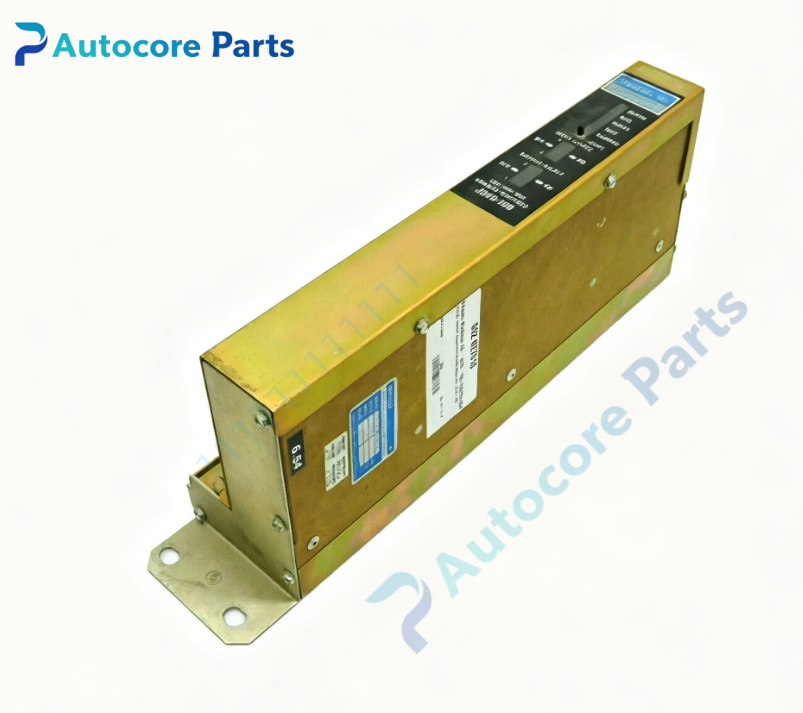

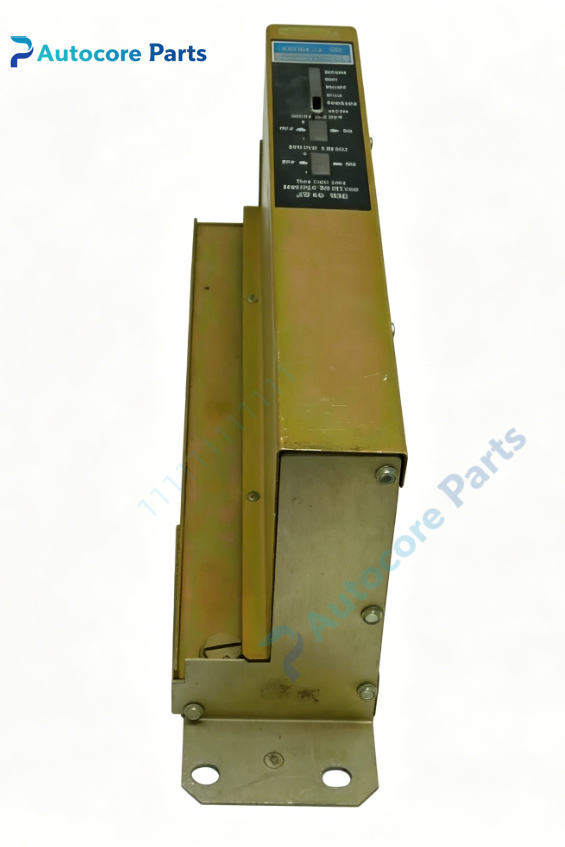

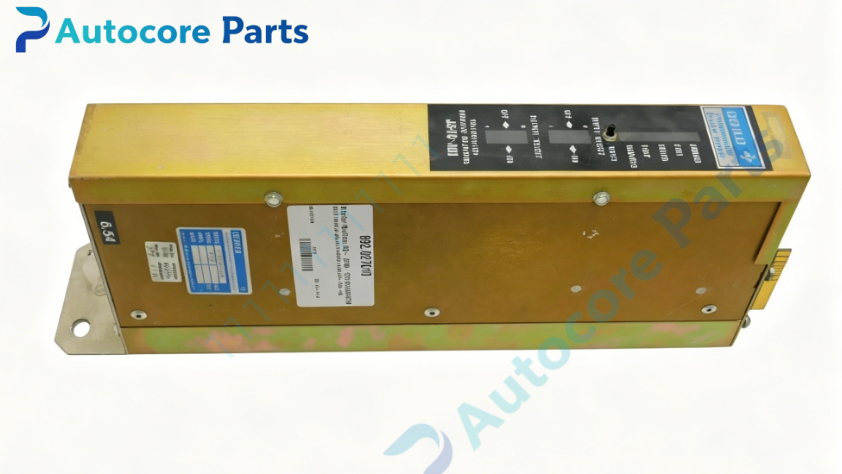

MODICON AS-J540-100 I/O Adapter Module

Technical SpecificationsModel:AS-J540-100 Brand:MODICON Product Type:I/O Adapter Interface Module Backplane Power:+5V DC supplied by rack backplane Mounting:Backplane rack slot mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:1.38kg Dimension:260mm140mm30mm Protection:IP20

System compatibilityAS-J540-100 belongs to MODICON 800 series rack I/O adapter module. Compatible with MODICON 984 series CPU,800 series backplane and RIO remote I/O racks. It can cooperate with digital input, digital output and analog I/O modules. Suitable for chemical,metallurgy,old production line distributed PLC control system renovation and replacement as industrial spare part.

FunctionAS-J540-100 is dedicated I/O adapter interface module. It establishes data communication link between main rack and remote I/O rack,transmits control command and field acquisition signals bidirectionally. It realizes signal conversion and bus isolation between local backplane and remote station,with communication fault monitoring function. Widely used for distributed field I/O expansion of PLC system,serving as reliable communication interface spare part.

InstallationCut off rack power before installation. Insert the AS-J540-100 adapter module into MODICON backplane slot and lock the card. Connect remote bus cable to the module terminal. Set station address by rotary switch,complete network communication test before formal operation.

InterfaceBackplane bus connector,remote I/O bus terminal block,communication and status LED indicators for AS-J540-100 MODICON I/O adapter module.

FeatureMODICON AS-J540-100 rack type I/O adapter,standard single slot design,bi-directional signal transmission,built-in communication monitoring,rotary switch address setting,IP20 cabinet protection. This discontinued legacy industrial spare part used for old MODICON distributed PLC system maintenance and replacement.

DiagnosticModule not recognized: check rack power supply,backplane contact and module insertion for AS-J540-100. Remote station communication loss: inspect bus cable,shielding grounding and station address setting. Signal data loss: check bus terminal resistor and cable aging condition. LED abnormal: verify module hardware and bus wiring fault. Fault alarm: read network diagnostic information through Modsoft programming software.

Product BriefAS-J540-100 is MODICON I/O adapter interface module. It serves as the bridge between main control rack and remote I/O rack for distributed automation control,classic spare part for legacy industrial control equipment overhaul.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
