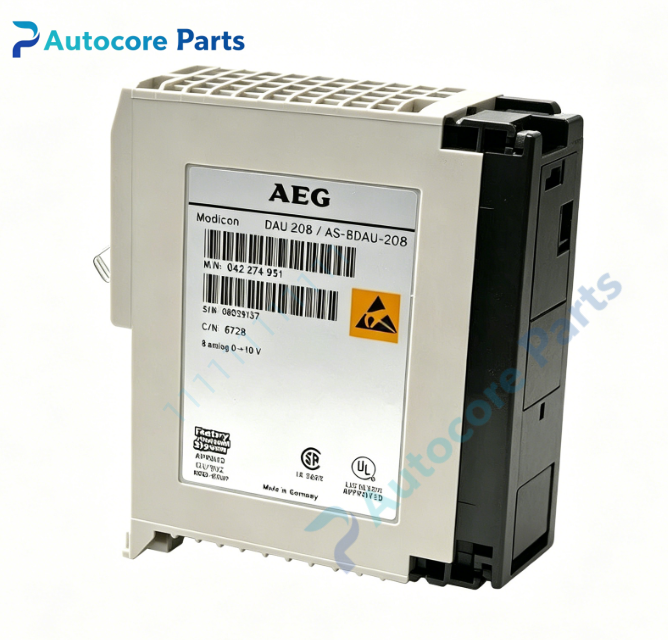

MODICON AS-BDAU-208 Analog Output Module

Technical SpecificationsModel:AS-BDAU-208 Brand:MODICON Product Type:BDAU Series 8-Channel Analog Output Module Channel:8 independent analog output channels Output Signal:0~10V DC, 4~20mA current signal Resolution:12 bits Isolation:Channel-group galvanic isolation Backplane Power:5V DC supplied by rack backplane Mounting:Backplane rack slot mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:1.1kg Dimension:260mm140mm30mm Protection:IP20

System compatibilityAS-BDAU-208 belongs to MODICON BDAU series analog output module. Compatible with MODICON 984 series CPU,backplane and 800 series I/O modules. It can be installed in local rack or remote RIO rack. Suitable for chemical plant,water treatment,metallurgy,power plant process control valve and frequency converter analog command output renovation and replacement as industrial spare part.

FunctionAS-BDAU-208 8-channel analog output module. It receives digital control value from PLC CPU and converts to analog voltage or current signal. The analog signal is sent to field actuators such as regulating valves and inverters to adjust flow,pressure and speed. Built-in channel fault detection,open/short circuit alarm and module self-diagnosis function. Widely used for industrial process analog control output, serving as reliable analog output spare part.

InstallationCut off rack and field actuator power before installation. Insert AS-BDAU-208 module into MODICON backplane slot and lock the card. Check gold finger contact condition. Connect analog output cables to field equipment terminal block. Configure module output range and channel parameters,verify signal output accuracy and complete function test before formal operation.

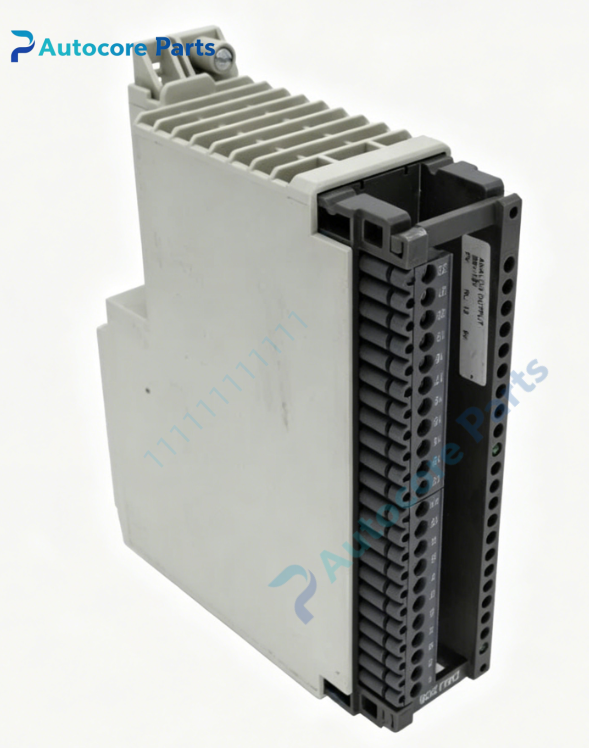

InterfaceBackplane bus connector,analog signal terminal block,channel status and fault LED indicators for AS-BDAU-208 MODICON analog output module.

FeatureMODICON AS-BDAU-208 analog output module,0-10V / 4-20mA dual signal optional,12-bit high precision,per channel fault monitoring,standard single slot rack design,anti-interference design for industrial workshop environment,IP20 cabinet protection. This discontinued legacy industrial spare part used for old MODICON 984 PLC analog control signal output maintenance and replacement.

DiagnosticModule not recognized: check rack power supply,backplane contact and module insertion for AS-BDAU-208. Analog output abnormal: check output wiring,actuator load and signal range parameter setting. Current signal loss: inspect cable breakage and loose terminal connector. Output drift: check cable shielding,grounding and electromagnetic interference. LED abnormal: verify module hardware damage and backplane power supply.

Product BriefAS-BDAU-208 is MODICON BDAU series 8-channel analog output module. It converts digital value from PLC into 4-20mA / 0-10V analog signal to control valves and inverters,classic spare part for legacy MODICON 984 automation equipment overhaul.

Disclaimer: All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
