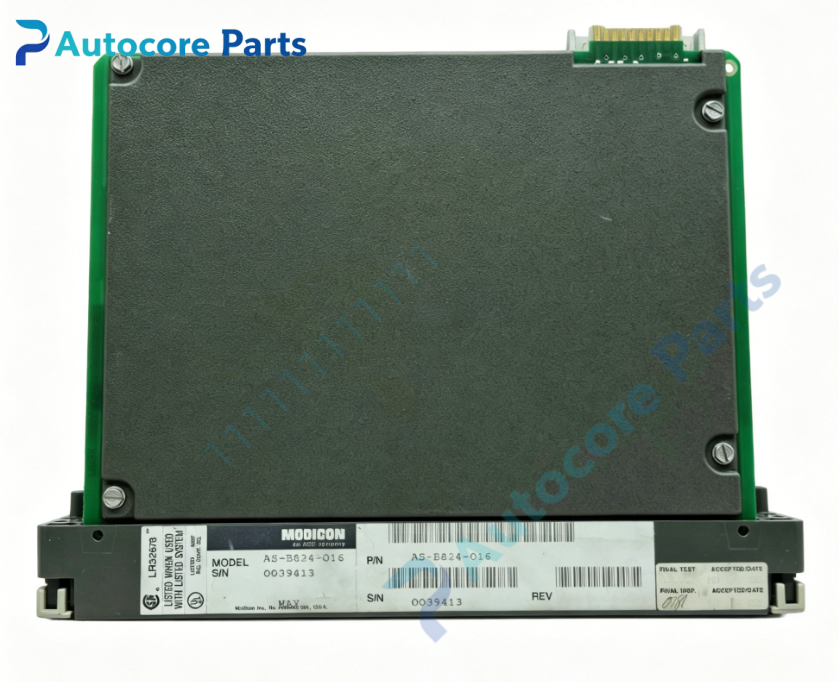

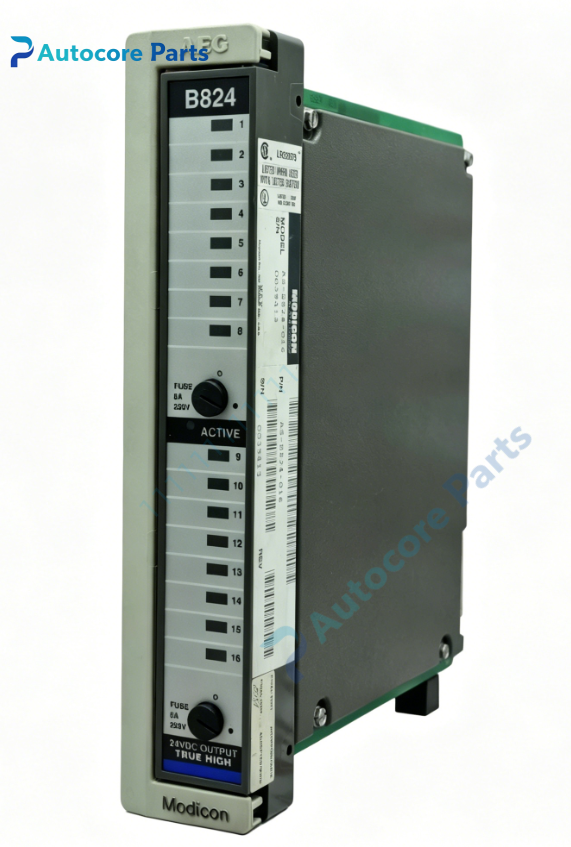

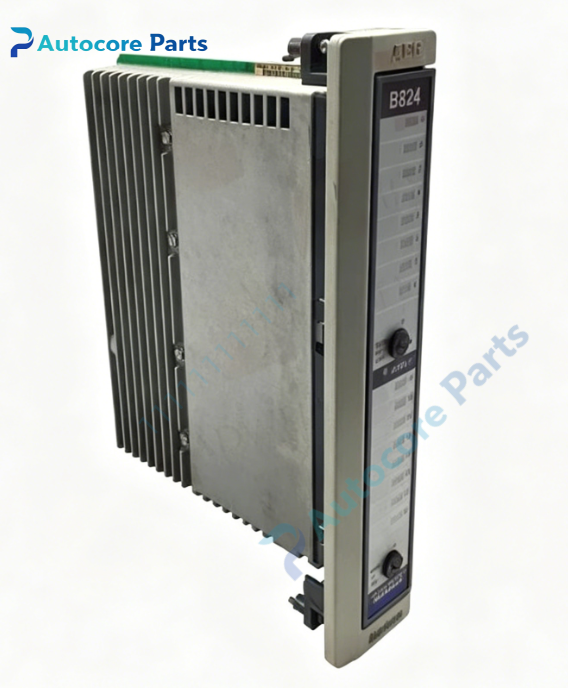

MODICON AS-B824-016 Digital Output Module

Technical SpecificationsModel:AS-B824-016 Brand:MODICON Product Type:800 Series 24V DC 16 Point True High Digital Output Module Signal Output:20~28V DC,16 points,2 groups of 8 channels Max current per point:2A continuous Backplane Power:+5V 32mA Mounting:Backplane rack slot mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:1.25kg Dimension:260mm140mm30mm Protection:IP20

System compatibilityAS-B824-016 belongs to MODICON 800 series I/O module. Compatible with MODICON 984 series CPU,800 series backplane and RIO remote rack system. It works with other 800 series digital input, analog I/O modules. Suitable for metallurgy,chemical,old production line PLC control system renovation and replacement as industrial spare part.

FunctionAS-B824-016 is 16-point true high DC digital output module. It receives control commands from PLC CPU, outputs 24V DC on/off signals to drive solenoid valves, contactors and other field DC actuators. It has channel status LED indication and group electronic overcurrent protection. Widely used for field actuator control, serving as reliable PLC I/O spare part.

InstallationCut off rack power before installation. Insert the AS-B824-016 module into MODICON 800 backplane slot and lock the card. Wire field 24V DC load signals to terminal connector. Complete channel output test via Modsoft programming software before formal operation.

InterfaceBackplane bus connector,field signal terminal block,channel status LED indicators for AS-B824-016 MODICON digital output module.

FeatureMODICON AS-B824-016 16-channel true high 24VDC output module,two groups of 8 isolated channels,electronic overcurrent protection,LED per channel status display,standard single slot rack design,IP20 cabinet protection. This discontinued legacy industrial spare part used for old MODICON 984 PLC system maintenance and replacement.

DiagnosticModule not recognized: check rack power supply,backplane contact and module insertion for AS-B824-016. No channel output: inspect field 24VDC power,actuator load and terminal wiring. Channel burn-out: check short circuit of field wiring and overload current. LED abnormal: verify channel wiring and module hardware failure. I/O data fault: read I/O diagnostic information through Modsoft programming software.

Product BriefAS-B824-016 is MODICON 800 series 16-point true high 24VDC digital output module. This I/O card sends discrete control signals to field DC loads for MODICON 984 PLC,classic spare part for legacy industrial automation equipment overhaul.
