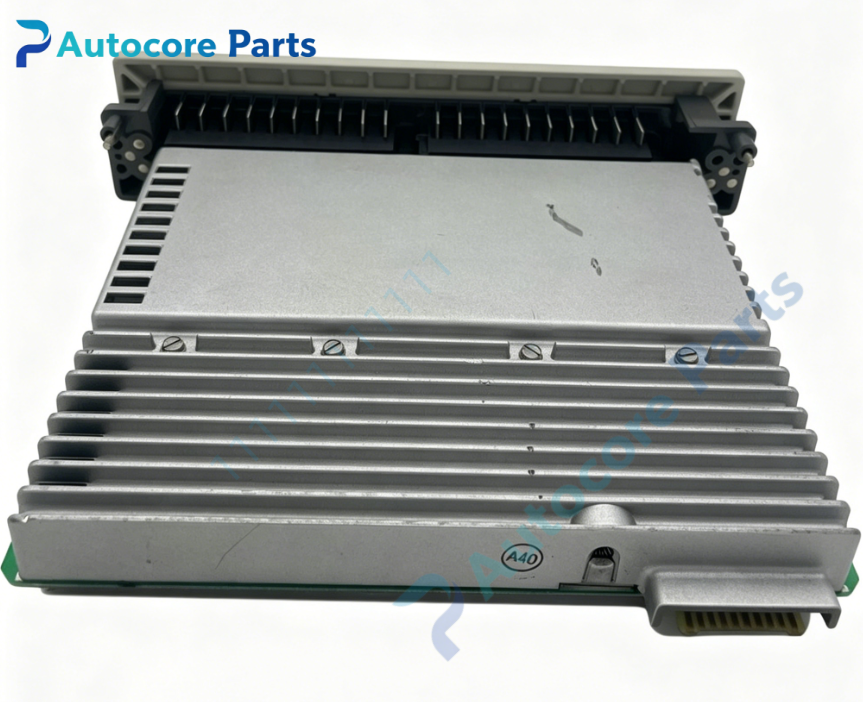

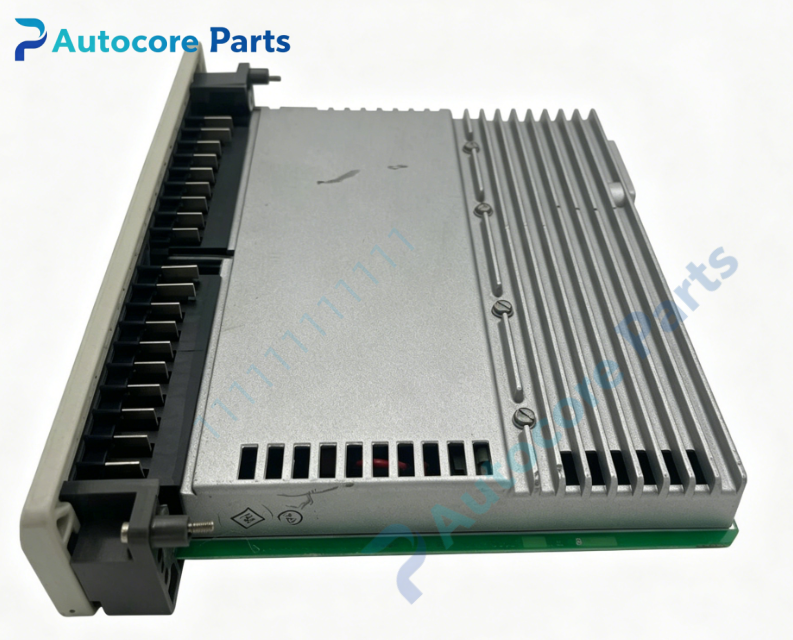

MODICON AS-B808-016 Digital Output Module

Technical SpecificationsModel:AS-B808-016 Brand:MODICON Product Type:800 Series 230V AC 16 Point Digital Output Module Signal Output:180~264V AC,47~63Hz,16 points,2 groups of 8 channels Max current per point:1A continuous Backplane Power:+5V 42mA Mounting:Backplane rack slot mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:1.18kg Dimension:260mm140mm30mm Protection:IP20

System compatibilityAS-B808-016 belongs to MODICON 800 series I/O module. Compatible with MODICON 984 series CPU,800 series backplane and RIO remote rack system. It works with other 800 series digital input, analog I/O modules. Suitable for metallurgy,chemical,old production line PLC control system renovation and replacement as industrial spare part.

FunctionAS-B808-016 is 16-point AC digital output module. It receives control commands from PLC CPU, outputs 230V AC on/off signals to drive contactors, solenoid valves and other field AC actuators. It has channel status LED indication and overcurrent protection. Widely used for field AC load actuator control, serving as reliable PLC I/O spare part.

InstallationCut off rack power before installation. Insert the AS-B808-016 module into MODICON 800 backplane slot and lock the card. Wire field 230V AC load signals to terminal connector. Complete channel output test via PLC programming software before formal operation.

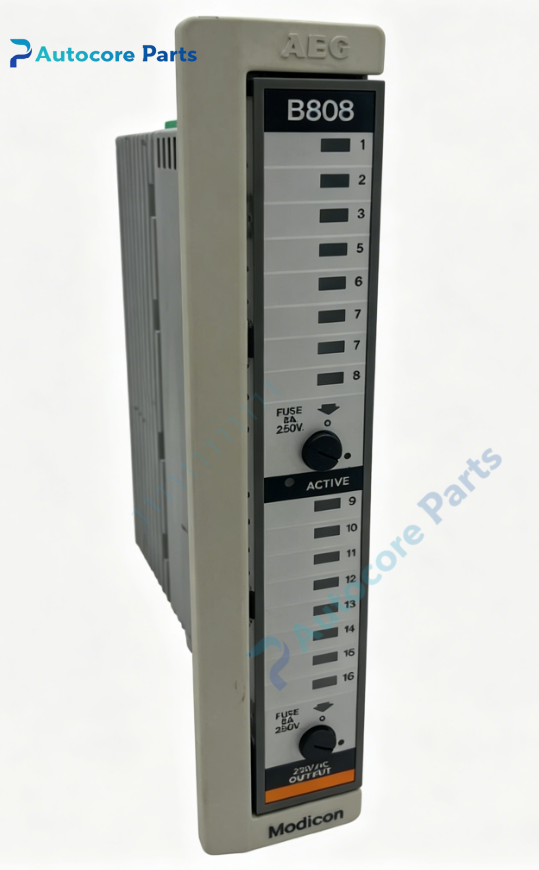

InterfaceBackplane bus connector,field signal terminal block,channel status LED indicators for AS-B808-016 MODICON digital output module.

FeatureMODICON AS-B808-016 16-channel 230VAC output module,two groups of 8 isolated channels,overcurrent protection,LED per channel status display,standard single slot rack design,IP20 cabinet protection. This discontinued legacy industrial spare part used for old MODICON 984 PLC system maintenance and replacement.

DiagnosticModule not recognized: check rack power supply,backplane contact and module insertion for AS-B808-016. No channel output: inspect field 230VAC power,actuator load and terminal wiring. Channel burnout: check short circuit of field wiring and overload current. LED abnormal: verify channel wiring and module hardware failure. I/O data fault: read I/O diagnostic information through Modsoft programming software.

Product BriefAS-B808-016 is MODICON 800 series 16-point 230VAC digital output module. This I/O card sends AC discrete control signals to field loads for MODICON 984 PLC,classic spare part for legacy industrial automation equipment overhaul.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
