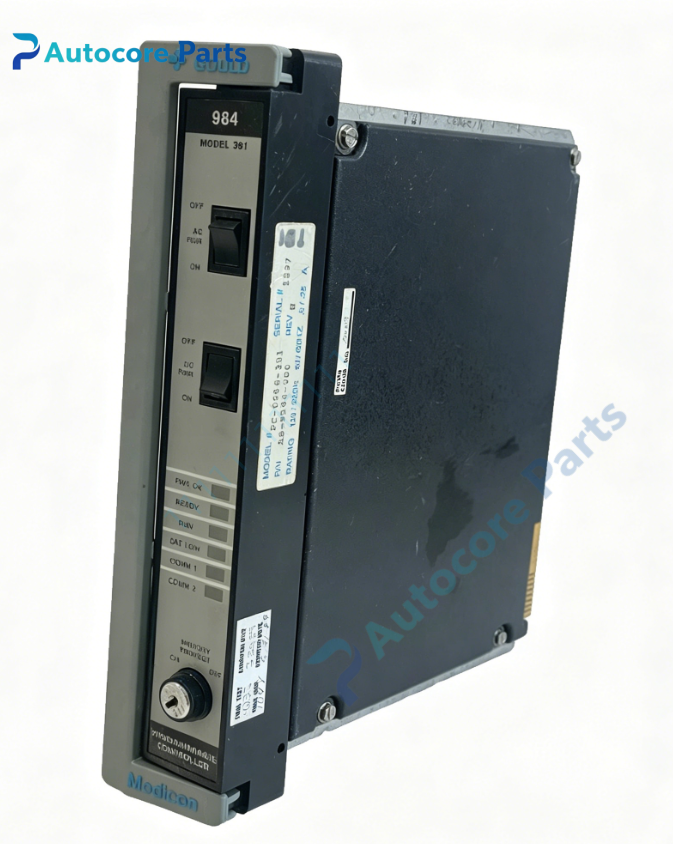

MODICON AS-9584-000 PLC CPU Controller Module

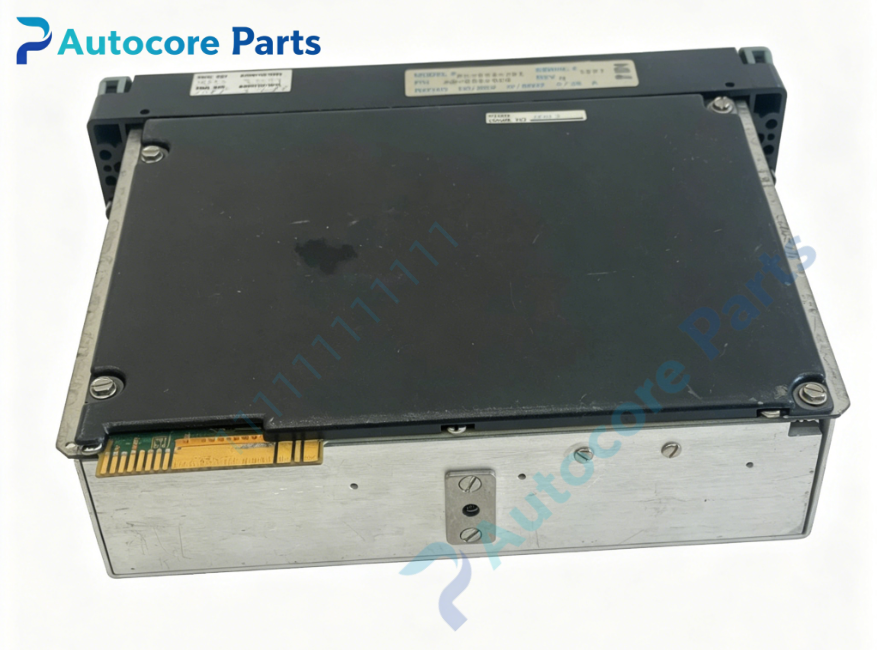

Technical SpecificationsModel:AS-9584-000 (PC-0984-381) Brand:MODICON Product Type:984 Series Model 381 Rack Mount PLC CPU Controller Program Memory:16K Power Supply:120/220V AC,50/60Hz,0.25A Backplane Bus:Gold finger rack interface Mounting:Backplane rack slot mount Operating temperature:0℃ ~ +60℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:2.7kg Dimension:310mm180mm40mm Protection:IP20

System compatibilityAS-9584-000 belongs to MODICON 984 series model 381 CPU controller. Compatible with MODICON 800 series I/O modules,matching backplane and RIO remote I/O racks. It can connect with HMI and upper monitoring system via Modbus. Suitable for chemical,water treatment,metallurgy,old production line medium-scale process control system renovation and replacement as industrial spare part.

FunctionAS-9584-000 is 16K capacity rack PLC CPU controller. It executes ladder logic control program,collects discrete and analog field signals and outputs control commands to field actuators. It supports distributed remote RIO network,memory protection key switch,hardware watchdog and lithium battery power-off data retention. Widely used for medium industrial process control, serving as reliable core control spare part.

InstallationCut off rack power before installation. Insert the AS-9584-000 CPU module into designated backplane slot and lock the module. Check backplane bus contact condition. Connect Modbus communication cable,set network station address,download PLC program and complete online test before formal operation.

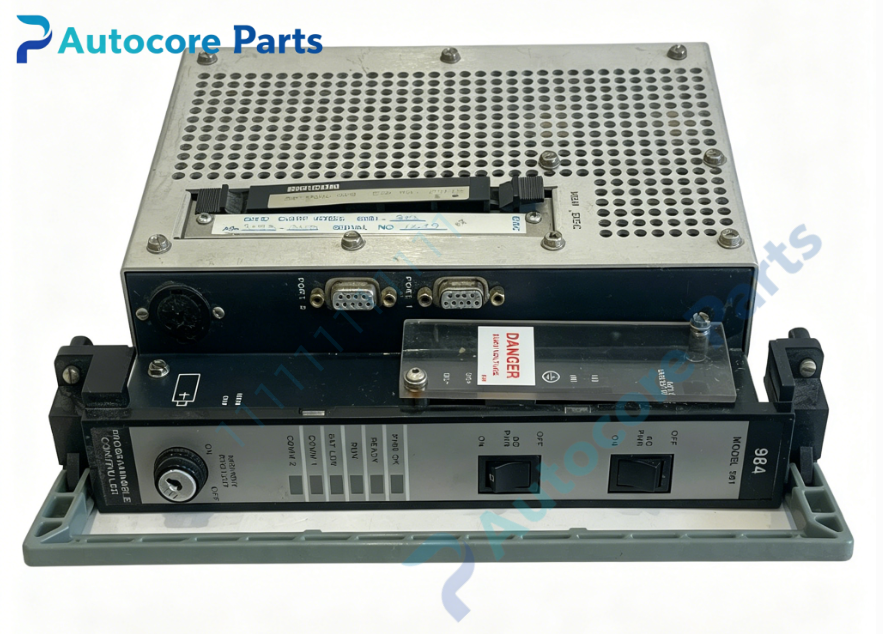

InterfaceBackplane bus connector,Modbus communication port,memory protection key switch,status and fault LED indicators for AS-9584-000 MODICON PLC controller.

FeatureMODICON AS-9584-000 rack mount 984 381 CPU,16K program memory,key lock memory protection,remote RIO support,hardware watchdog protection,stable operation under industrial temperature range,standard rack single slot design,IP20 cabinet protection. This discontinued legacy industrial spare part used for old MODICON 984 automation system maintenance and replacement.

DiagnosticModule not recognized: check rack power supply,backplane contact and module insertion for AS-9584-000. CPU stop fault: check program error,backup battery voltage and memory fault. Remote I/O communication loss: inspect bus cable,shielding grounding and station address setting. I/O data abnormal: verify backplane bus connection and field I/O module wiring. Fault alarm: read diagnostic codes through Modsoft programming software.

Product BriefAS-9584-000 is MODICON 984 series model 381 rack PLC CPU controller with 16K program memory. It supports local and remote distributed I/O control,classic spare part for legacy medium-scale industrial automation equipment overhaul.
