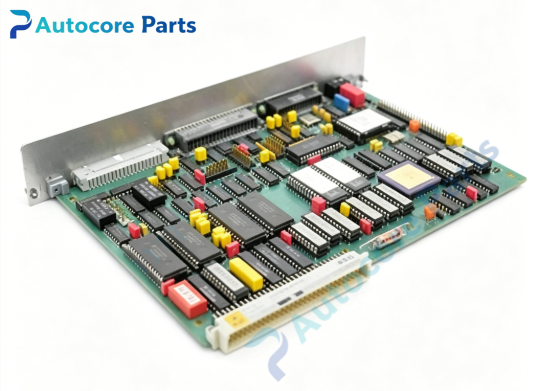

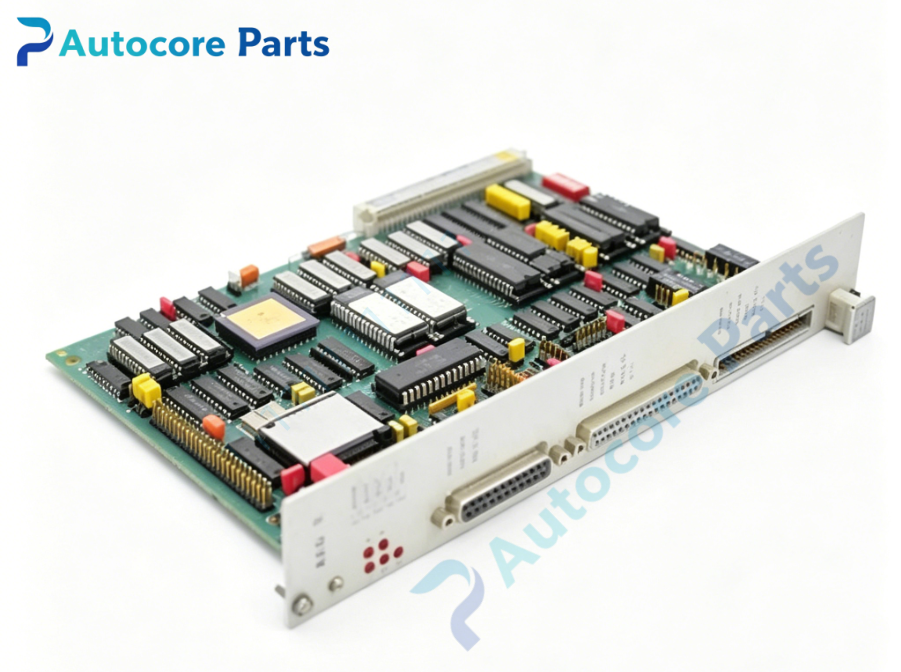

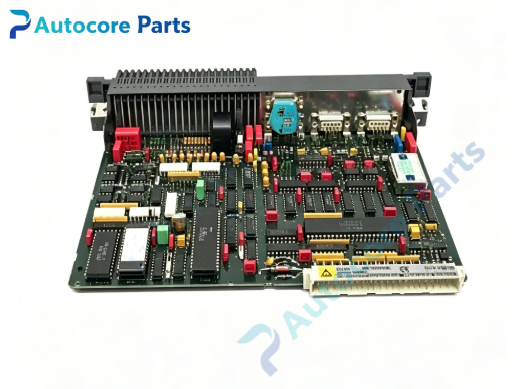

MODICON 6058-042.248263 Control Processor Module

Technical SpecificationsModel:6058-042.248263 Brand:AEG MODICON Product Type:Rack Mount PLC Control Processor Module Power Supply:24V DC Program Memory:64KB Data Memory:32KB Communication:Modbus RTU RS485 Mounting:Backplane rack slot mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:2.3kg Dimension:300mm155mm35mm Protection:IP20

System compatibility6058-042.248263 belongs to AEG MODICON classic rack processor board. Compatible with MODICON series backplane and matched digital I/O, analog I/O modules. It can connect with HMI and upper monitoring host via Modbus RTU. Suitable for packaging machinery, textile equipment, old production line small and medium process control system renovation and replacement as industrial spare part.

Function6058-042.248263 is PLC main control processor board. It executes ladder logic control program, collects field digital and analog sensor signals, outputs control commands to field actuators. It supports up to 4 local I/O modules expansion, built-in fault diagnosis and power-off data retention function. Widely used for medium-sized automation equipment sequence control, serving as reliable core control spare part.

InstallationCut off rack power before installation. Insert the 6058-042.248263 processor module into rack backplane slot and lock the board. Check backplane bus contact condition. Connect RS485 communication cable, set station address, download PLC program and complete online test before formal operation.

InterfaceBackplane bus connector,Modbus RS485 communication port,status and fault LED indicators for 6058-042.248263 AEG MODICON processor module.

FeatureAEG MODICON 6058-042.248263 rack type control processor,compact single slot design,Modbus RTU communication support,built-in data backup,hardware fault monitoring,strong anti-interference performance for industrial workshop environment,IP20 cabinet protection. This discontinued legacy industrial spare part used for old MODICON automation system maintenance and replacement.

DiagnosticModule not recognized: check rack power supply,backplane contact and module insertion for 6058-042.248263. PLC stop fault: check program error,backup battery voltage and memory fault. Communication failure: inspect RS485 cable,shielding grounding and station address setting. I/O data reading abnormal: verify backplane bus wiring and matching I/O module condition. Fault alarm: read module diagnostic information through supporting programming software.

Product Brief6058-042.248263 is AEG MODICON rack mount PLC control processor board. It acts as the core controller for medium-sized automation system, supports local I/O expansion and Modbus communication, classic spare part for legacy industrial control equipment overhaul.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
