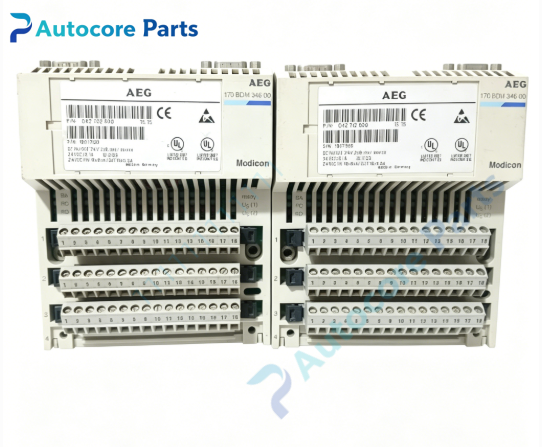

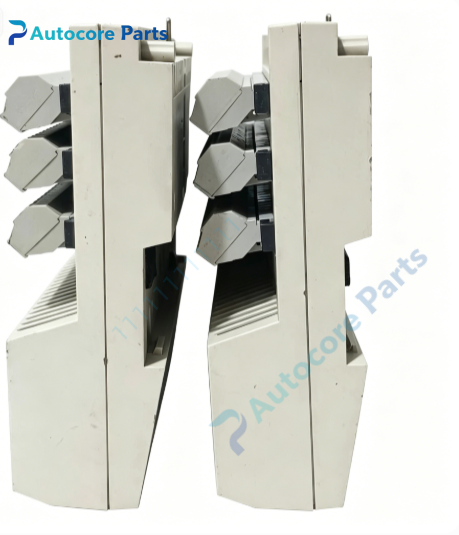

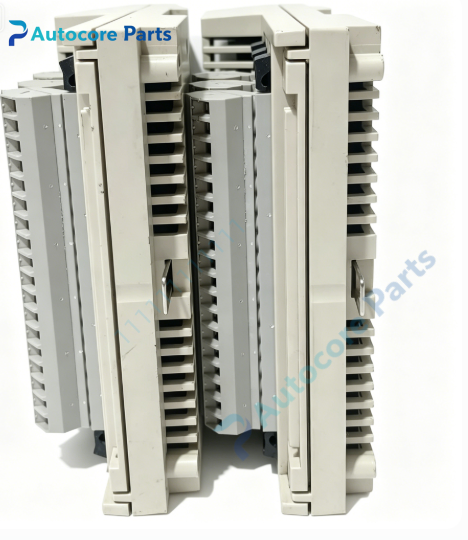

MODICON 170BDM34600 Momentum Discrete I/O Module

Technical Specifications

Model: 170BDM34600 Brand: MODICON(Schneider) Product Type: TSX Momentum Terminal Block Discrete I/O Module I/O allocation: 16 digital input / 16 digital output Signal level: 24VDC Input: Sink/source type, 6mA typical input current Output: 0.5A per channel, 2 groups × 8 points Communication: Interbus TIO interface Mounting: DIN rail mounting Operating temperature: 0℃ ~ +60℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Weight: 0.34kg Dimension: 125mm40mm180mm Protection: IP20

System compatibility

170BDM34600 belongs to MODICON TSX Momentum series remote I/O module. Compatible with Momentum adapter modules and Modicon PLC systems via Interbus bus. Suitable for distributed discrete signal acquisition and actuator control in packaging machinery, conveyor systems, small process skid legacy automation renovation and replacement.

Function

170BDM34600 combined digital I/O module for Momentum remote station. It collects 24VDC on/off signals from field limit switches, push buttons and proximity sensors, transfers status data to PLC through Interbus bus. It receives control commands from host PLC and switches 24VDC output channels to drive solenoid valves, indicator lamps and auxiliary relays. Each channel has LED status indicator for quick on-site inspection. Built-in overcurrent and short-circuit protection for output channels, hardware self-diagnosis function. Widely used for distributed digital signal control in legacy MODICON Momentum automation system.

Installation

Cut off 24VDC field power before installation. Mount 170BDM34600 module on DIN rail. Connect Interbus bus cable to adapter module, wire field sensors and actuators to terminal block. Configure I/O mapping and bus address, test input reading and output action, verify bus communication before formal operation.

Interface

Interbus bus connector, field terminal block for DI/DO signals, channel status LED indicators for 170BDM34600 MODICON Momentum I/O module.

Feature

MODICON 170BDM34600 Momentum remote I/O module, 16DI+16DO 24VDC, sink/source input, 0.5A output per point, Interbus TIO communication, per-channel LED indication, output short-circuit protection, compact DIN rail design, industrial anti-interference design. This discontinued legacy industrial spare part used for old MODICON Momentum distributed I/O system maintenance and replacement.

Diagnostic

Module bus communication loss: check Interbus cable, bus address and module power supply for 170BDM34600. Input no reading: inspect field 24VDC sensor supply, wiring polarity and wire breakage. Output no switching: verify PLC program logic, load wiring and output channel overload. Intermittent signal fault: check loose terminal and component aging.

Product Brief

170BDM34600 is MODICON TSX Momentum series remote combined digital I/O module. It provides 16 points 24VDC digital input and 16 points 24VDC digital output for Interbus distributed control system, classic spare part for legacy MODICON industrial automation equipment overhaul.

Disclaimer: All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
