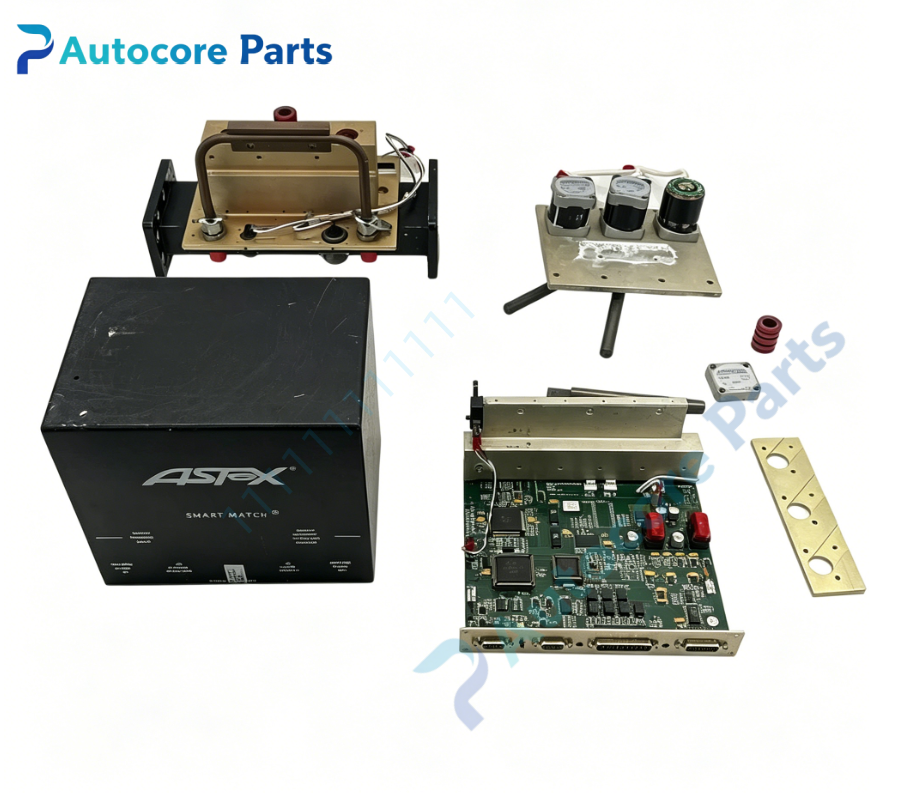

MKS Instruments FI20606 RF Matching Network

Module Feature

MKS FI20606 belongs to ASTeX Smart Match series automatic RF matching network. It automatically tunes internal vacuum capacitors to match impedance between RF generator and plasma chamber, minimizing reflected RF power. Fast auto-tuning response, robust mechanical structure and built-in multi-level protection circuits. Widely deployed on semiconductor etch, PVD and CVD plasma processing equipment.

Working principle: Internal servo motors drive vacuum variable capacitors to continuously adjust load impedance. Closed-loop feedback control reduces reflected power and maintains stable plasma state during process. Onboard components: Servo drive assembly, vacuum variable capacitors, impedance sensing circuit, control PCB, RF power ports, multi-pin communication connector

LED indicatorsPower, RF active and fault LED indicators on unit housing

Hardware self-diagnosis

Visual inspection, servo motor movement test, impedance loop test, reflected power verification, interlock function test

Programming software

MKS ASTeX diagnostic software for tuning parameter setup, fault diagnosis and log reading

Electrical & Process Parameters

RF Frequency:13.56MHz Control supply:24V DC Control interface:Digital communication + analog I/O Cooling:Air cooling Process compatibility:Semiconductor plasma process gases

Mechanical & Structure

Mounting:Equipment cabinet mounting Protection class:IP40

Environmental

Operating temperature:10℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE, SEMI compliant Status:MKS ASTeX Smart Match series RF match

System compatibility

Works with MKS RF generator and vacuum chamber, provides stable plasma excitation for semiconductor etch, PVD and CVD process.

Function

FI20606 ASTeX Smart Match RF matching network manufactured by MKS Instruments. It auto-tunes impedance to reduce reflected RF power and stabilize plasma. Mechanical wear or component contamination will lead to slow tuning, high reflected power or tuning timeout. It is core plasma impedance matching component for semiconductor vacuum process.

Installation

Follow lockout/tagout safety procedure before installation. Isolate RF power and vacuum system. Mount unit inside equipment cabinet, connect RF cables, 24V DC power and control signal cable. Perform tuning test and reflected power check before production startup.

Interface

RF input/output ports, multi-pin D-sub connector for DC power, digital communication and analog signals, status LED indicators on housing of FI20606.

Diagnostic

High reflected power: Capacitor contamination or servo motor failure. Tuning timeout: Plasma load fluctuation or mechanical jam. No response: Power loss or communication wiring fault. Interlock triggered: Over-temperature or cover open protection.

Product Brief

FI20606 MKS Instruments ASTeX Smart Match RF matching network,13.56MHz automatic impedance tuning,for semiconductor etch,PVD,CVD vacuum chamber plasma process stable RF power delivery.
