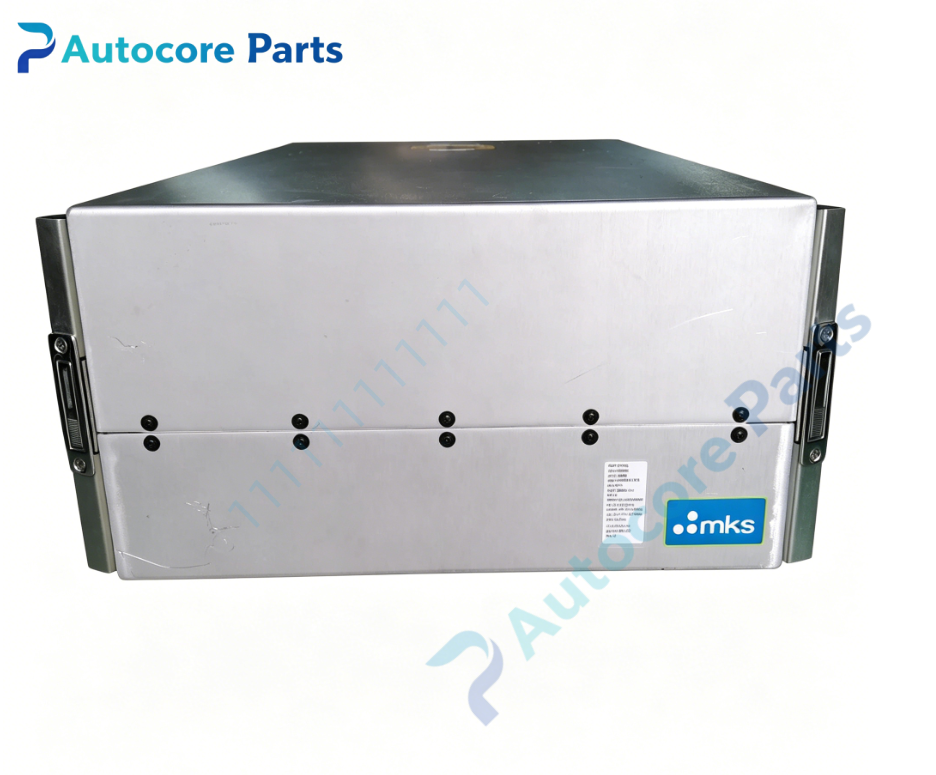

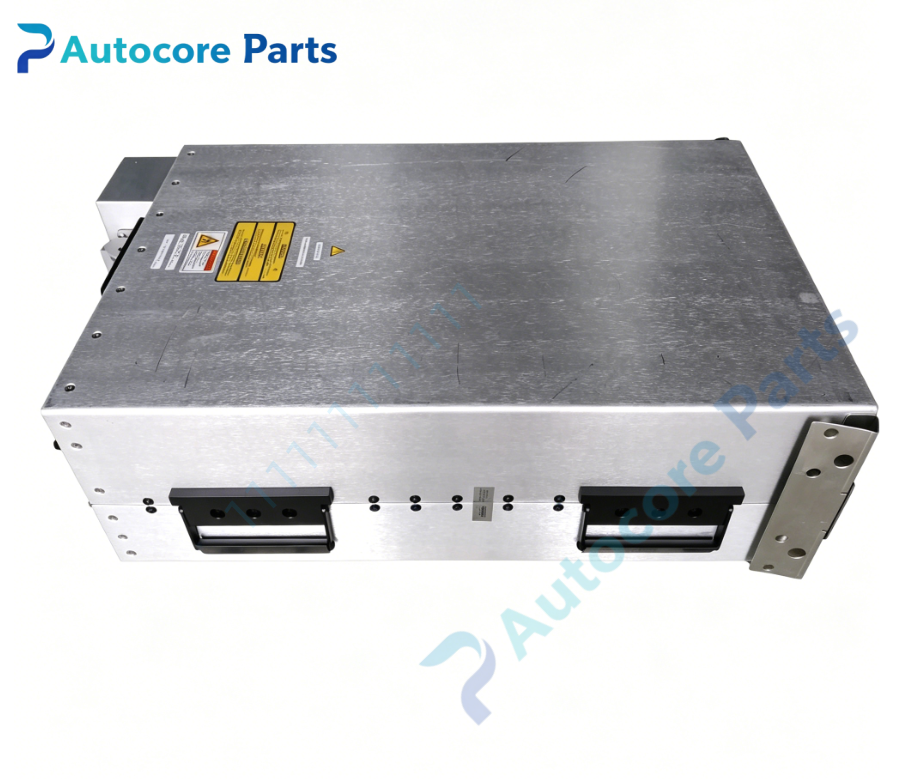

MKS Instruments 6060A-G12 Rev.A RF Generator

Technical Specifications

Model：6060A-G12 Rev.A Brand：MKS Instruments Product Type: EDGE series solid-state 60MHz RF plasma generator

Module Feature

MKS 6060A-G12 Rev.A is EDGE series high performance solid-state RF plasma generator. It outputs stable 60MHz RF power for advanced semiconductor plasma processes. Built-in fast impedance matching algorithm and arc suppression protection, high power stability and low reflected power. Digital control design supports remote communication and precise power setpoint control. Widely applied in advanced semiconductor etching, dielectric deposition and high aspect ratio process chamber.

Working principle: Convert AC input power into controlled 60MHz RF energy, deliver radio frequency power to vacuum chamber to generate and sustain plasma discharge Onboard components: Solid-state RF amplifier, digital control board, cooling system, front panel display, RF coaxial output connector, interlock & analog I/O terminal

LED indicatorsPower, RF active, fault and interlock LED indicators on front panel

Hardware self-diagnosis

Visual inspection, cooling fan inspection, RF power output test, arc protection function test, interlock safety verification

Programming software

MKS EDGE RF power supply software for remote power setup, real-time status monitoring and fault log reading

Electrical & RF Parameters

Output frequency:60 MHz Input power:200~240V AC Control interface:Analog 0-10V + digital communication Protection:Over-temperature, over-current, reflected power interlock protection

Mechanical & Structure

Mounting:19-inch rack cabinet mounting Protection class:IP20

Environmental

Operating temperature:10℃ ~ +40℃ Ambient humidity:5~95% non-condensing Certification:CE, SEMI compliant Status:MKS EDGE series RF plasma generator

System compatibility

Matched with MKS RF matching network, used together with vacuum chamber, capacitance manometer and pressure controller for semiconductor plasma processing system.

Function

6060A-G12 Rev.A is RF plasma generator manufactured by MKS Instruments. It supplies high-precision 60MHz RF energy to vacuum chamber to generate plasma. The built-in protection circuit quickly responds to arc events to protect chamber hardware and wafer. Amplifier module failure, fan fault or interlock open will stop RF output and trigger process alarm. It is core high-frequency power unit for advanced semiconductor plasma process.

Installation

Follow lockout/tagout safety procedure before installation. Cut off AC power supply. Rack mount 6060A-G12 Rev.A inside electrical cabinet. Connect AC power cable, RF coaxial cable, interlock and analog signal wiring. Set target RF power, run output test and interlock protection verification.

Interface

AC power input terminal, high-frequency RF coaxial output port, multi-pin connector for analog I/O and interlock, status LED indicators on front panel of 6060A-G12 Rev.A.

Diagnostic

No RF output: Interlock open circuit or internal power supply damage. High reflected power: Plasma impedance mismatch or matching network fault. Power unstable: Cooling fan failure or amplifier aging. Overheat alarm: Dust accumulation on heat sink or poor cabinet ventilation

Product Brief

6060A-G12 Rev.A MKS Instruments EDGE series solid-state RF plasma generator,60MHz frequency with fast arc suppression,for advanced semiconductor plasma etching and thin-film deposition process,rack mounted RF power source.
