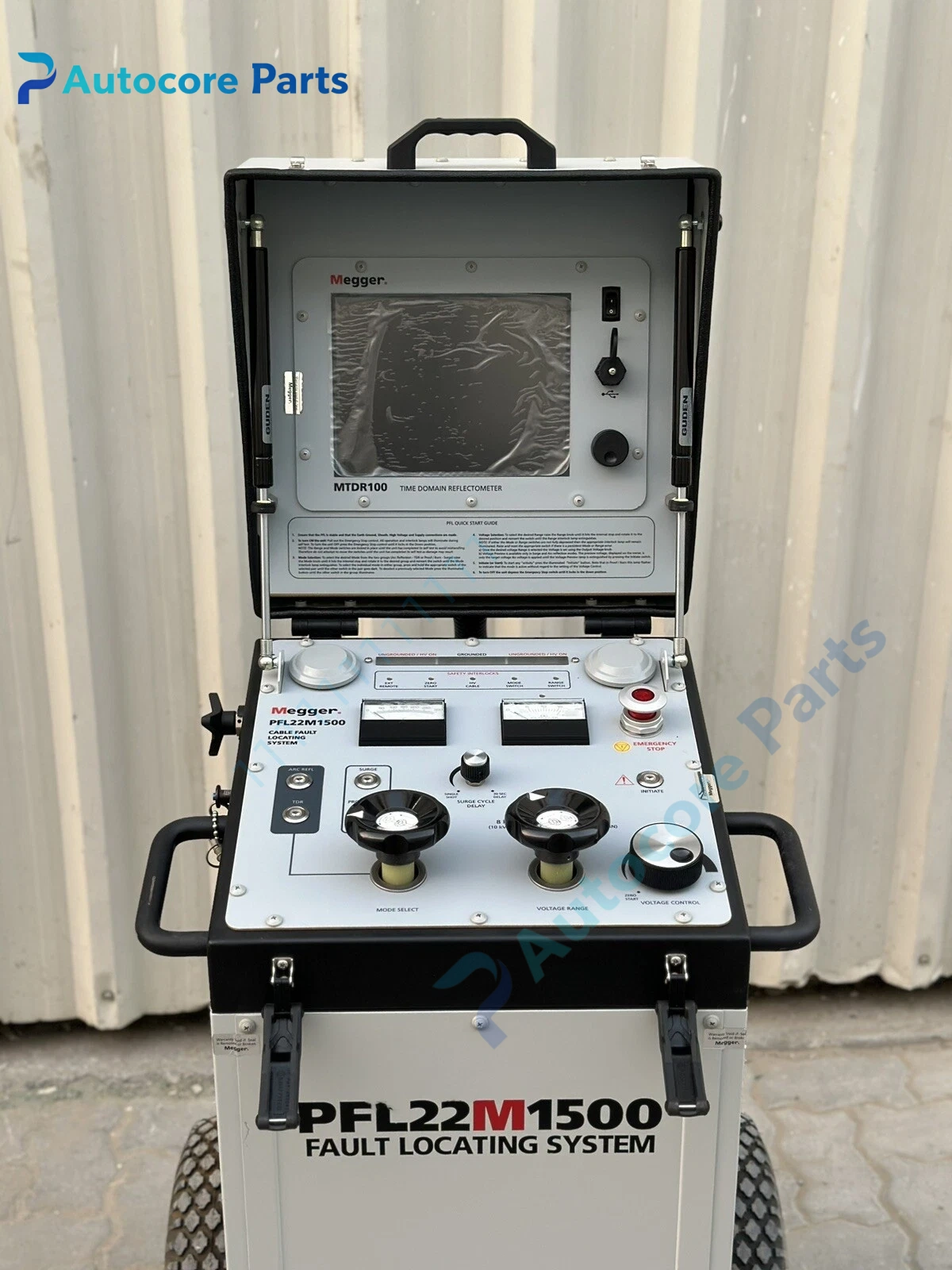

Megger PFL22M1500 Cable Fault Locator Test Unit

Module Feature

PFL22M1500 is Megger all‑in‑one portable power cable fault locating test system. Equipped with built‑in MTDR100 time‑domain reflectometer, it integrates DC high‑voltage withstand / burn‑up function and 1500J surge impulse generator. Supports multiple test technologies including TDR pulse‑echo, arc‑reflection ARP, differential arc‑reflection DART, impulse‑current ICE. Adopts rugged wheeled trolley cabinet, IP64 enclosure rating, suitable for outdoor field site work. Widely used for MV power cable high‑resistance fault, flash‑over fault, short‑circuit and open‑circuit fault diagnosis, pre‑location and pinpoint locating in power utility industryportalvhds....

Working principle

Low‑voltage TDR sends pulse signal into cable, calculates fault distance by reflected waveform. High‑voltage DC burn‑up stabilizes intermittent flash‑over faults. Surge impulse creates arc at fault point; combined with arc‑reflection / ICE algorithm to compute accurate fault distance. Cooperate with external acoustic receiver to complete on‑site pinpoint fault position.

Onboard components

High‑voltage DC power unit, 1500J surge energy storage capacitor, MTDR100 TDR measurement circuit, 10.4‑inch XGA color display, control mainboard, safety interlock circuit, wheeled metal trolley cabinet, test terminal interface panel.

LED indicators

HV warning indicator lamp, power‑on and system status LED; high‑voltage live warning light. Test waveform and measuring data displayed on built‑in color screen.

Hardware self‑diagnosis

Detect internal over‑temperature, high‑voltage circuit anomaly, interlock safety‑loop fault. Self‑check TDR acquisition circuit on power‑up; abnormal alarm prompts on display.

Programming software

Data analysis and report export via Megger CAS1 cable analysis software; local on‑screen operation for field test workflowportalvhds....

Electrical & Process Parameters

Model:PFL22M1500 Brand:Megger Device type:Portable Cable Fault Locating System DC Withstand / Burn‑up:Max 20kV,115mA Surge impulse:8kV /16kV,1500 Joule TDR range:100m‑55km Display:10.4‑inch XGA color screen Input power:108‑135V / 208‑265V AC Function:Power cable fault diagnosis,pre‑location,burn‑up conditioning,surge pinpoint locating

Mechanical & Structure

Mounting:Wheeled trolley portable cabinet Protection class:IP64 (cover closed) Housing:Heavy‑duty metal trolley enclosure

Environmental

Operating temperature:-20℃ ~ +50℃ Storage temperature:-40℃ ~ +70℃ Ambient humidity:5~95% non‑condensing Certification:IEC high‑voltage test equipment compliant Status:Megger original field‑use cable fault test instrument

Installation

Place trolley on flat ground, engage safety interlock, connect protective earth ground, link high‑voltage test lead to faulty cable. Set test mode on touch‑screen, perform TDR pre‑location, burn‑up conditioning and surge impulse test in sequence. Match external acoustic sensor for pinpoint location.

Interface

High‑voltage surge output terminal, TDR signal terminal, protective earth terminal, USB communication port, mains‑power inlet.

Diagnostic

High‑voltage cannot output:Safety interlock not closed,earth connection poor or over‑temperature protection triggered. No TDR waveform:Test lead disconnection or cable open‑circuit at near end. Cannot trigger surge:Energy‑storage unit anomaly or internal hardware fault, check instrument self‑diagnosis prompt.

Product Brief

Megger PFL22M1500 integrated portable power cable fault locating system, combines TDR, high‑voltage burn‑up and 1500J surge thumper, for field pre‑location and pinpoint of medium‑voltage cable various types of faults.
