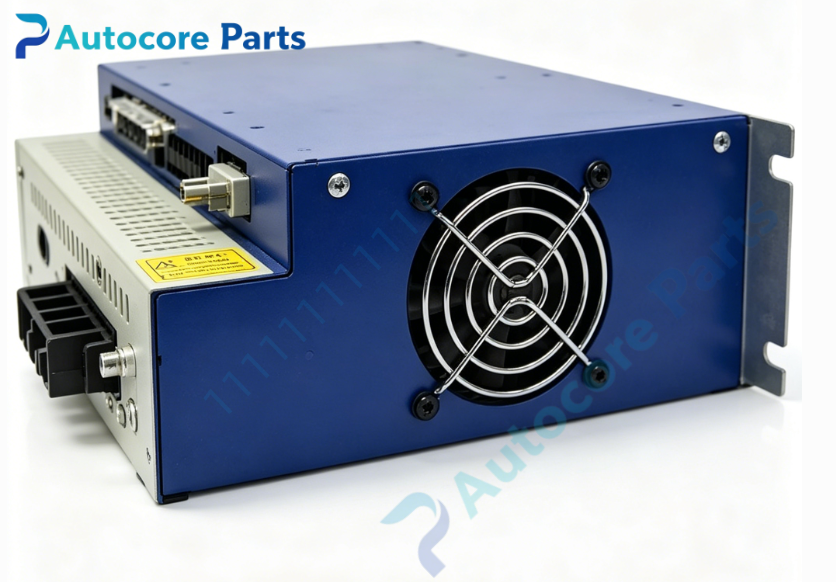

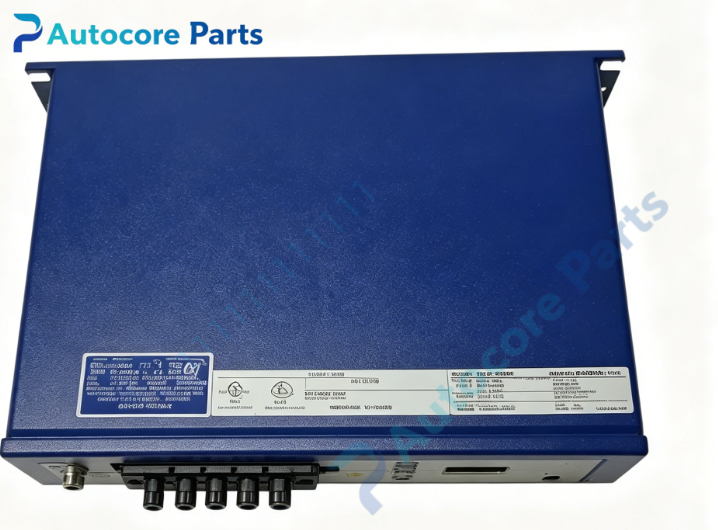

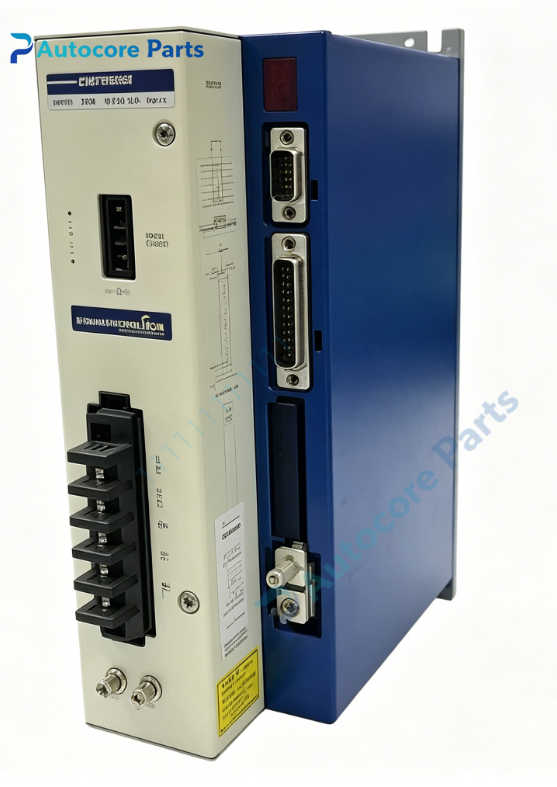

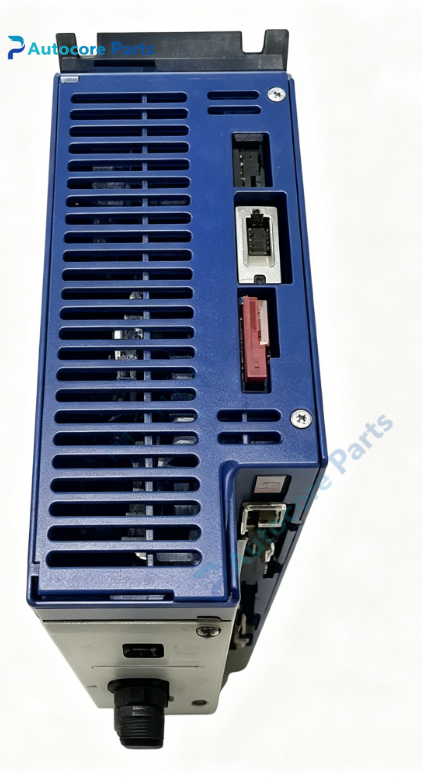

Kollmorgen SR03000-000000 Servo Drive Spare Part

Technical Specifications

Model:SR03000-000000

Brand:Kollmorgen

Part No:SR03000-000000

Product type:Digital servo amplifier

Input voltage:115/230V AC single phase

Continuous output current:3A RMS

Peak output current:9A

Dimension:267mm178mm76mm

Weight:2.7kg

Feedback interface:Incremental encoder

Mounting:Cabinet panel mounting

Cooling:Built-in fan cooling

Protection class:IP20

Operating temperature:0~40℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE,UL

System compatibility

SR03000-000000 belongs to Kollmorgen ServoStar servo drive family,matched with Kollmorgen AKM and Silverline series small frame servo motors,widely used in packaging machinery,dispensing equipment,small machine tool axes and material handling systems.This is discontinued industrial spare part for equipment overhaul and maintenance.

Function

SR03000-000000 is compact single-phase digital servo amplifier.It supports torque,speed and position control mode,accept ±10V analog command or step/direction signal.Incremental encoder feedback realizes high precision closed-loop motion control.Built-in overcurrent,overvoltage,undervoltage,overtemperature protection,parameter configuration and motor tuning can be completed through dedicated software.

Installation

Install SR03000-000000 on cabinet panel by panel mounting.Connect single-phase power wiring,motor power cable,encoder feedback cable and control signal wiring.Fasten terminals,complete shielding and grounding inspection before power-on test.

Interface

‑115/230V AC power terminal

‑Motor power output terminal

‑Incremental encoder feedback connector

‑±10V analog command / step direction port

‑Digital input and output terminal

‑RS232 communication port

‑Shield grounding terminal

Circuit feature

Digital closed-loop control design,four-quadrant power stage,integrated braking circuit,multi fault protection circuit,forced air cooling,stable dynamic response and good anti-interference performance.

Feature

SR03000-000000 is obsolete Kollmorgen spare part.Typical faults:power device damage,electrolytic capacitor aging,encoder feedback circuit failure,cooling fan failure,internal auxiliary power breakdown,connector corrosion.Test DC bus voltage,output three-phase balance and encoder signal before replacement.

Diagnostic

Drive faults will trigger overcurrent,overvoltage,undervoltage or overtemperature alarm;motor no action,position drift,axis abnormal vibration.

Built‑in function:Command signal processing,motor power amplification,speed/torque/position closed-loop control,fault safety protection,as Kollmorgen legacy automation servo drive spare replacement.

Product Brief

SR03000-000000 is Kollmorgen ServoStar compact single phase servo amplifier,paired with small frame AKM / Silverline servo motors for precision positioning automation systems.Confirm power rating,feedback type and control signal before ordering.ESD protection required during handling and installation.
