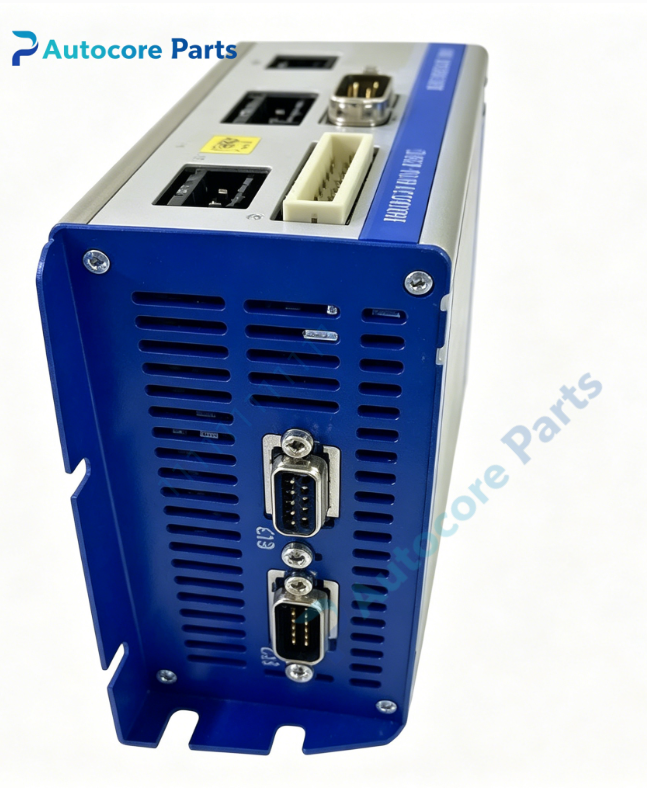

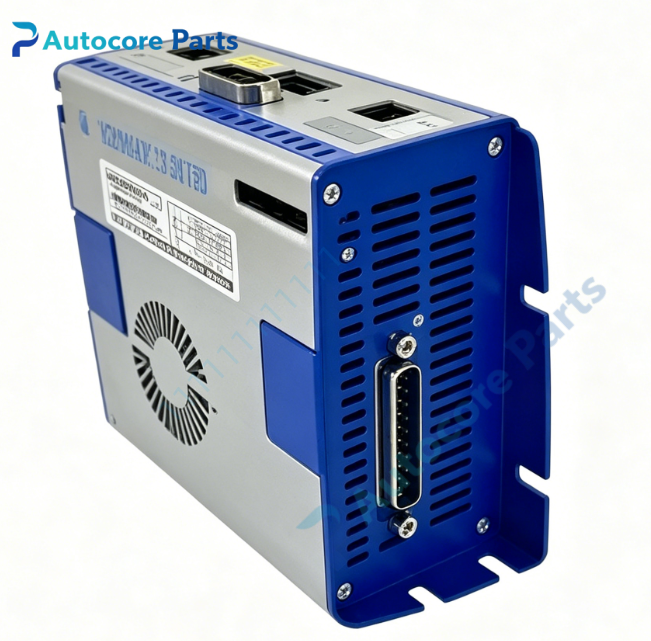

Kollmorgen PRD-PE205E0Z-00 Servo Drive Spare Part

Technical Specifications

Model:PRD-PE205E0Z-00

Brand:Kollmorgen

Part No:PRD-PE205E0Z-00

Product type:Digital servo amplifier

Input voltage:24V DC

Input current:6A

Continuous output current:5A RMS/phase

Dimension:140mm64mm114mm

Weight:0.7kg

Feedback interface:Resolver, incremental encoder, EnDat, Hall sensor

Mounting:Cabinet panel mounting

Cooling:Natural convection

Protection class:IP20

Operating temperature:0~40℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE

System compatibility

PRD-PE205E0Z-00 belongs to Kollmorgen ServoStar PD compact servo drive family,matched with Kollmorgen small frame AKM and Silverline servo motors,widely used in micro positioning equipment,dispensing machinery,lab automation and small packaging systems.This is discontinued industrial spare part for equipment overhaul and maintenance.

Function

PRD-PE205E0Z-00 is compact low voltage digital servo amplifier,Z represents hardware variant.It adopts sine wave commutation,supports torque,speed and position control mode,accept ±10V analog command or step/direction signal.Velocity loop bandwidth up to 400Hz,built-in auto-tuning function and S-curve acceleration to reduce mechanical impact.Built-in overcurrent,overvoltage,undervoltage,overtemperature protection,parameter configuration and motor tuning can be completed through dedicated software.

Installation

Install PRD-PE205E0Z-00 on cabinet panel by panel mounting.Connect 24V DC power wiring,motor power cable,feedback cable and control signal wiring.Fasten terminals,complete shielding and grounding inspection before power-on test.

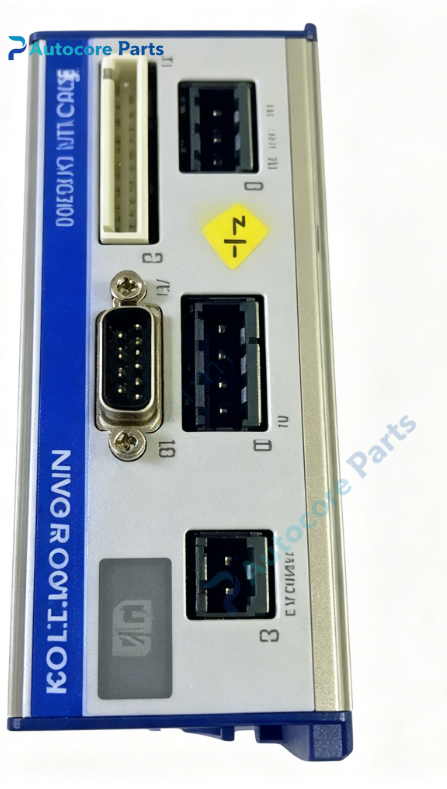

Interface

‑24V DC power terminal

‑Motor power output terminal

‑Resolver / incremental encoder feedback connector

‑±10V analog command / step direction port

‑Digital input and output terminal

‑Auxiliary encoder port for dual loop control

‑Shield grounding terminal

Circuit feature

Digital closed-loop control design,advanced sine wave commutation,multi fault protection circuit,compact small size,low noise and good anti-interference performance.

Feature

PRD-PE205E0Z-00 is obsolete Kollmorgen spare part.Typical faults:power device damage,electrolytic capacitor aging,feedback circuit failure,internal auxiliary power breakdown,connector corrosion.Test DC bus voltage,output three-phase balance and feedback signal before replacement.

Diagnostic

Drive faults will trigger overcurrent,overvoltage,undervoltage or overtemperature alarm;motor no action,position drift,axis abnormal vibration.

Built‑in function:Command signal processing,motor power amplification,speed/torque/position closed-loop control,fault safety protection,as Kollmorgen legacy micro automation servo drive spare replacement.

Product Brief

PRD-PE205E0Z-00 is Kollmorgen ServoStar PD compact 24V DC servo amplifier,paired with small frame AKM / Silverline servo motors for precision micro positioning systems.Confirm power rating,feedback type and control signal before ordering.ESD protection required during handling and installation.
