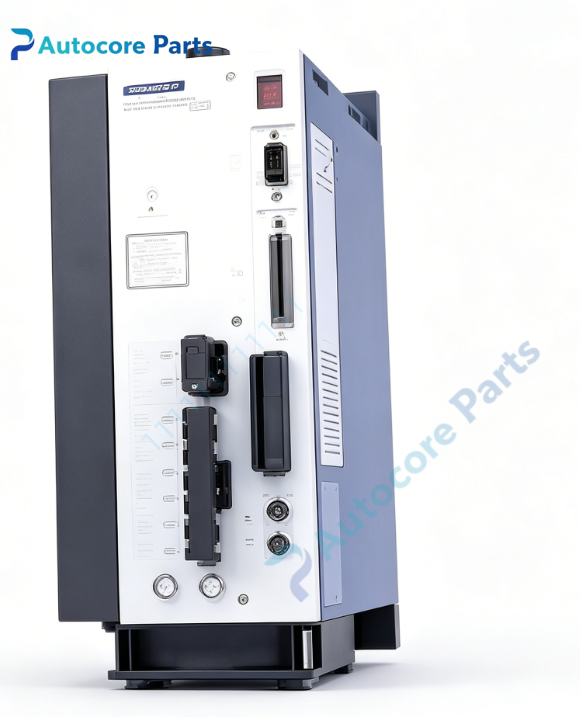

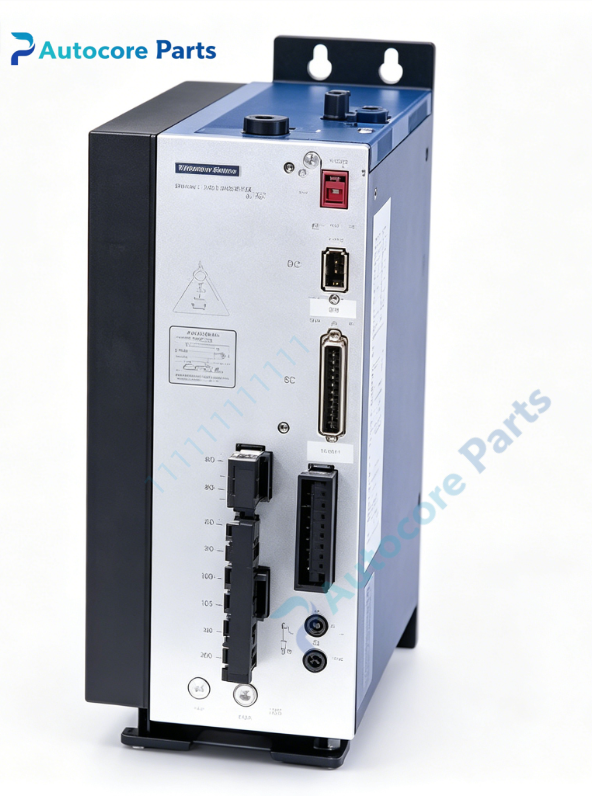

Kollmorgen PRD-B040SSIC-C2 Servo Drive Spare Part

Technical Specifications

Model:PRD-B040SSIC-C2

Brand:Kollmorgen

Part No:PRD-B040SSIC-C2

Product type:Digital servo amplifier

Input voltage:110/230V AC single / three phase

Continuous output current:20A

Peak output current:50A

Dimension:290mm170mm210mm

Weight:8.3kg

Feedback interface:Resolver

Mounting:Cabinet rack mounting

Protection class:IP20

Operating temperature:0~45℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE

System compatibility

PRD-B040SSIC-C2 belongs to Kollmorgen PRD series servo drive family,matched with Kollmorgen AKM and Silverline series medium frame servo motors,widely used in packaging machinery,cutting equipment,machine tool axes and material handling systems.This is discontinued industrial spare part for equipment overhaul and maintenance.

Function

PRD-B040SSIC-C2 is PRD series digital servo amplifier,C2 represents hardware revision.It supports torque,speed and position control mode,accept ±10V analog command or step/direction signal.Resolver feedback realizes closed-loop motion control.Built-in overcurrent,overvoltage,undervoltage,overtemperature protection,parameter configuration and motor tuning can be completed through dedicated software.

Installation

Install PRD-B040SSIC-C2 inside electrical cabinet by rack mounting.Connect single/three-phase power wiring,motor power cable,resolver feedback cable and control signal wiring.Fasten terminals,complete shielding and grounding inspection before power-on test.

Interface

‑110/230V AC power terminal

‑Motor power output terminal

‑Resolver feedback connector

‑±10V analog command / step direction port

‑Digital input and output terminal

‑RS232 service port

‑Shield grounding terminal

Circuit feature

Digital closed-loop control design,IGBT power stage,multi fault protection circuit,strong load capacity and anti-interference performance.

Feature

PRD-B040SSIC-C2 is obsolete Kollmorgen spare part.Typical faults:IGBT module damage,electrolytic capacitor aging,resolver feedback circuit failure,internal power supply breakdown,connector corrosion.Test DC bus voltage,output three-phase balance and resolver signal before replacement.

Diagnostic

Drive faults will trigger overcurrent,overvoltage,undervoltage or overtemperature alarm;motor no action,position drift,axis abnormal running.

Built‑in function:Command signal processing,motor power amplification,speed/torque/position closed-loop control,fault safety protection,as Kollmorgen legacy automation servo drive spare replacement.

Product Brief

PRD-B040SSIC-C2 is Kollmorgen PRD series digital servo amplifier,C2 hardware revision,paired with medium frame AKM / Silverline servo motors for legacy automation systems.Confirm power rating,feedback type and control signal before ordering.ESD protection required during handling and installation.
