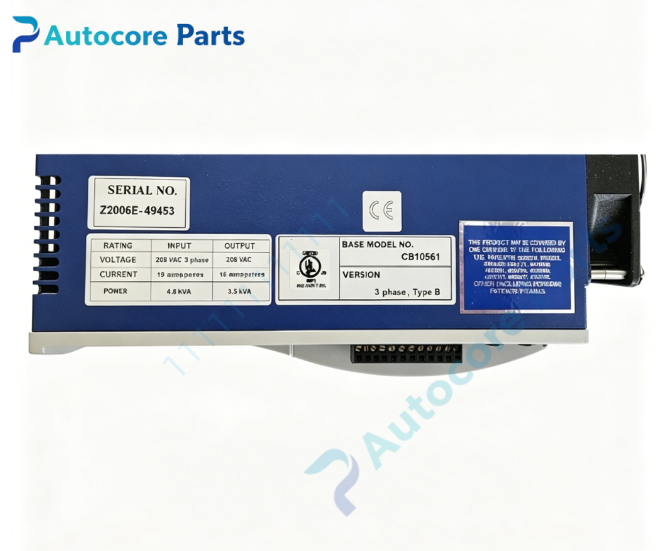

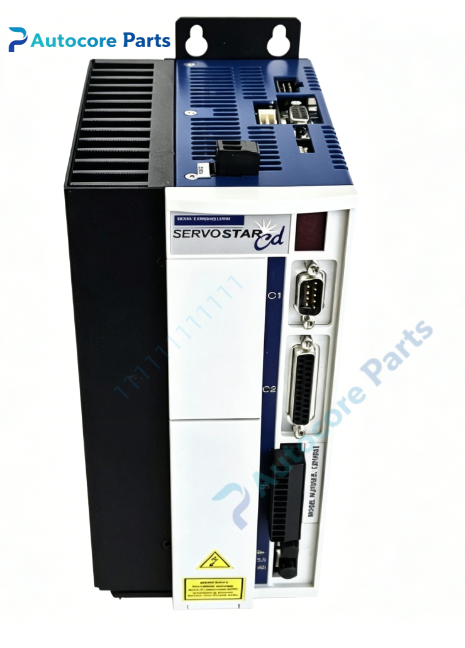

Kollmorgen CB10561 Servo Drive Spare Part

Technical Specifications

Model:CB10561

Brand:Kollmorgen

Part No:CB10561

Product type:Digital servo amplifier

Input voltage:115/230V AC single phase

Continuous output current:10A RMS

Peak output current:30A

Rated apparent power:5.5kVA

Dimension:240mm172mm92mm

Weight:3.1kg

Feedback interface:Resolver, incremental encoder

Mounting:Cabinet panel mounting

Cooling:Built-in fan cooling

Protection class:IP20

Operating temperature:0~40℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE,UL

System compatibility

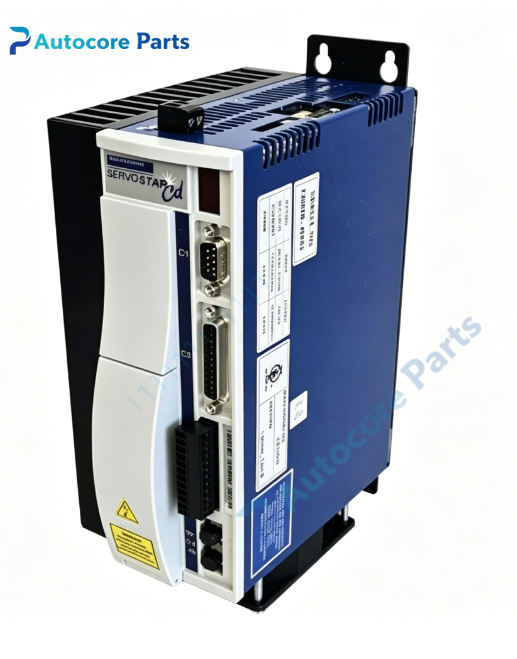

CB10561 belongs to Kollmorgen ServoStar CD compact servo drive family,matched with Kollmorgen AKM and Goldline brushless servo motors,widely used in packaging machinery,assembly equipment,printing machines and multi-axis precision positioning automation systems.This is discontinued industrial spare part for equipment overhaul and maintenance.

Function

CB10561 is compact panel-mounted digital servo amplifier.It adopts four-quadrant regenerative braking control,supports torque,speed and position operating modes,accept ±10V analog command or step/direction signal.Resolver or incremental encoder feedback realizes high precision closed-loop motion control.With Safe Torque Off STO safety function,built-in auto-tuning and electronic gearing function;overcurrent,overvoltage,undervoltage,overtemperature protection,parameter setting and motor tuning can be completed by dedicated software.

Installation

Install CB10561 inside electrical cabinet by panel mounting.Connect single-phase AC power wiring,motor power cable,feedback cable and control signal wiring.Fasten terminals,complete shielding and grounding inspection before power-on test.

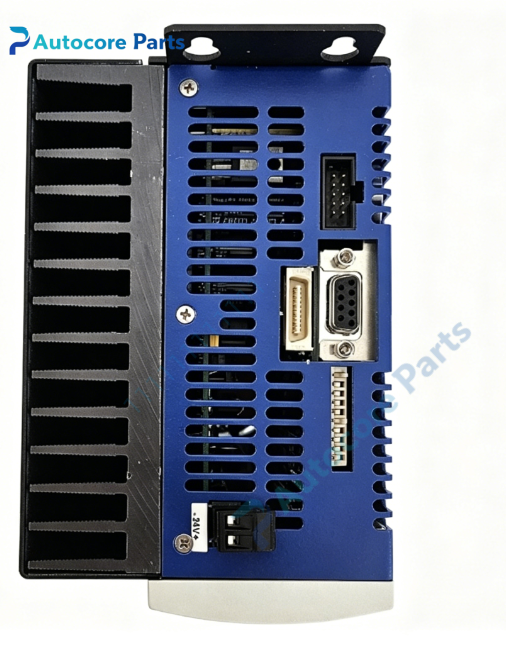

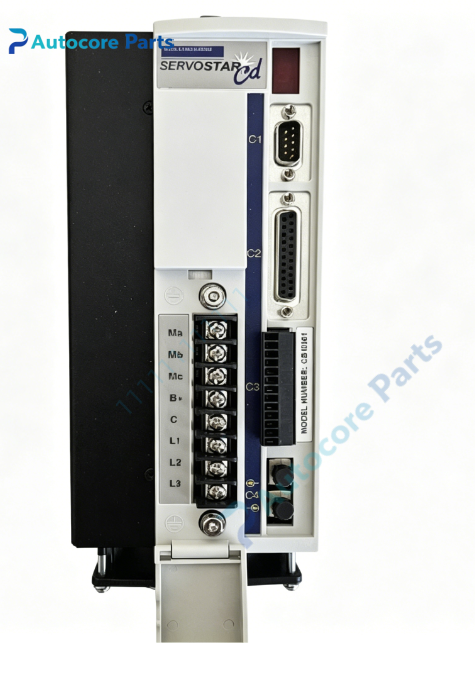

Interface

‑115/230V AC power terminal

‑3 phase motor power output terminal

‑Resolver / incremental encoder feedback connector

‑±10V analog command / step direction port

‑Digital input and output terminal

‑RS232 communication port

‑STO safety terminal

‑Shield grounding terminal

Circuit feature

Digital closed-loop control design,IGBT four-quadrant power stage,integrated dynamic braking circuit,multi fault protection circuit,forced air cooling,strong overload capacity and good anti-interference performance.

Feature

CB10561 is obsolete Kollmorgen spare part.Typical faults:IGBT module damage,electrolytic capacitor aging,feedback circuit failure,cooling fan failure,auxiliary power breakdown,connector corrosion.Test DC bus voltage,three-phase output balance and feedback signal before replacement.

Diagnostic

Drive faults will trigger overcurrent,overvoltage,undervoltage or overtemperature alarm;motor no action,position drift,axis abnormal vibration.

Built‑in function:Command signal processing,motor power amplification,speed/torque/position closed-loop control,fault safety protection,as Kollmorgen legacy compact servo amplifier spare replacement.

Product Brief

CB10561 is Kollmorgen ServoStar CD compact single phase servo amplifier,5.5kVA rated power with STO safety function,matched with AKM / Goldline medium frame servo motors for multi-axis precision automation systems.Confirm power rating,feedback type and control signal before ordering.ESD protection required during handling and installation.
