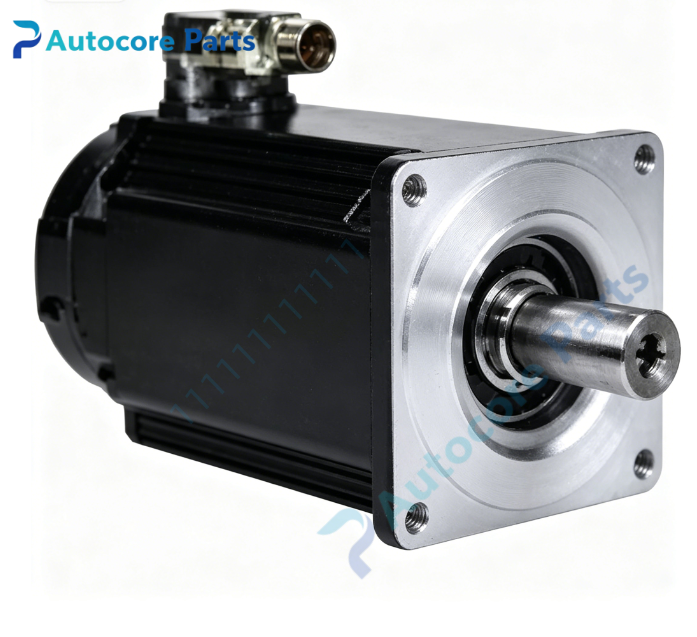

Kollmorgen AKM63M-ANCR-00 Servo Motor Spare Part

Technical Specifications

Model:AKM63M-ANCR-00

Brand:Kollmorgen

Part No:AKM63M-ANCR-00

Product type:Permanent magnet AC synchronous servo motor

Rated power:5.0kW

Rated speed:3000rpm

Continuous torque:23.8Nm

Peak torque:67.2Nm

Max DC bus voltage:640V DC

Protection class:IP65

Dimension:495mm130mm165mm

Weight:19.40kg

Feedback interface:Resolver

Mounting:130mm IEC flange mounting

Operating temperature:0~40℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE,UL

System compatibility

AKM63M-ANCR-00 belongs to Kollmorgen AKM servo motor family,matched with Kollmorgen AKD series servo drives,widely used in machine tools,packaging machinery,material handling and heavy-load precision multi-axis automation systems.This is industrial spare part for equipment overhaul and maintenance.

Function

AKM63M-ANCR-00 is AKM high-performance synchronous servo motor.It features ultra-low cogging torque and smooth rotation performance.Resolver feedback provides strong anti-interference capability for harsh industrial environments,high precision position detection.High energy density rare-earth permanent magnet rotor delivers excellent dynamic response,this model is without built-in holding brake,smooth shaft.

Installation

Install AKM63M-ANCR-00 via IEC flange mounting on machine fixture.Connect motor power cable and resolver feedback cable.Tighten mounting bolts and connector locking rings,separate power and signal wiring,complete shielding grounding before power-on test.

Interface

‑3 phase motor power connector

‑Resolver feedback connector

‑Shield grounding terminal

Feature

AKM63M-ANCR-00 Kollmorgen servo motor.Typical faults:winding insulation aging,Resolver element damage,bearing wear,connector pin oxidation.Test winding resistance,insulation resistance and feedback signal before replacement.

Diagnostic

Motor faults will trigger overload,overcurrent or feedback loss alarm;motor jitter,position tracking error,motor fails to start,intermittent positioning deviation.

Built‑in function:Convert electrical command into precise mechanical torque,realize high accuracy speed and position closed-loop control,as Kollmorgen AKM series servo motor spare replacement.

Product Brief

AKM63M-ANCR-00 is Kollmorgen AKM 5.0kW servo motor,130mm flange,Resolver feedback,without holding brake,smooth shaft,compatible with AKD servo drives for heavy-load automation equipment maintenance.Confirm feedback type and shaft specification before ordering.ESD protection required during handling and installation.
