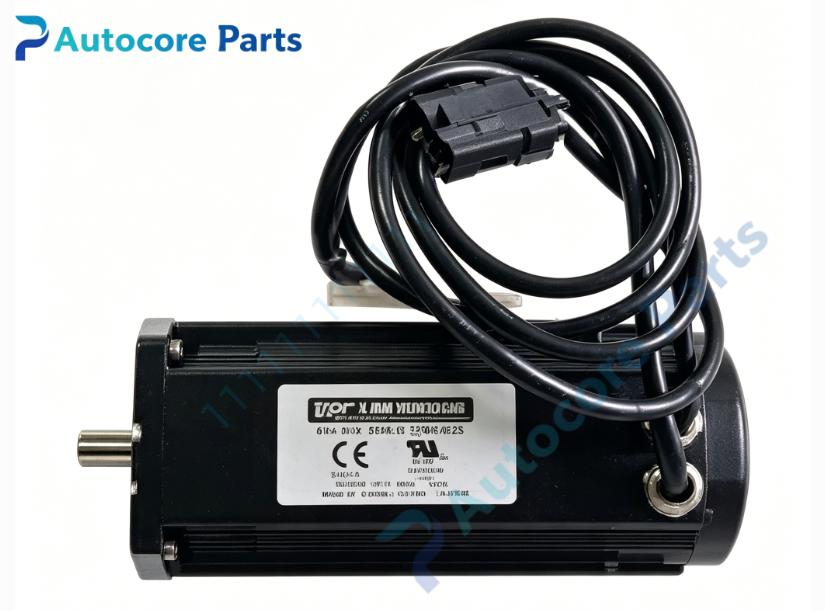

Kollmorgen AKM23D-ANMNC-00 Synchronous Servo Motor Spare Part

Technical Specifications

Model:AKM23D-ANMNC-00

Brand:Kollmorgen

Part No:AKM23D-ANMNC-00

Product type:AC synchronous servo motor

Rated speed:5000 rpm

Rated power:1.18 kW

Rated torque:2.26 Nm

Input voltage:230V AC

Dimension:142mm80mm110mm

Weight:2.9kg

Feedback:resolver feedback

Mounting:IM B5 flange mounting

Protection class:IP65

Operating temperature:0~40℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE

System compatibility

AKM23D-ANMNC-00 belongs to Kollmorgen AKM2 servo motor family,matched with Kollmorgen AKD / SERVOSTAR series servo drives,widely used in packaging machinery,textile equipment,medium machine tool axes and material handling systems.This is a legacy spare part for industrial equipment maintenance replacement.

Function

AKM23D-ANMNC-00 is medium inertia permanent magnet synchronous servo motor without holding brake.It features high torque density and low cogging torque,suitable for medium load high-precision positioning applications.Resolver transmits rotor position signal to servo drive to realize closed-loop speed and position control.

Installation

Install AKM23D-ANMNC-00 via flange mounting.Align coupling accurately,connect power cable and resolver feedback cable.Tighten terminals and check cable shielding before power-on commissioning.

Interface

‑Power cable connector

‑Resolver feedback connector

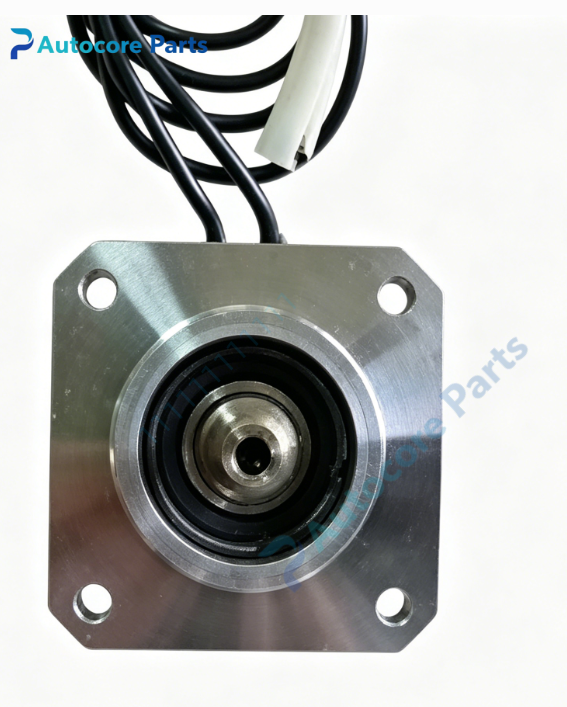

‑Flange mounting interface

‑Shaft with keyway

‑Shield grounding terminal

Circuit feature

Permanent magnet rotor structure,low loss stator winding,resolver position detection circuit,good overload capacity,adapt to frequent start-stop working condition.

Feature

AKM23D-ANMNC-00 is obsolete Kollmorgen spare part.Typical faults:bearing wear,winding insulation aging,resolver signal failure,shaft damage,connector corrosion.Inspect winding resistance,resolver signal and bearing noise before replacement.

Diagnostic

When motor fails,motor overheat,abnormal mechanical noise,position deviation,resolver signal loss,overcurrent alarm,axis cannot run normally.

Built‑in function:Medium torque dynamic output,rotary position detection,axis speed and position control,used as Kollmorgen automation servo motor spare replacement.

Product Brief

AKM23D-ANMNC-00 is Kollmorgen AKM2 series medium inertia servo motor with resolver feedback,without brake.Match with AKD / SERVOSTAR servo drives.Verify feedback type and shaft dimension before ordering.ESD protection required during handling and installation.
