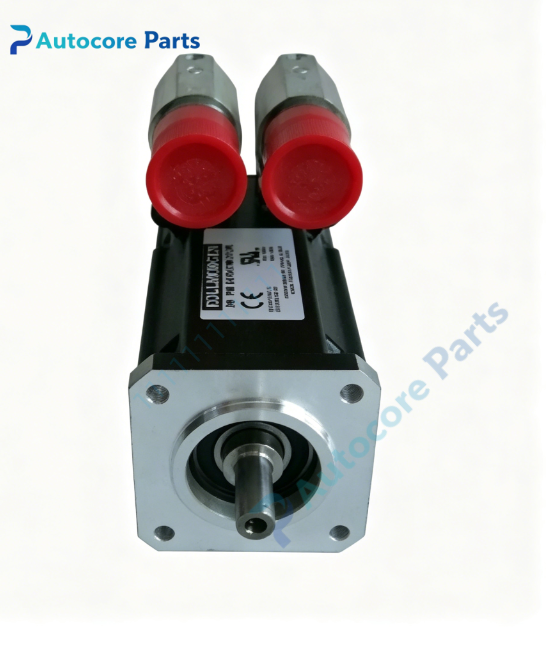

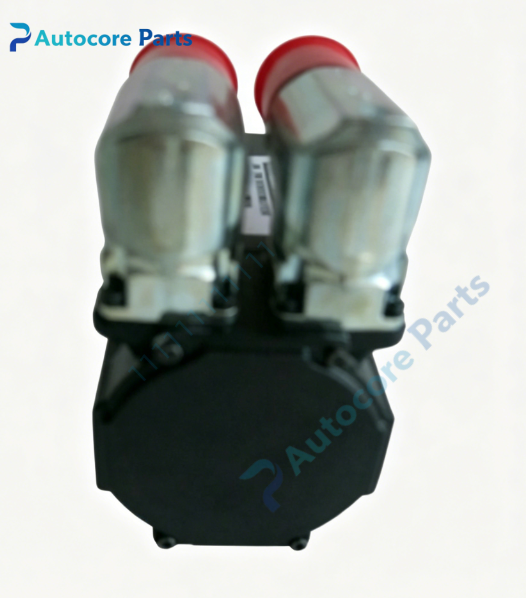

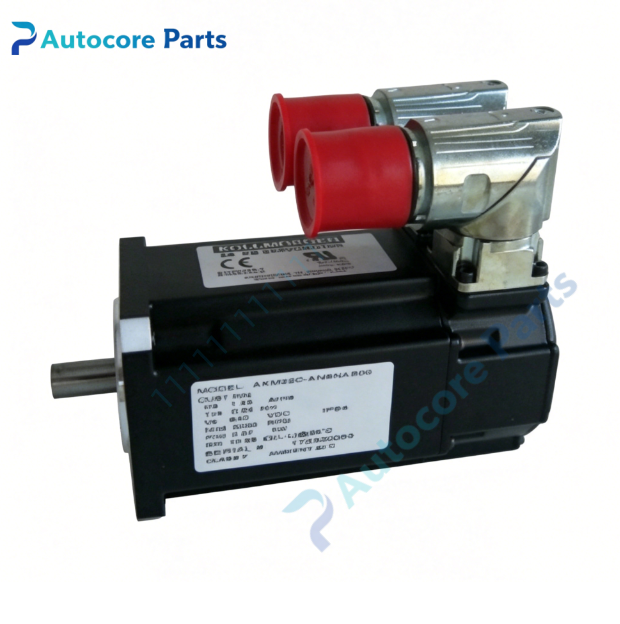

Kollmorgen AKM22C-ANBNAB00 Servo Motor Spare Part

Technical Specifications

Model:AKM22C-ANBNAB00

Brand:Kollmorgen

Part No:AKM22C-ANBNAB00

Product type:Permanent magnet AC synchronous servo motor

Rated power:0.86kW

Rated speed:6000rpm

Continuous torque:1.37Nm

Max DC bus voltage:320V DC

Protection class:IP54

Dimension:132mm70mm80mm

Weight:1.45kg

Feedback interface:SFD smart digital feedback device

Mounting:70mm IEC flange mounting

Operating temperature:0~40℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE,UL

System compatibility

AKM22C-ANBNAB00 belongs to Kollmorgen AKM servo motor family,matched with Kollmorgen AKD series servo drives,widely used in packaging machinery,cutting equipment,material handling and medium-load multi-axis automation systems.This is industrial spare part for equipment overhaul and maintenance.

Function

AKM22C-ANBNAB00 is medium frame AKM synchronous servo motor.It features low cogging torque and smooth running performance.SFD smart feedback supports automatic motor identification when paired with AKD servo drives,high precision position detection.High energy density permanent magnet rotor delivers fast dynamic response,suitable for medium-load high-speed positioning applications,this model has built-in 24V DC holding brake.

Installation

Install AKM22C-ANBNAB00 via IEC flange mounting on machine fixture.Connect motor power cable,SFD feedback cable and brake power cable.Tighten mounting bolts and connector locking rings,separate power and signal wiring,complete shielding grounding before power-on test.

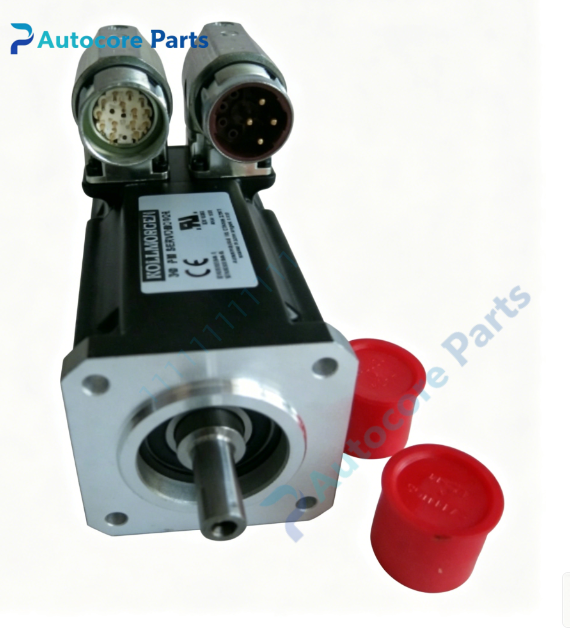

Interface

‑3 phase motor power connector

‑SFD digital feedback connector

‑24V DC brake terminal

‑Shield grounding terminal

Feature

AKM22C-ANBNAB00 Kollmorgen servo motor.Typical faults:winding insulation aging,SFD feedback element damage,bearing wear,brake failure,connector pin oxidation.Test winding resistance,insulation resistance and feedback signal before replacement.

Diagnostic

Motor faults will trigger overload,overcurrent or feedback loss alarm;motor jitter,position tracking error,brake release failure,motor fails to start,intermittent positioning deviation.

Built‑in function:Convert electrical command into precise mechanical torque,realize high accuracy speed and position closed-loop control,as Kollmorgen AKM series medium frame servo motor spare replacement.

Product Brief

AKM22C-ANBNAB00 is Kollmorgen AKM 0.86kW servo motor,70mm flange,SFD smart feedback,with 24V holding brake,compatible with AKD servo drives for medium-load automation equipment maintenance.Confirm feedback type and shaft specification before ordering.ESD protection required during handling and installation.
