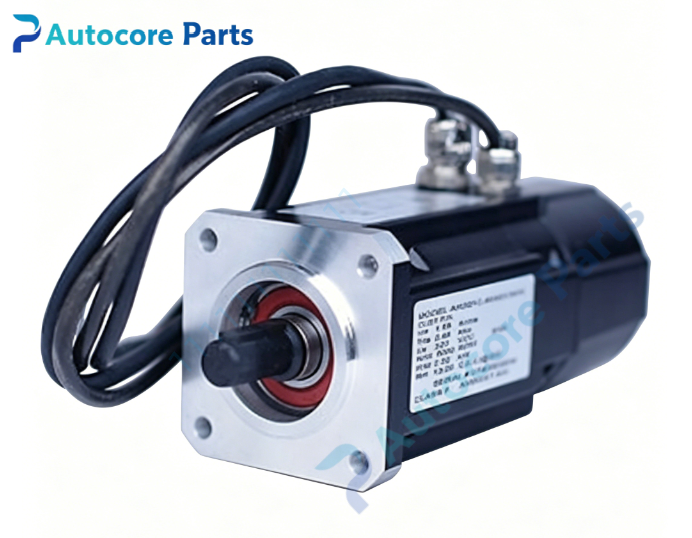

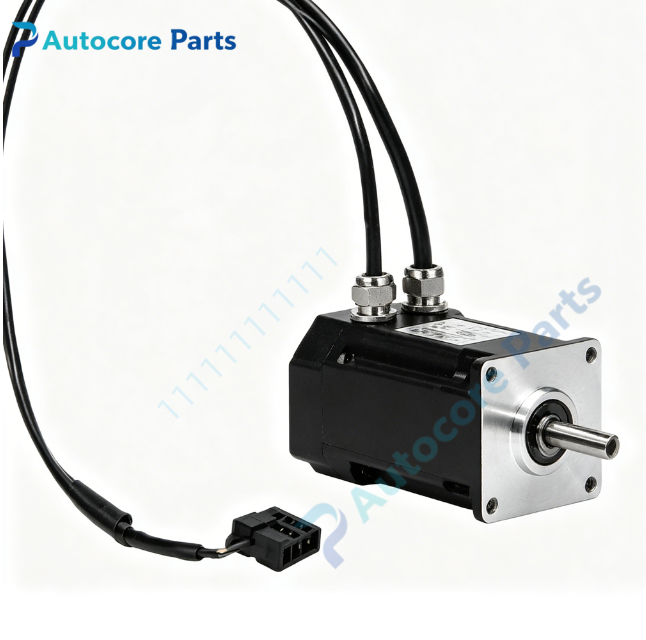

Kollmorgen AKM12C-ANCNR-00 Servo Motor Spare Part

Technical Specifications

Model:AKM12C-ANCNR-00

Brand:Kollmorgen

Part No:AKM12C-ANCNR-00

Product type:Permanent magnet AC synchronous servo motor

Rated power:0.33kW

Rated speed:8000rpm

Continuous torque:0.32Nm

Max DC bus voltage:320V DC

Protection class:IP40

Dimension:110mm50mm60mm

Weight:0.78kg

Feedback interface:SFD smart digital feedback device

Mounting:50mm IEC flange mounting

Operating temperature:0~40℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE,UL

System compatibility

AKM12C-ANCNR-00 belongs to Kollmorgen AKM servo motor family,matched with Kollmorgen AKD series servo drives,widely used in electronic assembly equipment,small cutting platforms,dispensing and labeling light-duty multi-axis automation systems.This is industrial spare part for equipment overhaul and maintenance.

Function

AKM12C-ANCNR-00 is compact small-frame AKM synchronous servo motor.It features low cogging torque and stable running performance.SFD smart feedback supports automatic motor identification when paired with AKD servo drives,high precision position detection.High energy density permanent magnet rotor delivers fast dynamic response,suitable for high-speed light-load precision positioning applications,this model has no built-in holding brake.

Installation

Install AKM12C-ANCNR-00 via IEC flange mounting on machine fixture.Connect motor power cable and SFD feedback cable.Tighten mounting bolts and connector locking rings,separate power and signal wiring,complete shielding grounding before power-on test.

Interface

‑3 phase motor power connector

‑SFD digital feedback connector

‑Shield grounding terminal

Feature

AKM12C-ANCNR-00 Kollmorgen servo motor.Typical faults:winding insulation aging,SFD feedback element damage,bearing wear,connector pin oxidation.Test winding resistance,insulation resistance and feedback signal before replacement.

Diagnostic

Motor faults will trigger overload,overcurrent or feedback loss alarm;motor jitter,position tracking error,motor fails to start,intermittent positioning deviation.

Built‑in function:Convert electrical command into precise mechanical torque,realize high accuracy speed and position closed-loop control,as Kollmorgen AKM series compact servo motor spare replacement.

Product Brief

AKM12C-ANCNR-00 is Kollmorgen AKM 0.33kW compact servo motor,50mm flange,SFD smart feedback,high speed design,compatible with AKD servo drives for light-duty automation equipment maintenance.Confirm feedback type and shaft specification before ordering.ESD protection required during handling and installation.
