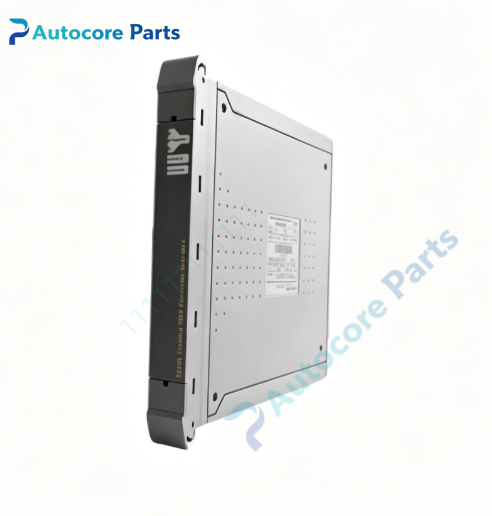

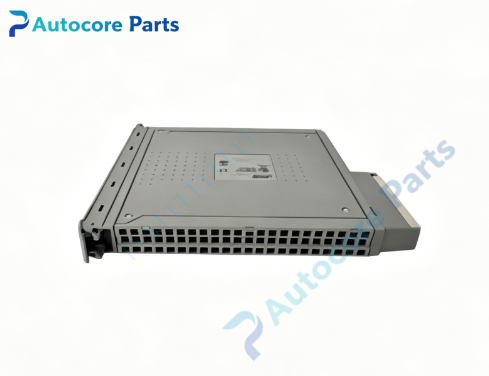

ICS TRIPLEX TC-215-01-6M5 Processor Module

Technical Specifications

Model:TC-215-01-6M5

Brand:ICS TRIPLEX

Product type:Trusted high performance TMR main processor module

System series:Trusted SIS

Bus type:Triple redundant backplane bus

Redundancy:TMR triple modular redundant 2oo3 voting architecture

Processing function:Execute complex safety logic program,signal voting and comprehensive system diagnosis

System supply:18~32VDC

Power dissipation:5.6W

Scan cycle:Configurable high-speed safety logic scan cycle

Memory:Enhanced onboard safety program memory and large data memory

Galvanic isolation:Internal logic isolation design

Operating temperature:-20~+60℃

Relative humidity:5~95% non-condensing

Weight:0.55kg

Certification:CE,TÜV,SIL3

System compatibility

TC-215-01-6M5 belongs to ICS TRIPLEX Trusted safety instrumented system and installs in Trusted rack. It serves as upgraded core safety controller,receives multi-channel field I/O signals,runs complex safety interlock logic and sends emergency trip commands to output modules. Widely deployed in oil & gas,petrochemical and power plants for ESD and fire & gas safety applications.

Function

TC-215-01-6M5 serves as high integrity high-performance TMR main processing unit of Trusted SIS. It supports larger safety program capacity and faster logic execution,completes triple channel data voting and continuous hardware self-test. The module monitors rack health status,I/O channels and all communication links.

Installation

Insert TC-215-01-6M5 vertically into dedicated processor slot of Trusted rack. Configure safety program and verify hardware status via Trusted engineering software. Complete redundancy synchronization after module replacement.

Interface

‑Gold finger connector for triple redundant backplane bus

‑Front panel LED indicators for run,health and fault status

‑Onboard enhanced safety logic processing and comprehensive diagnostic circuit

Circuit feature

Compact rugged PCB design,built-in watchdog and multi-point fault detection circuit. TMR triple path hardware architecture,fully compliant with SIL3 functional safety hardware specifications.

Feature

TC-215-01-6M5 is spare high-performance TMR main processor board for ICS TRIPLEX Trusted SIS. Common faults include program memory failure,backplane communication fault and internal hardware error. Confirm rack firmware compatibility before replacement.

Diagnostic

When internal hardware failure,memory error or rack communication abnormality is detected,the module triggers fault alarm and uploads diagnostic messages to safety workstation.

Built‑in function

Complex safety logic program execution,TMR triple channel data voting,system hardware self-diagnosis and safety trip command calculation for Trusted SIS rack,used as SIS high performance main processor spare replacement.

Product Brief

TC-215-01-6M5 is ICS TRIPLEX SIL3 Trusted high-performance TMR main processor module,the upgraded core control unit of safety instrumented system for complex safety interlock and emergency shutdown logic execution. Verify system firmware compatibility before ordering. ESD anti-static protection must be followed during handling installation.
