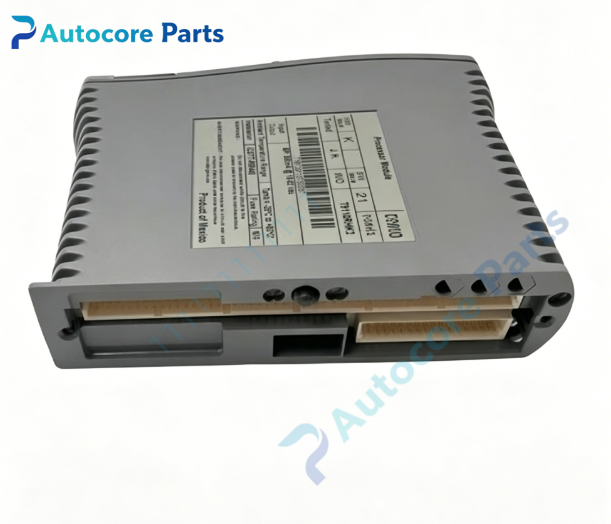

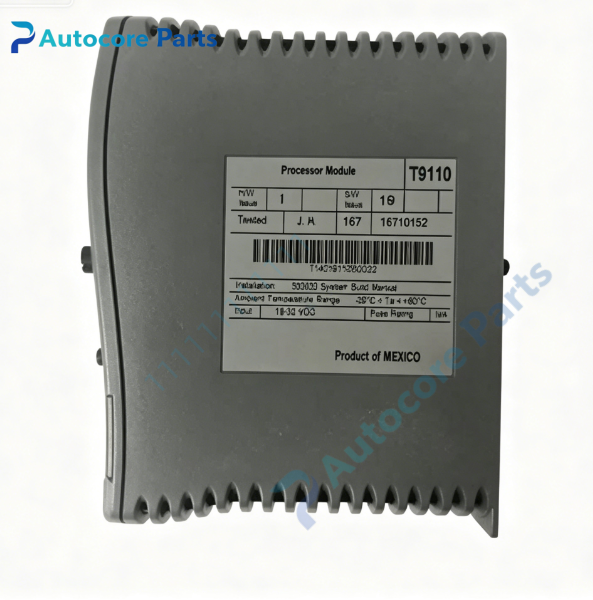

ICS TRIPLEX T9110 Processor Interface Adapter Module

Technical Specifications

Model:T9110

Brand:ICS TRIPLEX

Product type:TMR Processor Interface Adapter (PIA) module

System series:Trusted T8000 SIS

Bus type:Triple redundant TMR inter-module communication bus

Compatible modules:T9100 series main processor,T8300 / T8314 remote expander chassis

Redundancy:TMR triple modular redundant hot swap architecture

Communication:TriBus TMR backplane bus,isolated inter-rack communication

System supply:20~32VDC

Diagnostic:Continuous channel health monitoring and communication fault detection

Operating temperature:-5~+60℃

Relative humidity:5~95% non-condensing

Weight:1.45kg

Certification:CE,TÜV,SIL3

System compatibility

T9110 belongs to ICS TRIPLEX Trusted SIS safety instrumented system and installs in main processor rack. It acts as communication gateway between main TMR processor and remote expander I/O racks,transmitting triplicated safety commands and field signal data between CPU and distributed I/O modules. Widely deployed in oil & gas,petrochemical and power generation plants for ESD,turbine protection and fire & gas safety applications.

Function

T9110 serves as high integrity TMR processor interface unit of Trusted SIS. It implements TMR 2oo3 hardware voting for cross-rack safety data transmission,relays safety logic commands and field I/O status between main rack and remote expansion racks. It continuously monitors communication link integrity and supports hot swap replacement without system shutdown.

Installation

Insert T9110 vertically into dedicated PIA slot of Trusted main rack. Connect redundant inter-rack communication cables to remote expander chassis. Verify bus communication status via Trusted Workbench engineering software.

Interface

‑Gold finger connector for triple redundant backplane bus

‑External communication ports for remote expander rack connection

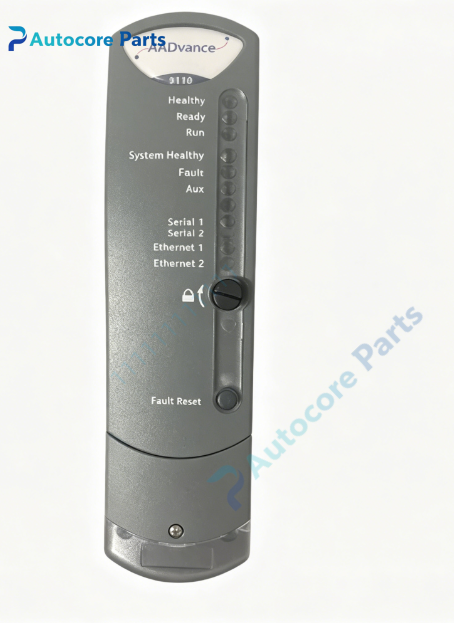

‑LED indicators for run,alarm and communication fault status

‑Onboard TMR data forwarding and communication diagnostic circuit

Circuit feature

Conformal coated multi-layer PCB design,built-in surge and overvoltage protection circuit. Triple slice independent data processing and hardware voting design,fully compliant with SIL3 functional safety hardware specifications.

Feature

T9110 is spare PIA processor interface board for ICS TRIPLEX Trusted SIS. Common faults include inter-rack communication failure,backplane interface fault and signal attenuation. Confirm expander rack firmware and cable compatibility before replacement.

Diagnostic

When communication loss,channel mismatch or onboard hardware failure is detected,the module triggers fault alarm and uploads diagnostic messages to safety workstation.

Built‑in function

TMR safety data forwarding,main rack to remote expander interconnection,communication link health monitoring and TMR signal voting for Trusted SIS,used as SIS PIA spare replacement.

Product Brief

T9110 is ICS TRIPLEX Trusted SIL3 TMR processor interface adapter module,hot swappable for Trusted main rack,used to connect main processor with remote I/O expander racks. Verify system firmware compatibility before ordering. ESD anti-static protection must be followed during handling installation.
