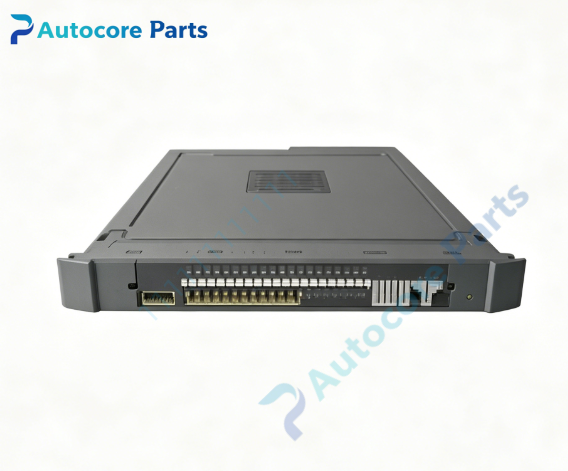

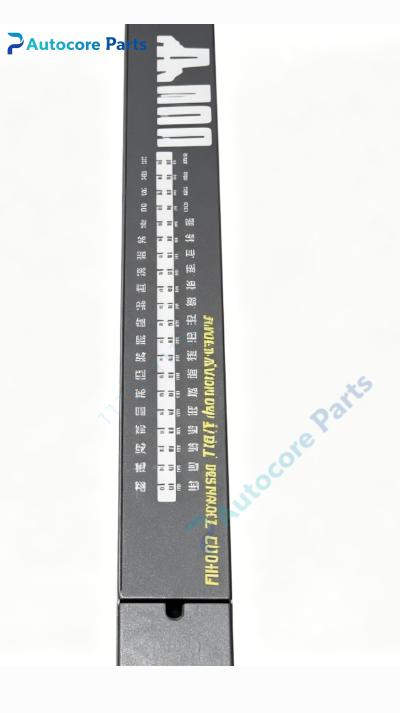

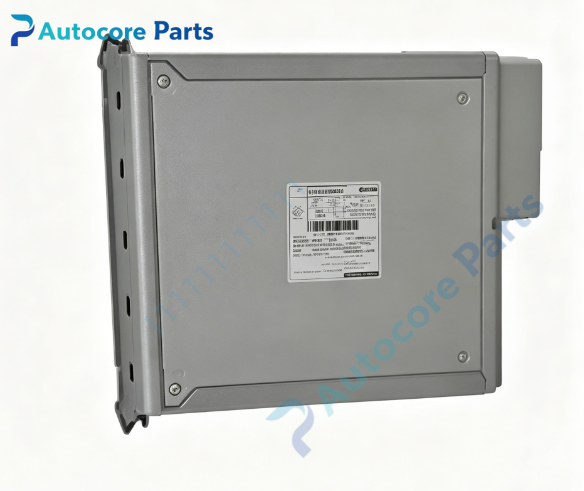

ICS TRIPLEX T8846 SIFTA Speed Input Field Termination Assembly

Technical Specifications

Model:T8846

Brand:ICS TRIPLEX

Product type:SIFTA speed input field termination assembly

System series:Trusted T8000 SIS

Compatible module:T8442 speed monitor module

Mounting:DIN rail mounting

Input channels:9 speed input channels,divided into 3 independent groups (3 channels per group)

Sensor compatibility:Magnetic passive speed sensors,open collector and totem-pole active speed transducers

Isolation:Galvanic isolation between each signal group

Protection:Field replaceable fuses for each channel group

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:0.70kg

Certification:CE,TÜV,SIL3

System compatibility

T8846 belongs to ICS TRIPLEX Trusted SIS safety instrumented system,mounted on DIN rail outside the main rack. It serves as field signal conditioning and termination unit for T8442 speed monitor module,receiving raw pulse signals from field speed transducers and transmitting conditioned pulse signals to T8442. Widely deployed in oil & gas,petrochemical and power plants for turbine and compressor overspeed safety protection.

Function

T8846 acts as high integrity speed signal conditioning and termination unit for Trusted TMR speed monitoring system. It provides signal filtering,overvoltage protection and isolated interface for 3 sets of rotating machinery speed sensors. Built-in fuses protect field wiring and speed transducer circuits. It supports connection of both passive magnetic pickups and active pulse speed sensors.

Installation

Mount T8846 on standard DIN rail in control cabinet. Wire field speed transducers to T8846 terminal blocks,connect signal cables from T8846 to T8442 speed monitor module. Verify pulse signal quality via Trusted Workbench engineering software.

Interface

‑Field terminal block for speed transducer wiring

‑Signal output terminals to T8442 speed monitor module

‑Individual replaceable fuse for each signal group

‑Onboard signal conditioning and surge protection circuit

Circuit feature

Passive signal conditioning circuit,built-in surge and overvoltage protection. Isolated group design reduces cross-talk interference,fully compliant with SIL3 functional safety hardware specifications.

Feature

T8846 is spare SIFTA field termination assembly for ICS TRIPLEX Trusted SIS speed monitoring system. Common faults include blown fuses,sensor wiring open circuit and signal attenuation. Confirm speed sensor type and wiring compatibility before replacement.

Diagnostic

When fuse failure,signal loss or wiring fault is detected,corresponding fault alarm will be displayed on T8442 module and uploaded to safety workstation.

Built‑in function

Speed transducer signal conditioning,group isolated termination,overcurrent fuse protection and pulse signal transmission for T8442 speed monitor module,used as SIS speed monitoring FTA spare replacement.

Product Brief

T8846 is ICS TRIPLEX Trusted SIL3 SIFTA speed input field termination assembly,DIN rail mounted,matched with T8442 speed monitor module for turbine and compressor overspeed protection. Verify system firmware compatibility before ordering. ESD anti-static protection must be followed during handling installation.
