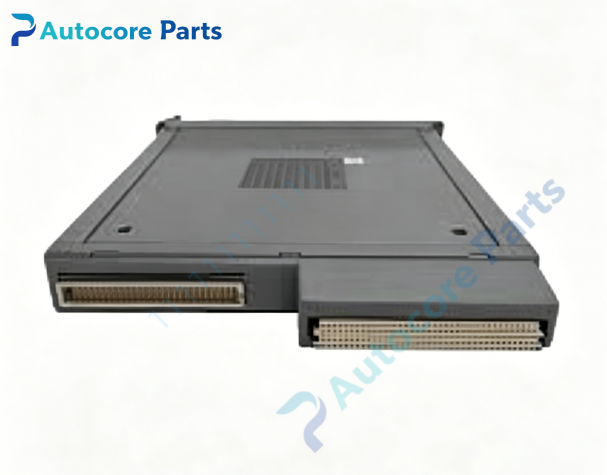

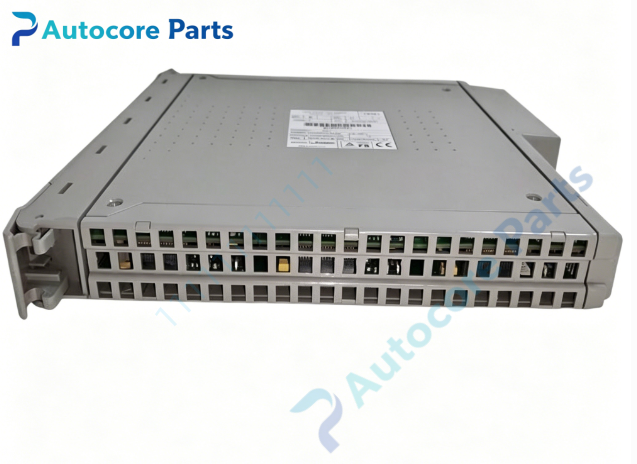

ICS TRIPLEX T8424C Digital Input Module

Technical Specifications

Model:T8424C

Brand:ICS TRIPLEX

Product type:TMR 16-channel AC digital input module

System series:Trusted T8000 SIS

Bus type:Triple redundant parallel backplane bus

Compatible modules:T8300 / T8314 expander chassis,T8310 expander processor,T8311 expander interface

Redundancy:TMR triple modular redundant hot swap architecture

Field input:120VAC,16 channels

Input type:AC field switches and safety contact devices

Galvanic isolation:2500V

Coating:Conformal coated PCB for high humidity,corrosive and dusty sites

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:0.52kg

Certification:CE,TÜV,SIL3

System compatibility

T8424C belongs to ICS TRIPLEX Trusted SIS safety instrumented system and installs inside T8300 or T8314 expander rack. It collects 120VAC discrete status signals from field safety switches and contact sensors,transmits triplicated validated input data to expander processor. The conformal coating protects PCB circuits from moisture,chemical vapour and dust,suitable for offshore and heavy industrial sites. Widely deployed in oil & gas,petrochemical and chemical plants for ESD emergency shutdown and fire & gas safety protection.

Function

T8424C serves as high integrity 16-channel 120VAC digital input unit of Trusted TMR SIS. It samples field AC discrete signals and adopts TMR 2oo3 hardware voting logic to judge real input state. Each channel continuously monitors open circuit and short circuit wiring faults. It supports hot swap replacement without shutting down the safety expansion rack.

Installation

Insert T8424C vertically into dedicated I/O slot of T8300/T8314 expander chassis. Wire field AC signal cables to the corresponding terminal assembly. Verify channel health and fault alarms via Trusted Workbench engineering software.

Interface

‑Gold finger connector for triple redundant backplane bus

‑Field termination interface for 16-channel 120VAC digital input wiring

‑Front panel LED indicators for per-channel run,alarm and fault status

‑Onboard TMR sampling and channel diagnostic circuit

Circuit feature

Conformal coated multi-layer PCB design,built-in surge and overvoltage protection circuit. Triple slice independent signal acquisition and hardware voting design,fully compliant with SIL3 functional safety hardware specifications.

Feature

T8424C is spare conformal coated 16-channel 120VAC digital input board for ICS TRIPLEX Trusted SIS. Common faults include input channel burnout,field wiring short circuit and backplane contact fault. Confirm field AC voltage and chassis compatibility before replacement.

Diagnostic

When channel open circuit,short circuit or onboard hardware failure is detected,the module triggers fault alarm and uploads diagnostic messages to safety workstation.

Built‑in function

120VAC field discrete signal acquisition,per-channel line fault monitoring and TMR signal voting for Trusted TMR expansion rack,used as SIS AC digital input spare replacement.

Product Brief

T8424C is ICS TRIPLEX Trusted SIL3 TMR conformal coated 16-channel 120VAC digital input module,hot swappable for T8300/T8314 expander chassis. Verify system firmware compatibility before ordering. ESD anti-static protection must be followed during handling installation.
