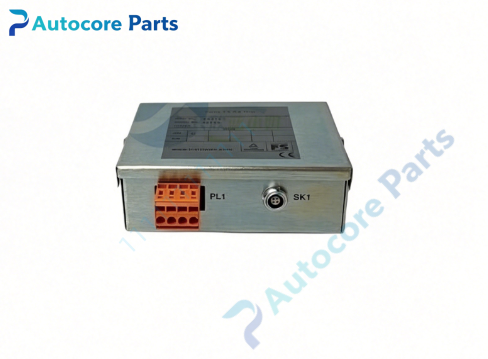

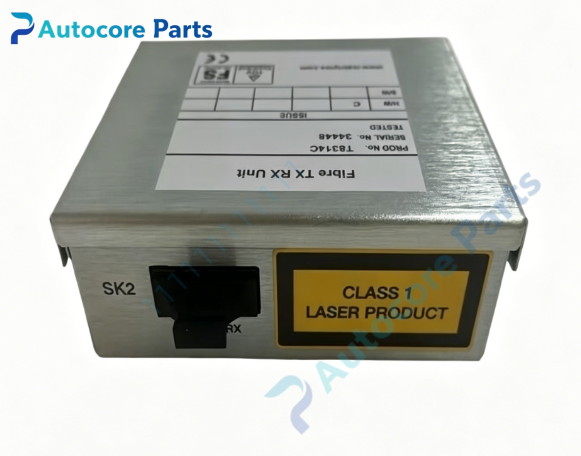

ICS TRIPLEX T8314C Fiber TX/RX Unit

Technical Specifications

Model:T8314C

Brand:ICS TRIPLEX

Product type:Fiber transmitter receiver unit

System series:Trusted T8000 SIS

Bus type:Converts differential copper expander bus to single-mode fiber signal

Compatible modules:T8310 expander processor,T8311 expander interface,T8300/T8314 expander chassis,TC-302 / TC-303 connecting cables

Redundancy:TMR triple redundant optical link architecture

Power supply:Dual 18~32VDC diode ORed input

Max transmission distance:10km,single mode fiber

Mounting:DIN rail installation

Power consumption:1.7W max

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:0.65kg

Certification:CE,TÜV,SIL3

System compatibility

This fiber transceiver hardware belongs to ICS TRIPLEX Trusted SIS safety instrumented system. It extends the Trusted expander bus over long-distance single-mode fiber,connecting main controller chassis and remote T8314 expander rack. It eliminates electromagnetic interference on long copper cables,widely deployed in oil & gas,petrochemical and chemical plants for ESD emergency shutdown and fire & gas safety protection.

Function

T8314C serves as high integrity fiber optical conversion unit of Trusted TMR SIS. It converts differential copper expander bus electrical signals into optical signals for long-distance transmission and converts received optical signals back to electrical signals. It continuously monitors fiber link health and signal integrity. Three independent TMR optical channels ensure safety function remains available if one channel fails.

Installation

Mount T8314C on standard DIN rail. Use TC-302 or TC-303 cable to connect between expander interface and T8314C transceiver. Plug single-mode fiber cable into LC optical port. Check fiber link status and fault alarms via Trusted Workbench.

Interface

‑LC optical port for single-mode fiber connection

‑Terminal block for dual 24VDC power input

‑Signal connector for TC-302 / TC-303 cable

‑LED indicators for link active,alarm and fault status

Circuit feature

Conformal coated PCB design,built-in surge and ESD protection. Independent three-channel optical transmission architecture,fully compliant with SIL3 functional safety hardware specifications.

Feature

T8314C is spare fiber TX/RX transceiver for ICS TRIPLEX Trusted SIS. Common faults include fiber port contamination,link attenuation and power input failure. Confirm fiber type and cable compatibility before installation.

Diagnostic

When fiber disconnection,signal attenuation or hardware breakdown is detected,the unit triggers fault alarm and uploads diagnostic messages to safety workstation.

Built‑in function

Copper to fiber signal conversion,long-distance expander bus extension and optical link health monitoring for Trusted TMR remote I/O system,used as SIS fiber transceiver spare replacement.

Product Brief

T8314C is ICS TRIPLEX Trusted SIL3 fiber TX/RX unit,DIN rail mounted,supports up to 10km single-mode fiber link. Verify cable and chassis compatibility before ordering. ESD anti-static protection must be followed during handling installation.
