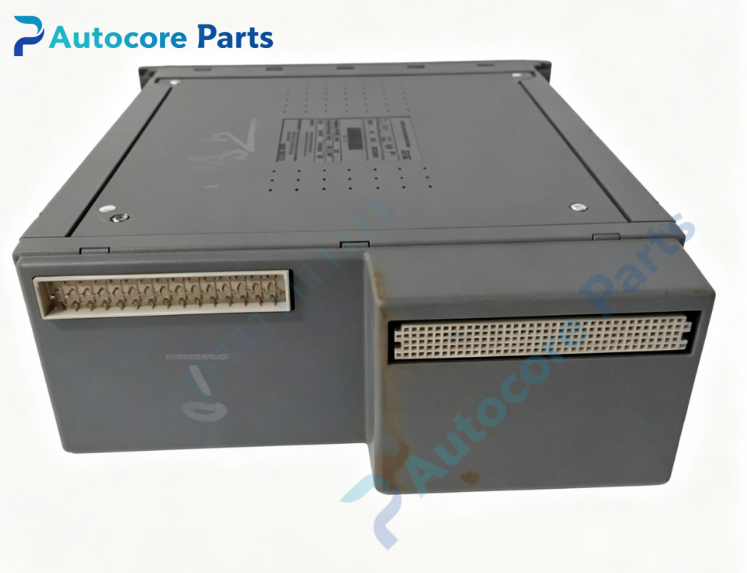

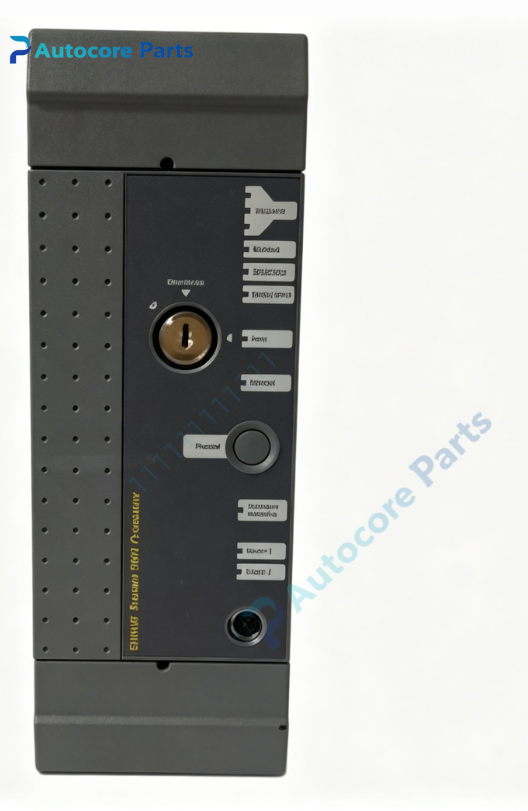

ICS TRIPLEX T8110C Processor Module

Technical Specifications

Model:T8110C

Brand:ICS TRIPLEX

Product type:TMR processor module

System series:Trusted T8000 SIS

Bus type:Triple redundant parallel backplane bus

Compatible modules:Trusted I/O modules,T8100 chassis,backplane base units,redundant power supply,communication modules

Redundancy:TMR triple modular redundant hot swap architecture

Power bus:20~32V DC field power supply

Processor clock:200MHz

SOE buffer:2000 events

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:2.94kg

Certification:CE,TÜV,SIL3

System compatibility

This processor hardware belongs to ICS TRIPLEX Trusted SIS safety instrumented system and is installed inside T8100 Trusted rack cabinet. It executes safety logic programs,receives input signals from field sensors and outputs safety commands to actuators. It communicates with system engineering workstation,widely deployed in oil & gas,petrochemical and chemical plants for ESD emergency shutdown and fire & gas safety protection.

Function

T8110C serves as the high integrity upgraded main processing unit of Trusted TMR SIS. It runs IEC 61131-3 safety logic,processes all I/O data from rack modules with faster calculation speed. It continuously runs self-diagnosis to detect internal hardware fault,bus communication error and I/O channel abnormality in real time. Its TMR voting design ensures valid safety decisions even with single component failure,built-in IRIG-B time synchronization and expanded SOE event recording function.

Installation

Insert the module vertically into dedicated processor slot of T8100 Trusted SIS rack. Complete backplane bus connection,verify processor running status and fault diagnosis via Trusted Workbench engineering software.

Interface

‑Gold finger connector for triple redundant backplane bus communication

‑RS232 serial diagnostic port for programming and monitoring

‑IRIG-B time synchronization interface

‑Onboard TMR voting and high-speed logic processing circuit

‑LED indicators for processor running,alarm and fault prompt

Circuit feature

Conformal coated multi-layer PCB design,built-in surge and overvoltage protection circuit. Triple channel hardware voting and fault tolerant design,fully compliant with SIL3 functional safety hardware specifications.

Feature

T8110C is a spare upgraded processor board for ICS TRIPLEX Trusted SIS system. Common faults include processing core damage,memory chip failure and backplane communication fault. Confirm T8100 rack slot definition and firmware compatibility before replacement.

Diagnostic

When internal hardware failure,bus communication error or breakdown is detected,the module will trigger fault alarm and upload diagnostic messages to safety workstation.

Built‑in function

Safety logic execution,high-speed signal processing,expanded SOE event recording and system hardware self-diagnosis for Trusted TMR safety rack,used as SIS main processor spare replacement.

Product Brief

T8110C is ICS TRIPLEX Trusted SIL3 upgraded TMR processor module,supporting TMR triple modular redundant hot swap architecture,compatible with T8100 chassis. Verify rack compatibility before ordering. ESD anti-static protection must be followed during handling installation.
