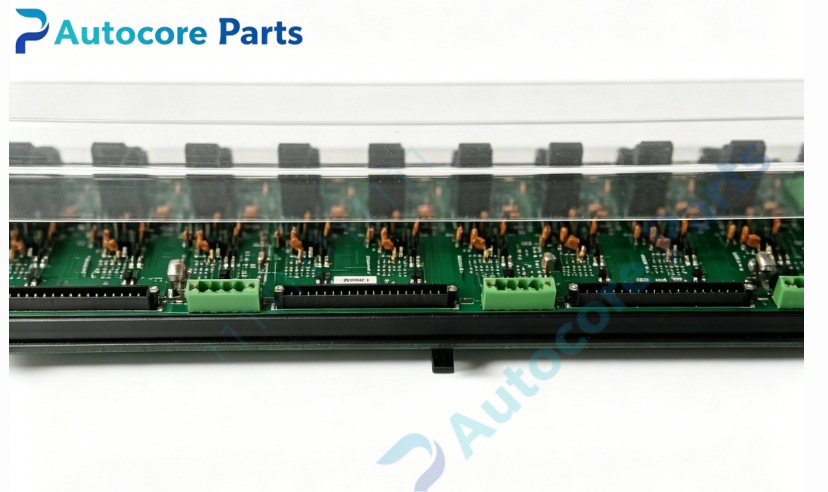

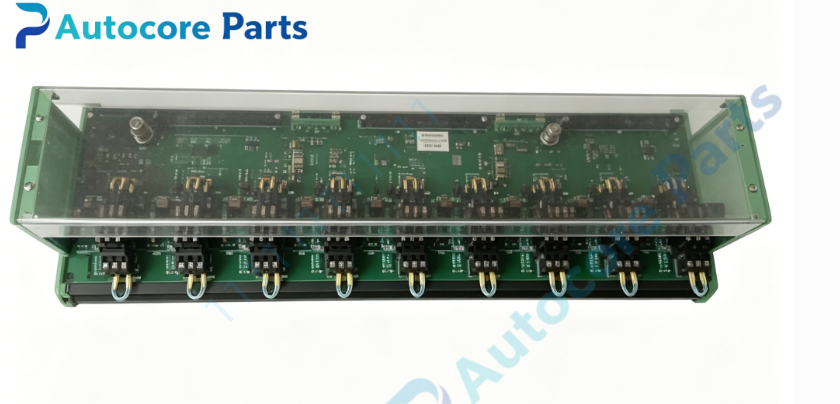

ICS TRIPLEX PP49283-8 Speed Monitor FTA

Technical Specifications

Model:PP49283-8

Brand:ICS TRIPLEX

Product type:Speed monitor input FTA field terminal assembly

System series:Trusted T8000 SIS

Bus type:Triple redundant parallel backplane bus

Compatible modules:Trusted speed monitor processor,backplane base units,redundant power supply modules

Redundancy:TMR triple modular redundant hot swap architecture

Power bus:5V DC,24V DC power supply

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:3.92kg

Certification:CE,TÜV,SIL3

System compatibility

This FTA hardware belongs to ICS TRIPLEX Trusted SIS safety instrumented system and is installed inside Trusted rack cabinet. It receives pulse signals from field tachometer speed sensors,conditions and filters speed feedback signals then transmits validated pulse data to TMR processor module for overspeed or underspeed safety protection. It communicates with system engineering workstation,widely deployed in oil & gas,petrochemical and chemical plants for turbine and compressor overspeed safety interlock protection.

Function

PP49283-8 serves as the field signal conditioning terminal unit of Trusted TMR speed monitoring system. It acquires pulse signals from speed pickups,performs signal shaping,surge suppression and signal isolation. It continuously runs per-channel self-diagnosis to detect open circuit,short circuit and input wiring fault in real time.

Installation

Mount the FTA vertically into dedicated I/O slot of Trusted SIS rack. Complete field speed transducer wiring and backplane bus connection,verify pulse signal acquisition and fault diagnosis via Trusted Workbench engineering software.

Interface

‑Gold finger connector for triple redundant backplane bus communication

‑Field terminal block for tachometer speed sensor connection

‑Onboard pulse signal conditioning and surge protection circuit

‑LED indicators for channel running,alarm and fault prompt

Circuit feature

Conformal coated multi-layer PCB design,built-in surge and overvoltage protection circuit. Signal isolation and noise filtering design,fully compliant with SIL3 functional safety hardware specifications.

Feature

PP49283-8 is a spare speed monitor FTA terminal board for ICS TRIPLEX Trusted SIS system. Common faults include signal conditioning circuit damage,noise filter component failure and field sensor wiring fault. Confirm rack slot definition and firmware compatibility before replacement.

Diagnostic

When channel open circuit,short circuit or signal loss is detected,the module will trigger fault alarm and upload diagnostic messages to safety workstation.

Built‑in function

Field tachometer pulse signal conditioning and channel hardware self-diagnosis for Trusted TMR safety rack,used as SIS speed monitor FTA spare replacement.

Product Brief

PP49283-8 is ICS TRIPLEX Trusted SIL3 speed monitor input FTA,supporting TMR triple modular redundant architecture. Verify rack compatibility before ordering. ESD anti-static protection must be followed during handling installation.
