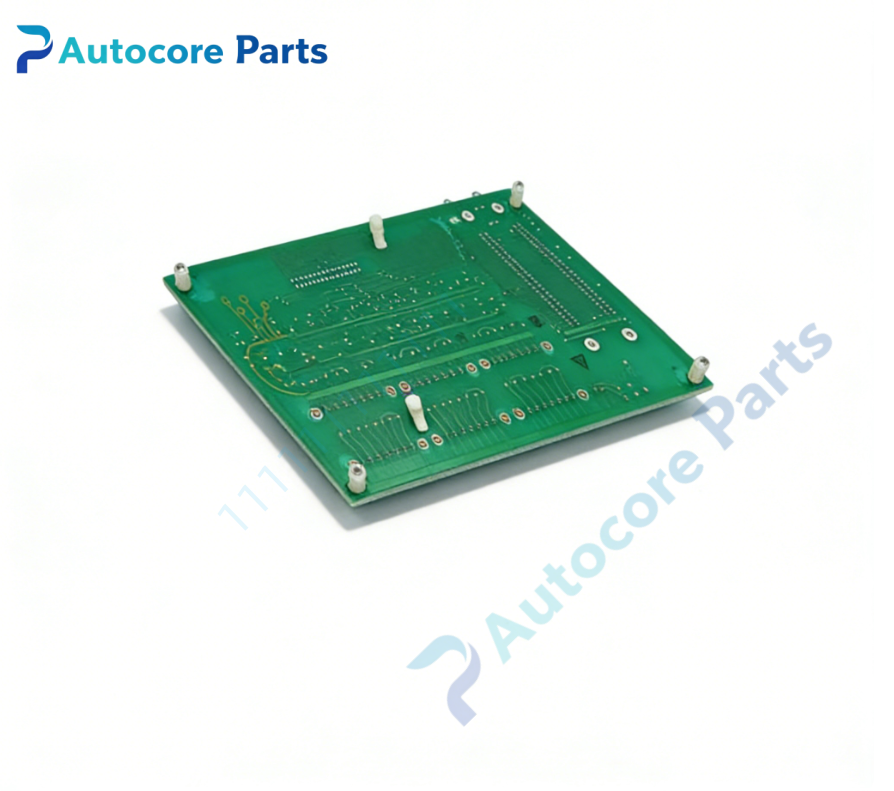

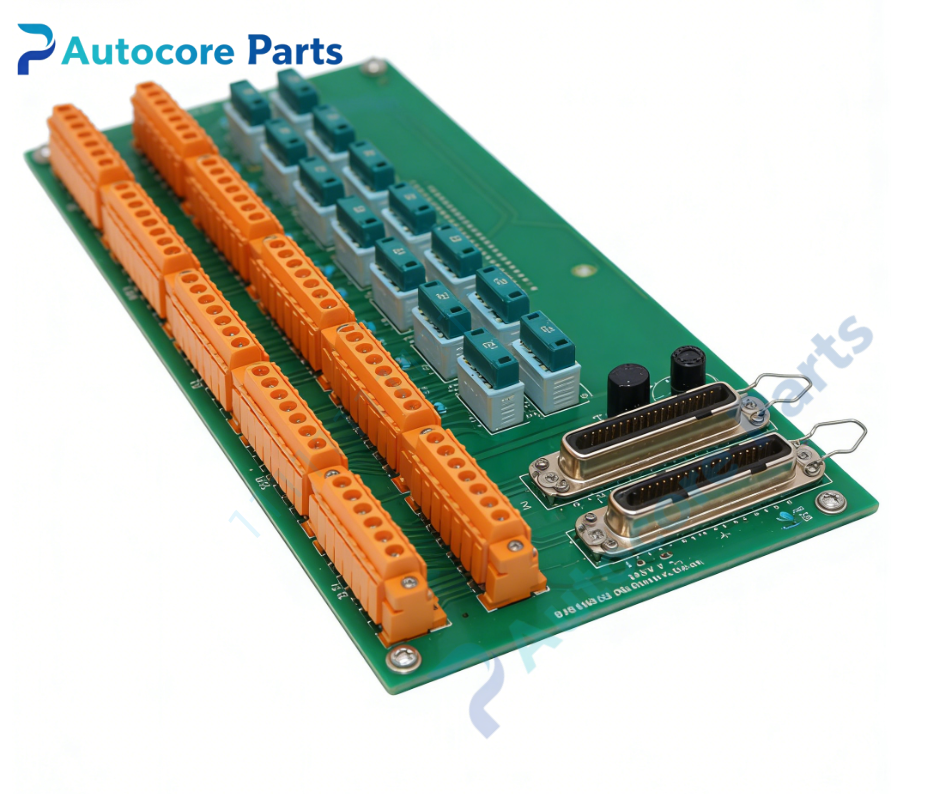

Honeywell 51204164125 Digital Input Module

Technical Specifications

Model:51204164125

Brand:Honeywell

Product type:FSC digital input module

System series:FSC Fail Safe Controller SIS

Bus type:Parallel backplane system bus

Compatible modules:FSC processor boards,analog output & digital output boards,backplane assembly,redundant power supply

Redundancy:Supports DMR dual modular redundant / QMR quadruple modular redundant hot swap configuration

Power bus:5V DC,24V DC power supply

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:4.96kg

Certification:CE,TÜV,SIL3

System compatibility

This input hardware belongs to Honeywell FSC safety instrumented system and is installed inside FSC rack cabinet. It collects digital on/off signals from field limit switches,fire and gas detectors and safety sensors. It transmits filtered digital status data to FSC processor module for safety interlock logic judgment. It communicates with Experion PKS DCS platform,widely deployed in oil & gas,petrochemical and chemical plants for ESD emergency shutdown and fire & gas safety protection.

Function

51204164125 serves as the digital signal acquisition unit of FSC SIS. It receives discrete field digital signals,performs electrical isolation and signal filtering. It continuously runs per-channel self-diagnosis to detect open circuit,short circuit and input circuit hardware failure in real time.

Installation

Insert the module vertically into dedicated I/O slot of FSC rack. Complete field sensor wiring and backplane bus connection,verify channel status acquisition and fault diagnosis via Honeywell FSC engineering software.

Interface

‑Gold finger connector for backplane bus communication

‑Field digital signal input terminal block

‑Onboard signal isolation and input detection circuit

‑LED indicators for channel running,alarm and fault prompt

Circuit feature

Conformal coated multi-layer PCB design,built-in surge and overvoltage protection circuit. Independent channel monitoring design,fully compliant with SIL3 functional safety hardware specifications.

Feature

51204164125 is a spare digital input board for Honeywell FSC SIS system. Common faults include input circuit damage,signal detection chip failure and field wiring fault. Confirm rack I/O slot definition and firmware compatibility before replacement.

Diagnostic

When channel open circuit,short circuit or hardware breakdown is detected,the module will trigger fault alarm and upload diagnostic messages to safety workstation.

Built‑in function

Field digital switch signal acquisition and channel hardware self-diagnosis for FSC safety rack,used as SIS digital input spare replacement.

Product Brief

51204164125 is Honeywell FSC SIL3 digital input module,supporting DMR/QMR redundant architecture. Verify rack compatibility before ordering. ESD anti-static protection must be followed during handling installation.
