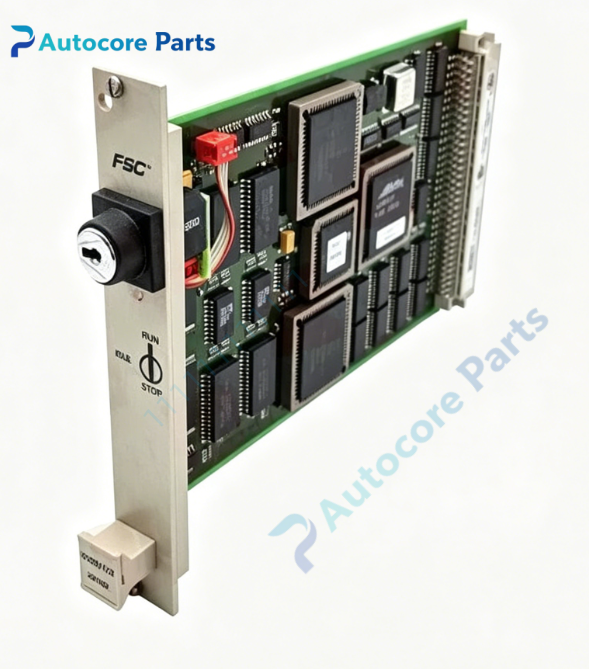

Honeywell 1002012 FSC Safety Control Module

Technical Specifications

Model:1002012

Brand:Honeywell

System series:FSC Safety Instrumented System

Architecture:Fail-safe safety design

Safety standard:IEC61508 SIL2/SIL3 applicable

Power supply:24V DC,20.4~26.4V DC

Power consumption:Max 12W

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:0.38kg

Certification:CE,TÜV

System compatibility

Designed for Honeywell FSC SIS safety instrumented system,integrated into FSC safety rack,cooperates with FSC series I/O modules,widely applied in petrochemical,oil & gas,chemical refining ESD emergency shutdown and fire & gas safety interlock system.

Function

1002012 is Honeywell FSC series safety control module.It adopts fail-safe safety architecture to execute safety interlock logic,emergency shutdown sequence and safety signal processing.The module continuously runs self-diagnosis to detect internal hardware faults,automatically switch to safe state once failure occurs.It communicates with other FSC modules via rack backplane bus,realizes signal collection and safety logic calculation for field safety instruments.

Installation

Install on FSC rack backplane slot,wire field safety signals to module terminals,configure safety logic via Honeywell FSC engineering software.Hot swap supported under redundant configuration.

Interface

‑Field signal wiring terminals

‑Internal rack backplane bus connector

‑LED indicators for run,alarm and fault status

Circuit feature

Fail-safe circuit design,comprehensive hardware self-diagnosis,galvanic isolation,high diagnostic coverage,strong anti-electromagnetic interference,meets safety critical industrial continuous operation requirements.

Feature

1002012 belongs to Honeywell FSC SIS safety spare parts series.Common faults:terminal poor contact,internal circuit aging,backplane connector damage.Confirm firmware and rack compatibility before replacement.

Diagnostic

Hardware failure,signal line fault,communication abnormality triggers alarm and upload diagnostic information to safety workstation.

Built‑in function

Safety interlock and emergency shutdown signal processing for FSC safety instrumented system,used for industrial SIS spare replacement.

Product Brief

1002012 is Honeywell FSC SIS fail-safe safety control module for ESD safety interlock application.Check FSC rack type and system firmware compatibility before ordering.ESD anti-static protection required during installation.
